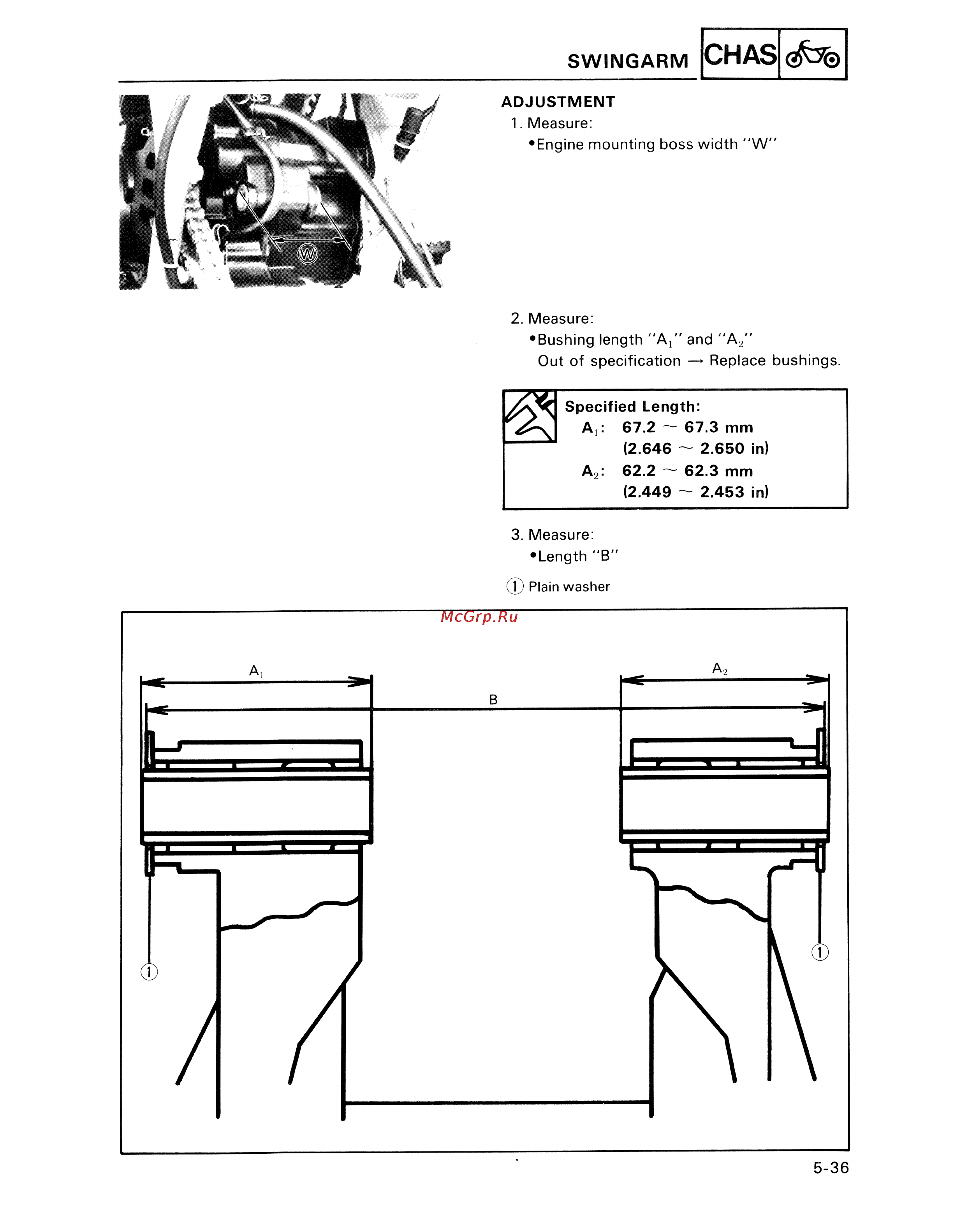

CHASg j SWINGARM ADJUSTMENT 1 Measure Engine mounting boss width W 2 Measure Bushing length A and A2 Out of specification Replace bushings Specified Length 67 2 67 3 mm 2 646 2 650 in A2 62 2 62 3 mm 2 449 2 453 in 3 Measure Length B Plain washer 5 36
