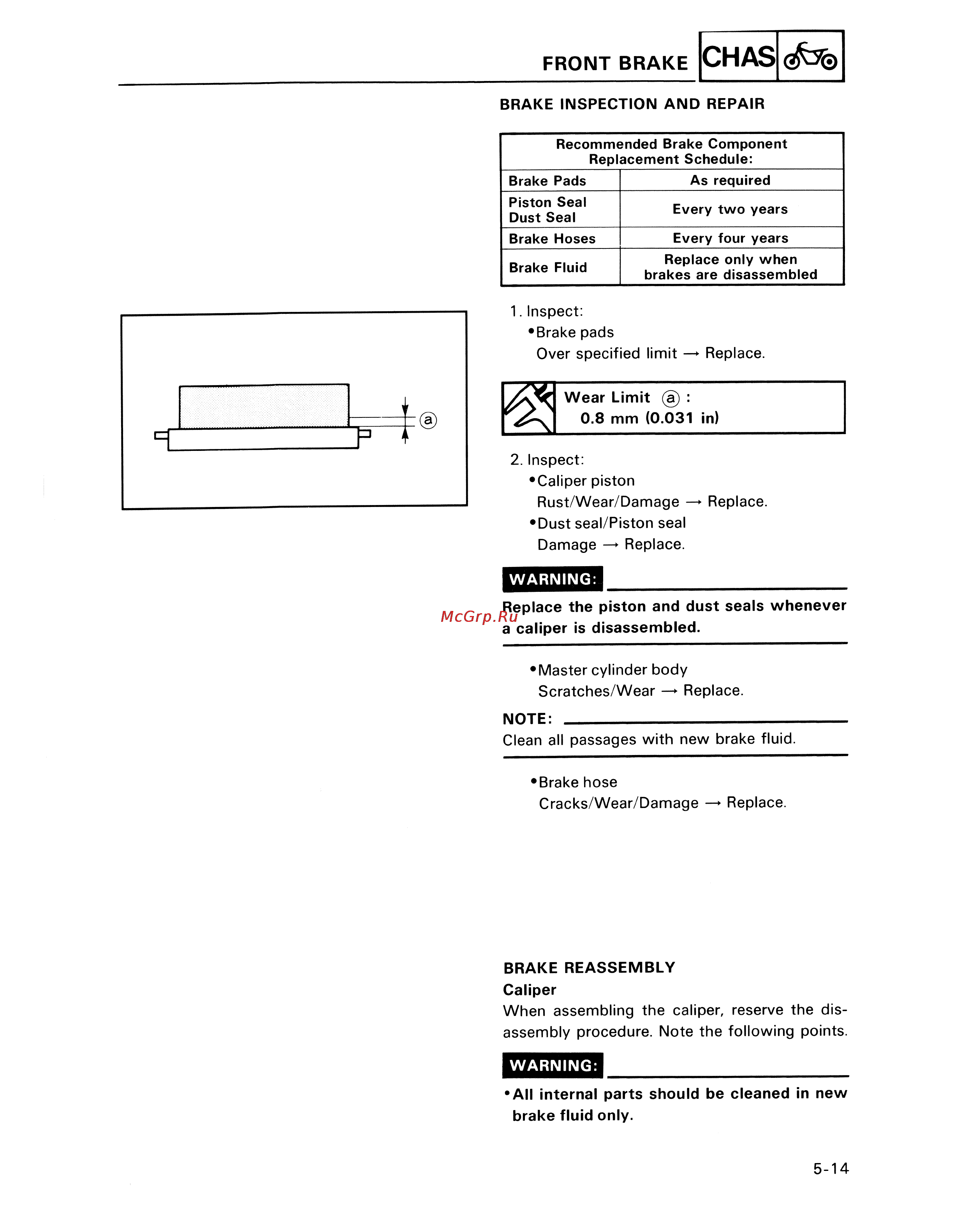

CHAS FRONT BRAKE BRAKE INSPECTION AND REPAIR Recommended Brake Component Replacement Schedule Brake Pads As required Piston Seal Dust Seal Every two years Brake Hoses Every four years Brake Fluid Replace only when brakes are disassembled 1 Inspect Brake pads Over specified limit Replace Wear Limit a 0 8 mm 0 031 in 2 Inspect Caliper piston Rust Wear Damage Replace Dust seal Piston seal Damage Replace WARNING Replace the piston and dust seals whenever a caliper is disassembled Master cylinder body Scratches Wear Replace NOTE Clean all passages with new brake fluid Brake hose Cracks Wear Damage Replace BRAKE REASSEMBLY Caliper When assembling the caliper reserve the dis assembly procedure Note the following points WARNING All internal parts should be cleaned in new brake fluid only 5 14
