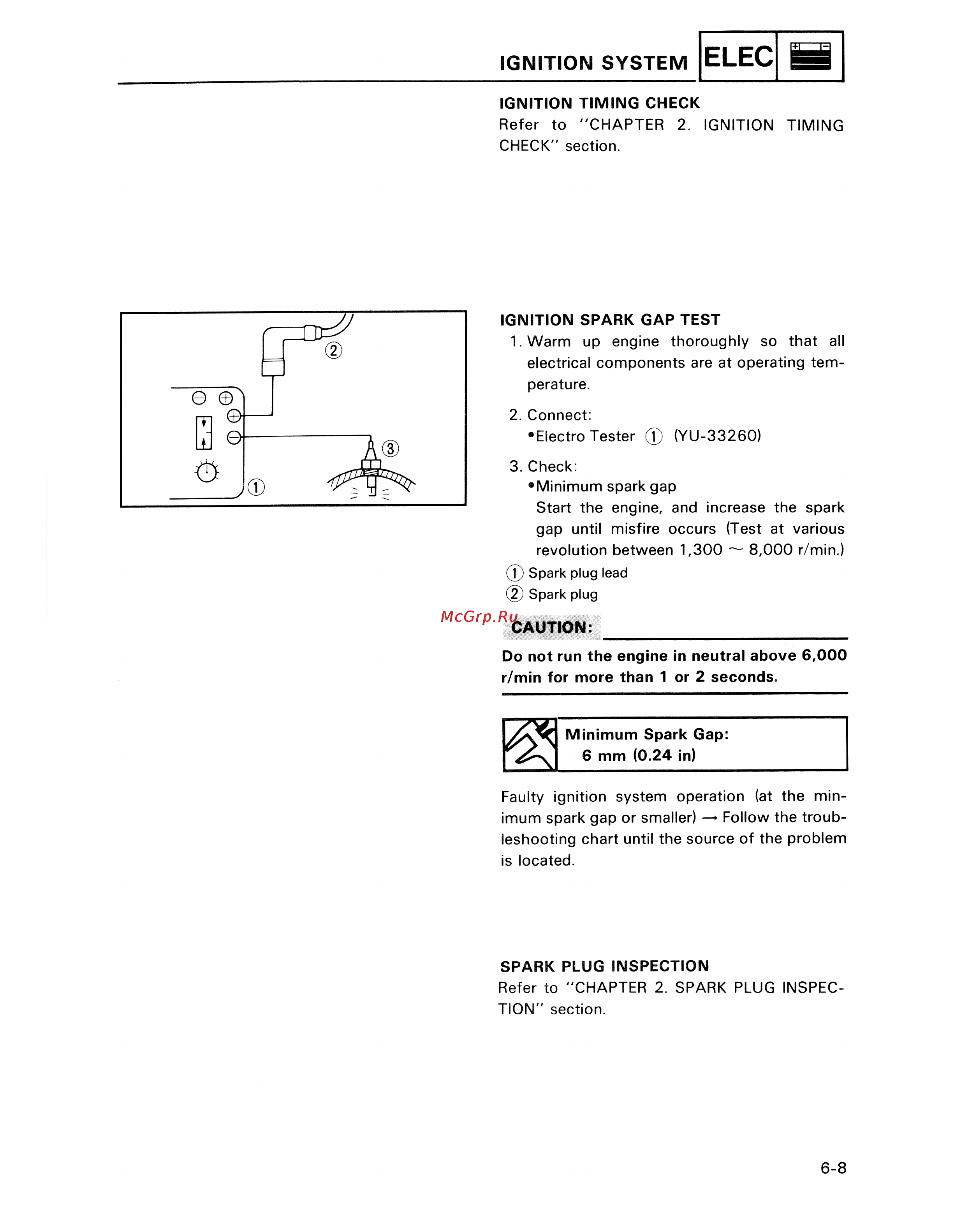

IGNITION SYSTEM ELEC IGNITION TIMING CHECK Refer to CHAPTER CHECK section 2 IGNITION TIMING IGNITION SPARK GAP TEST I Warm up engine thoroughly so that all electrical components are at operating tem perature 2 Connect Electro Tester T YU 33260 3 Check Minimum spark gap Start the engine and increase the spark gap until misfire occurs Test at various revolution between 1 300 8 000 r min T Spark plug lead 2 Spark plug CAUTION _____________________________ Do not run the engine in neutral above 6 000 r min for more than 1 or 2 seconds Minimum Spark 6 mm 0 24 in Faulty ignition system Gap operation at the min imum spark gap or smaller Follow the troub leshooting chart until the source of the problem is located SPARK PLUG INSPECTION Refer to CHAPTER 2 SPARK PLUG INSPEC TION section 6 8
