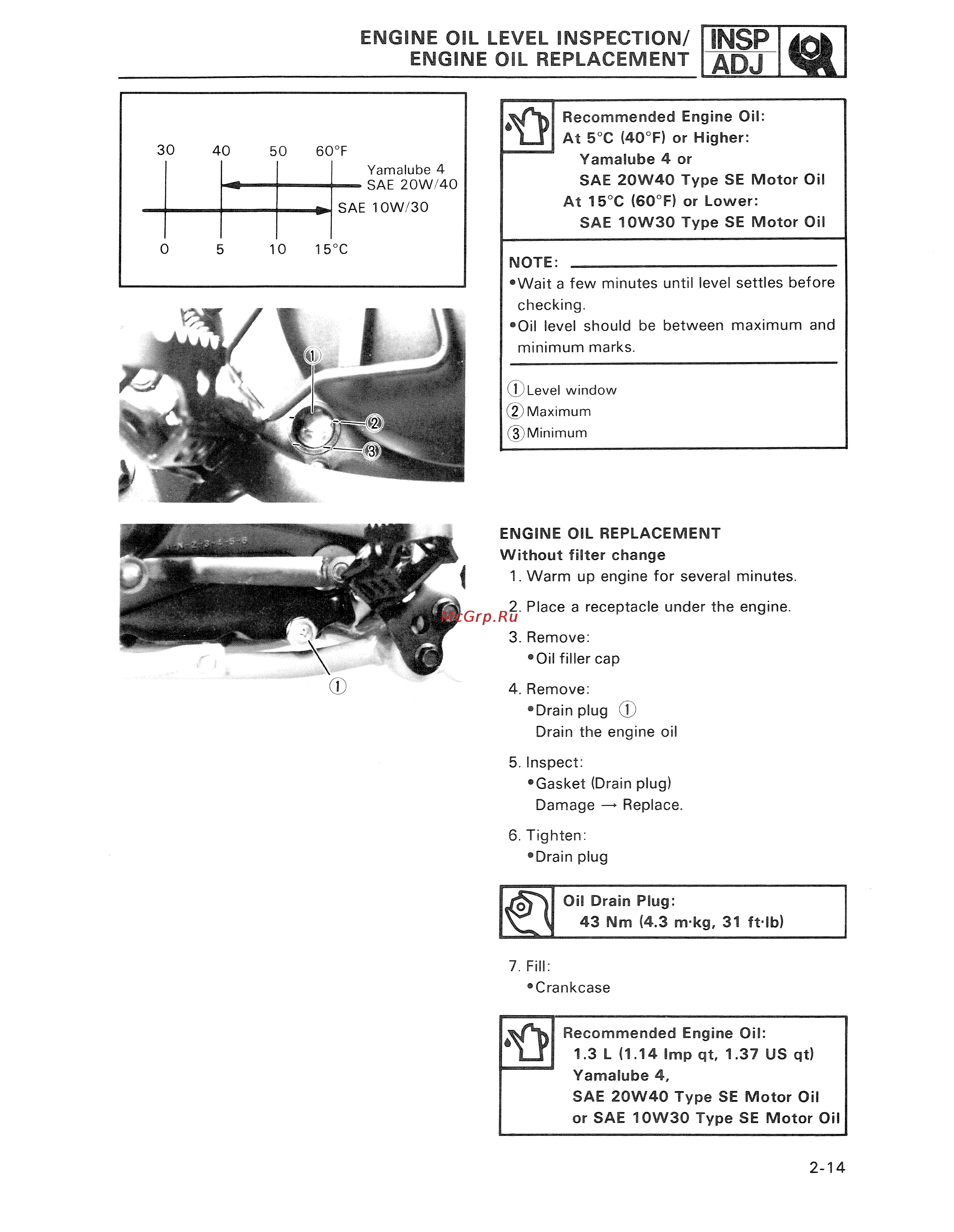

ENGINE OIL LEVEL INSPECTION ENGINE OIL REPLACEMENT INSP ADJ Recommended Engine Oil 30 40 50 1 1 At 5 C HOT or Higher 60 F Yamalube 4 or SAE 20W40 Type SE Motor Oil Yamalube 4 SAE 20W 40 At 15 C 60 F or Lower SAE 10W 30 SAE 10W30 Type SE Motor Oil 0 5 10 15 C NOTE ___________ ___ ___ _________ _ Wait a few minutes until level settles before checking Oil level should be between maximum and minimum marks iJLevel window 2 Maximum 3 Minimum ENGINE OIL REPLACEMENT Without filter change 1 Warm up engine for several minutes 2 Place a receptacle under the engine 3 Remove Oil filler cap 4 Remove Drain plug Drain the engine oil 5 Inspect Gasket Drain plug Damage Replace 6 Tighten Drain plug Oil Drain Plug 43 Nm 4 3 m kg 31 ftdb 7 Fill Crankcase Recommended Engine Oil L_J 1 3 L 1 14 Imp qt 1 37 US qt Yamalube 4 SAE 20W40 Type SE Motor Oil or SAE 10W30 Type SE Motor Oil 2 14
