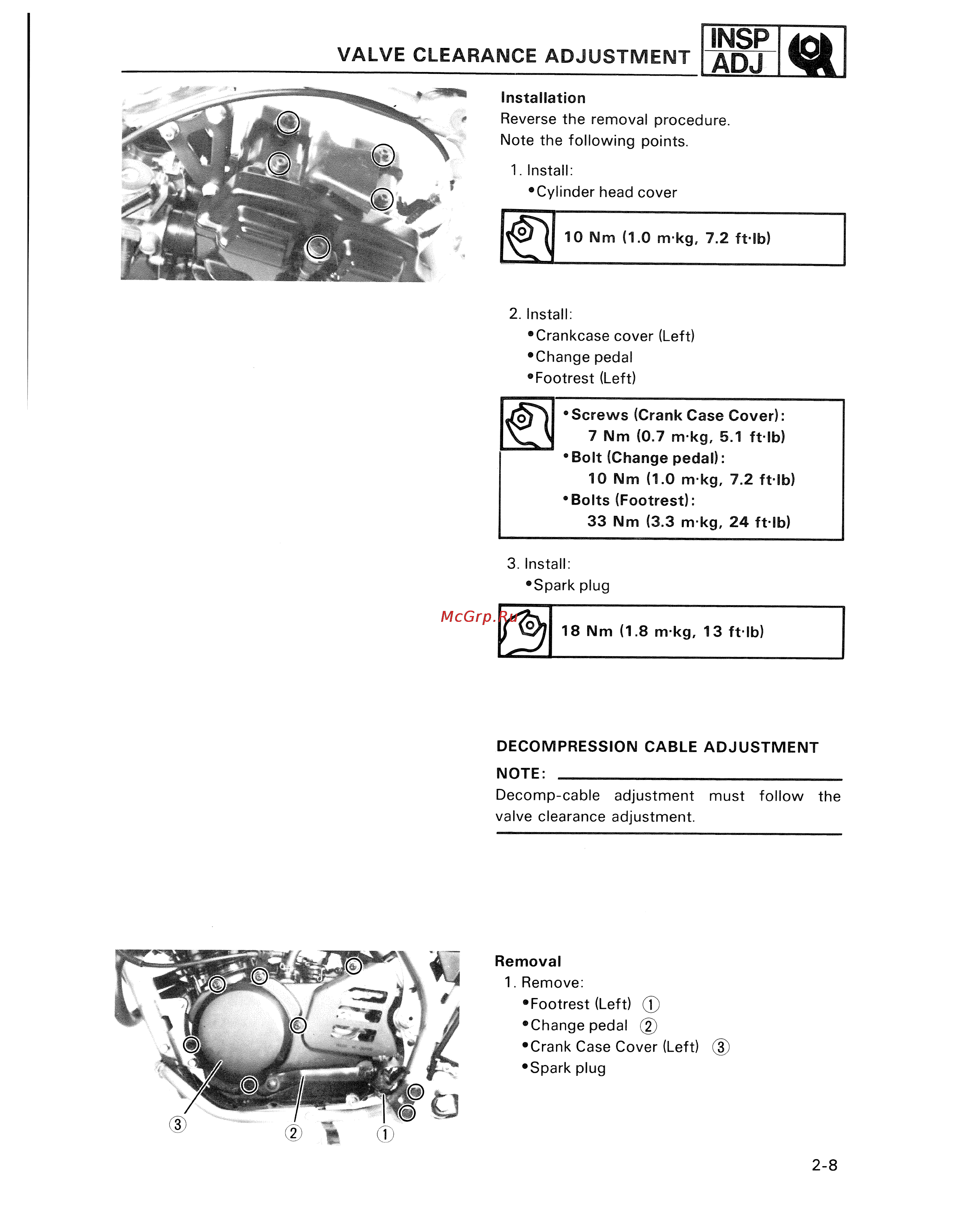

VALVE CLEARANCE ADJUSTMENT Installation Reverse the removal procedure Note the following points 1 Install Cylinder head cover 2 Install Crankcase cover Left Change pedal Footrest Left Screws Crank Case Cover 7 Nm 0 7 m kg 5 1 ft lb Bolt Change pedal 10 Nm 1 0 m kg 7 2 ft lb Bolts Footrest 33 Nm 3 3 m kg 24 ft lb 3 Install Spark plug DECOMPRESSION CABLE ADJUSTMENT NOTE ______________________________________ Decomp cable adjustment must follow the valve clearance adjustment Removal 1 Remove Footrest Left T Change pedal 2 OO Crank Case Cover Left 3 Spark plug 2 8
