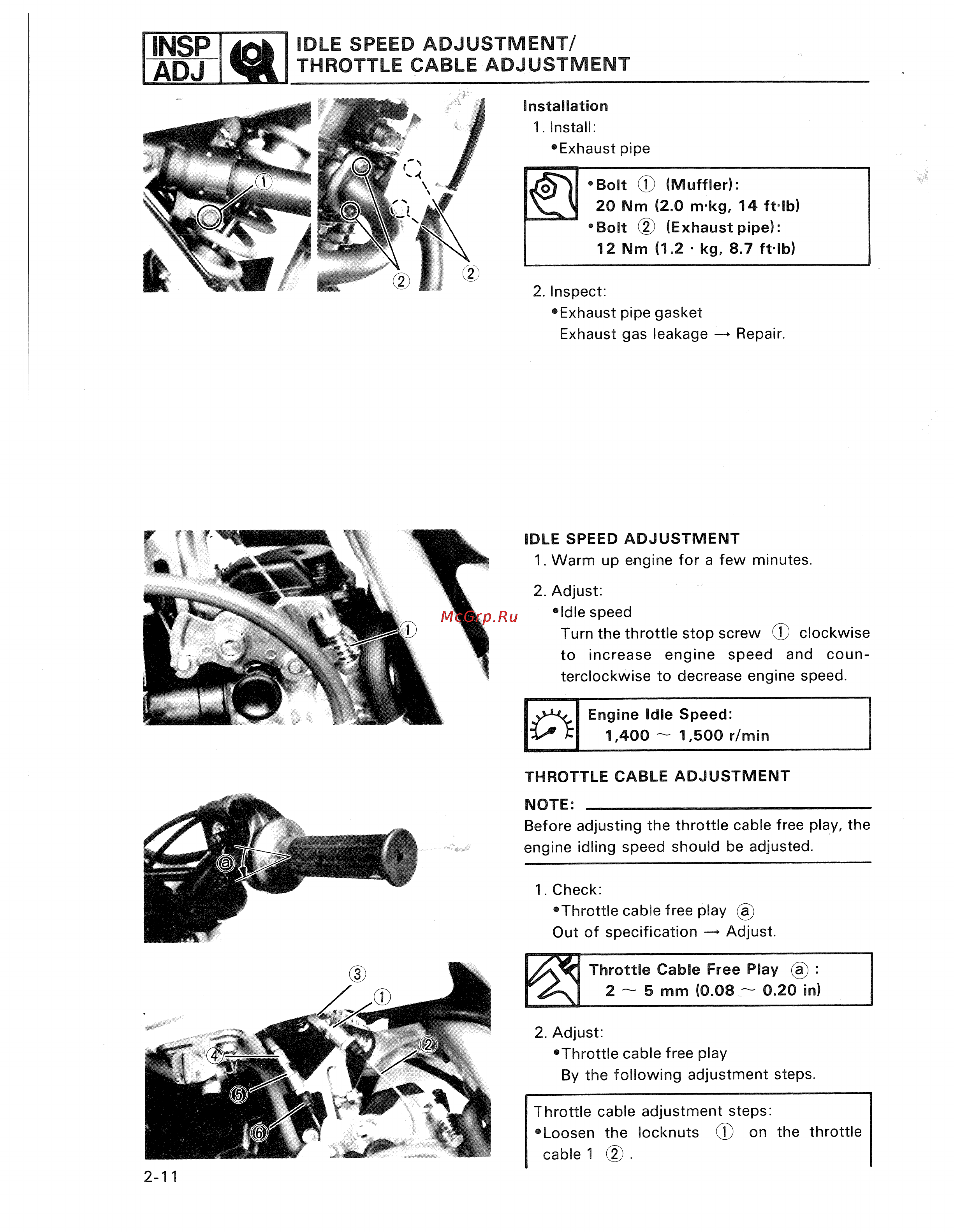

INSP ADJ IDLE SPEED ADJUSTMENT THROTTLE CABLE ADJUSTMENT Installation 1 Install Exhaust pipe Bolt CD Muffler 20 Nm 2 0 m kg 14 ftlb Bolt 2 Exhaust pipe 12 Nm 1 2 kg 8 7 ft lb 2 Inspect Exhaust pipe gasket Exhaust gas leakage Repair IDLE SPEED ADJUSTMENT 1 Warm up engine for a few minutes 2 Adjust Idle speed Turn the throttle stop screw CD clockwise to increase engine speed and coun terclockwise to decrease engine speed Engine Idle Speed 1 400 1 500 r min THROTTLE CABLE ADJUSTMENT NOTE ______________________________________ Before adjusting the throttle cable free play the engine idling speed should be adjusted 1 Check Throttle cable free play Out of specification Adjust Throttle Cable Free Play â 2 5 mm 0 08 0 20 in 2 Adjust Throttle cable free play By the following adjustment steps Throttle cable adjustment steps Loosen the locknuts CD on the throttle cable 1
