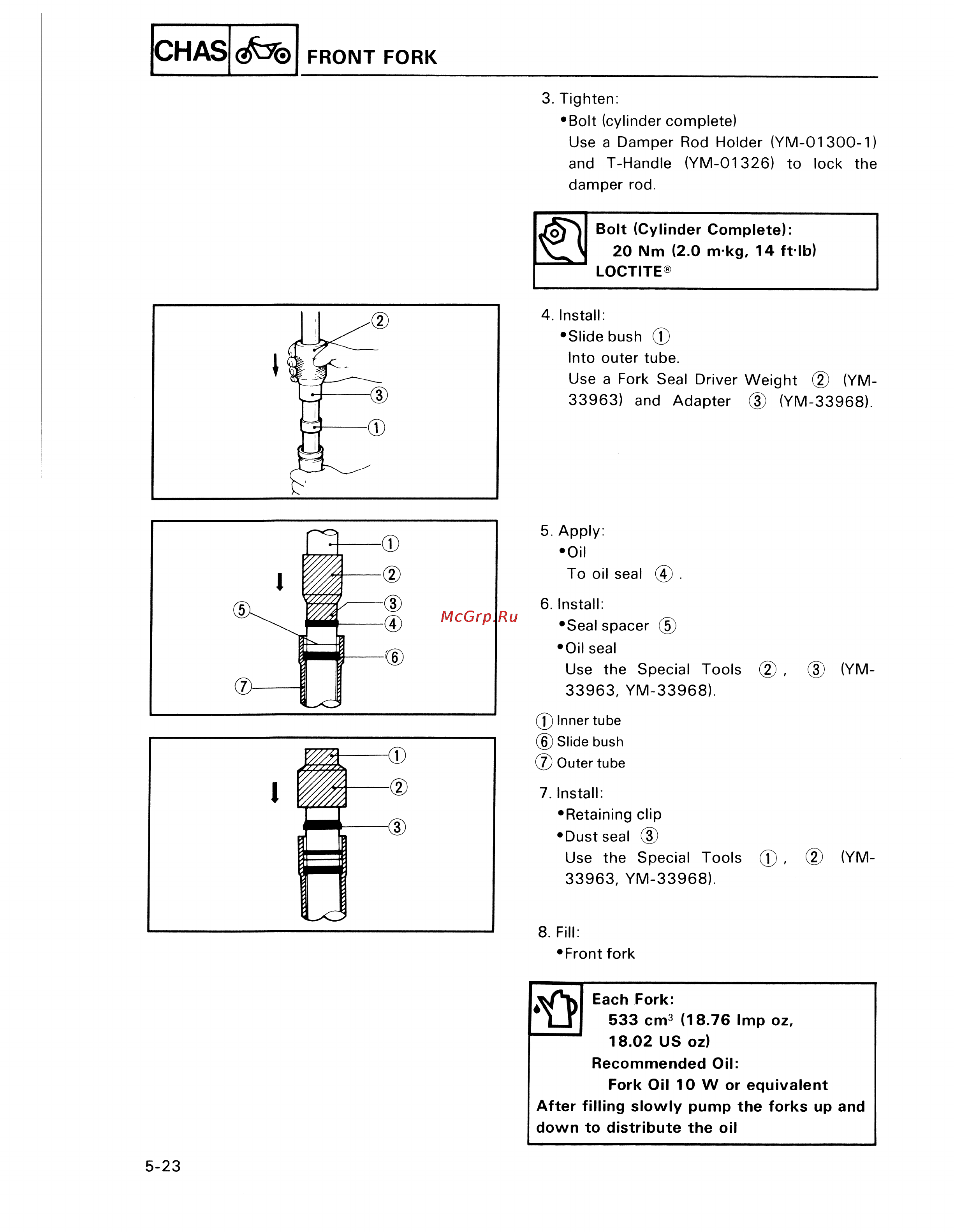

СНАБс У FRONT FORK 3 Tighten Bolt cylinder complete Use and a Damper Rod Holder YM 01300 1 T Handle YM 01326 to lock the damper rod Bolt Cylinder Complete 20 Nm 2 0 mkg 14 ftlb LOCTITE 4 Install Slide bush T Into outer tube Use a Fork Seal Driver Weight YM33963 and Adapter YM 33968 5 Apply Oil To oil seal 4 6 Install Seal spacer 5 Oil seal YM Use the Special Tools 2 33963 YM 33968 Innertube 6 Slide bush 7 Outer tube 7 Install Retaining clip Dust seal 3 Use the Special Tools Ф YM 33963 YM 33968 8 Fill Front fork WSj Each Fork LJ 533 cm3 18 76 Imp oz 18 02 US oz Recommended Oil Fork Oil 10 W or equivalent After filling slowly pump the forks up and down to distribute the oil 5 23
