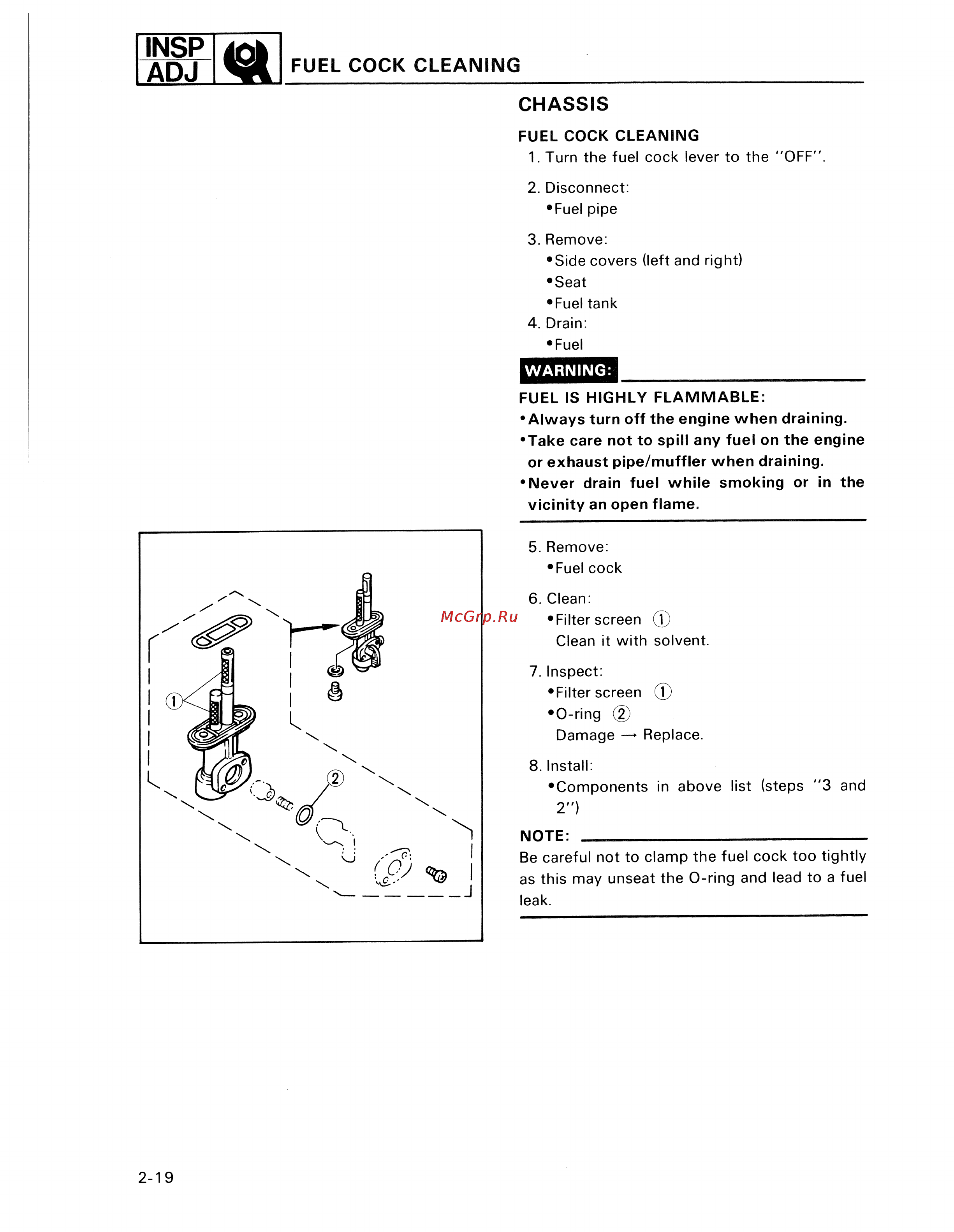

INSP o ADJ Wl FUEL COCK CLEANING CHASSIS FUEL COCK CLEANING 1 Turn the fuel cock lever to the OFF 2 Disconnect Fuel pipe 3 Remove Side covers left and right Seat Fuel tank 4 Drain Fuel WARNING FUEL IS HIGHLY FLAMMABLE Always turn off the engine when draining Take care not to spill any fuel on the engine or exhaust pipe muffler when draining Never drain fuel while smoking or in the steps 3 and vicinity an open flame 5 Remove Fuel cock 6 Clean Filterscreen T Clean it with solvent 7 Inspect Filter screen CD O ring 2 Damage Replace 8 Install Components in above list 2 NOTE ______________________________________ Be careful not to clamp the fuel cock too tightly as this may unseat the O ring and lead to a fuel leak 2 19
