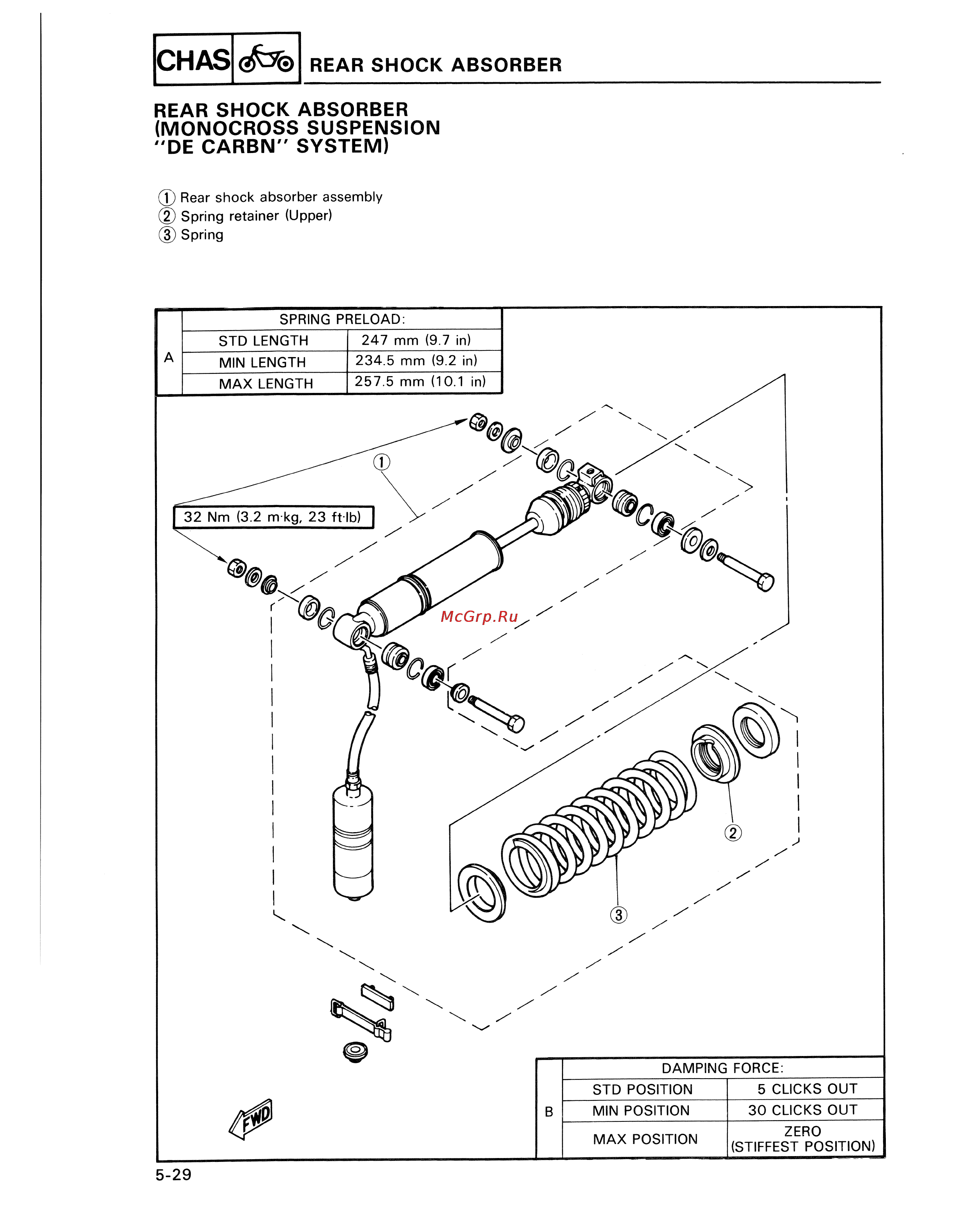

CHASe fe REAR SHOCK ABSORBER REAR SHOCK ABSORBER MONOCROSS SUSPENSION DE CARBN SYSTEM Rear shock absorber assembly Spring retainer Upper Spring STD LENGTH A MIN LENGTH MAX LENGTH SPRING PRELOAD ___________ 247 mm 9 7 in 234 5 mm 9 2 in 257 5 mm 10 1 in 32 Nm 3 2 mkg 23 ft lb STD POSITION B 5 29 DAMPING FORCE __________ 5 CLICKS OUT MIN POSITION 30 CLICKS OUT MAX POSITION ZERO STIFFEST POSITION
