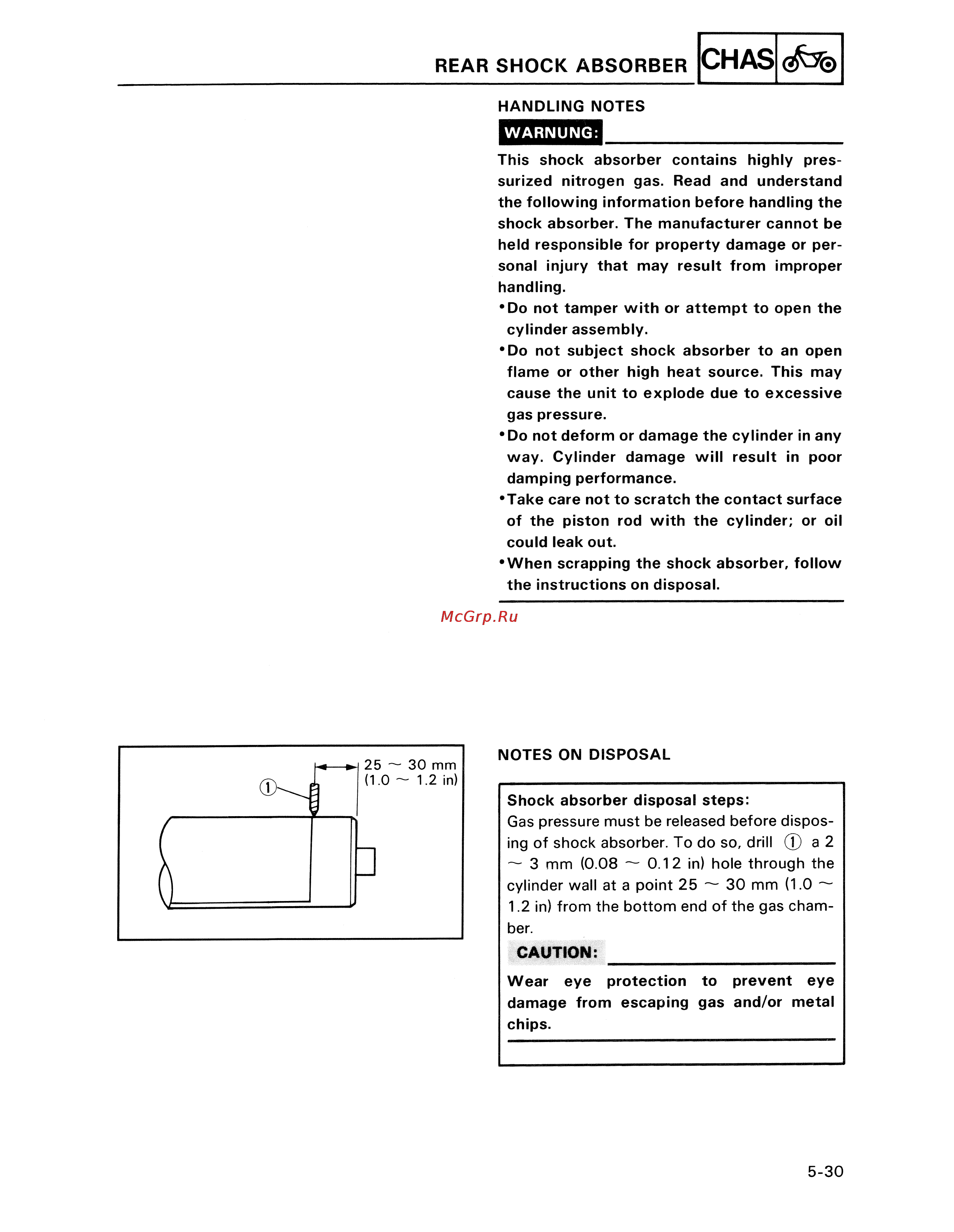

CHAS fe REAR SHOCK ABSORBER HANDLING NOTES WARNUNG This shock surized absorber nitrogen gas contains Read highly and pres understand the following information before handling the shock absorber The manufacturer cannot be held responsible for property damage or per sonal injury that may result from improper handling Do not tamper with or attempt to open the cylinder assembly Do not subject shock absorber to an open flame or other high heat source This may cause the unit to explode due to excessive gas pressure Do not deform or damage the cylinder in any way Cylinder damage will result in poor damping performance Take care not to scratch the contact surface of the piston rod with the cylinder or oil could leak out When scrapping the shock absorber follow the instructions on disposal NOTES ON DISPOSAL Shock absorber disposal steps Gas pressure must be released before dispos ing of shock absorber To do so drill T a 2 3 mm 0 08 0 12 in hole through the cylinder wall at a point 25 30 mm 1 0 1 2 in from the bottom end of the gas cham ber CAUTION ______________ Wear damage eye from protection escaping to prevent gas and or eye metal chips 5 30
