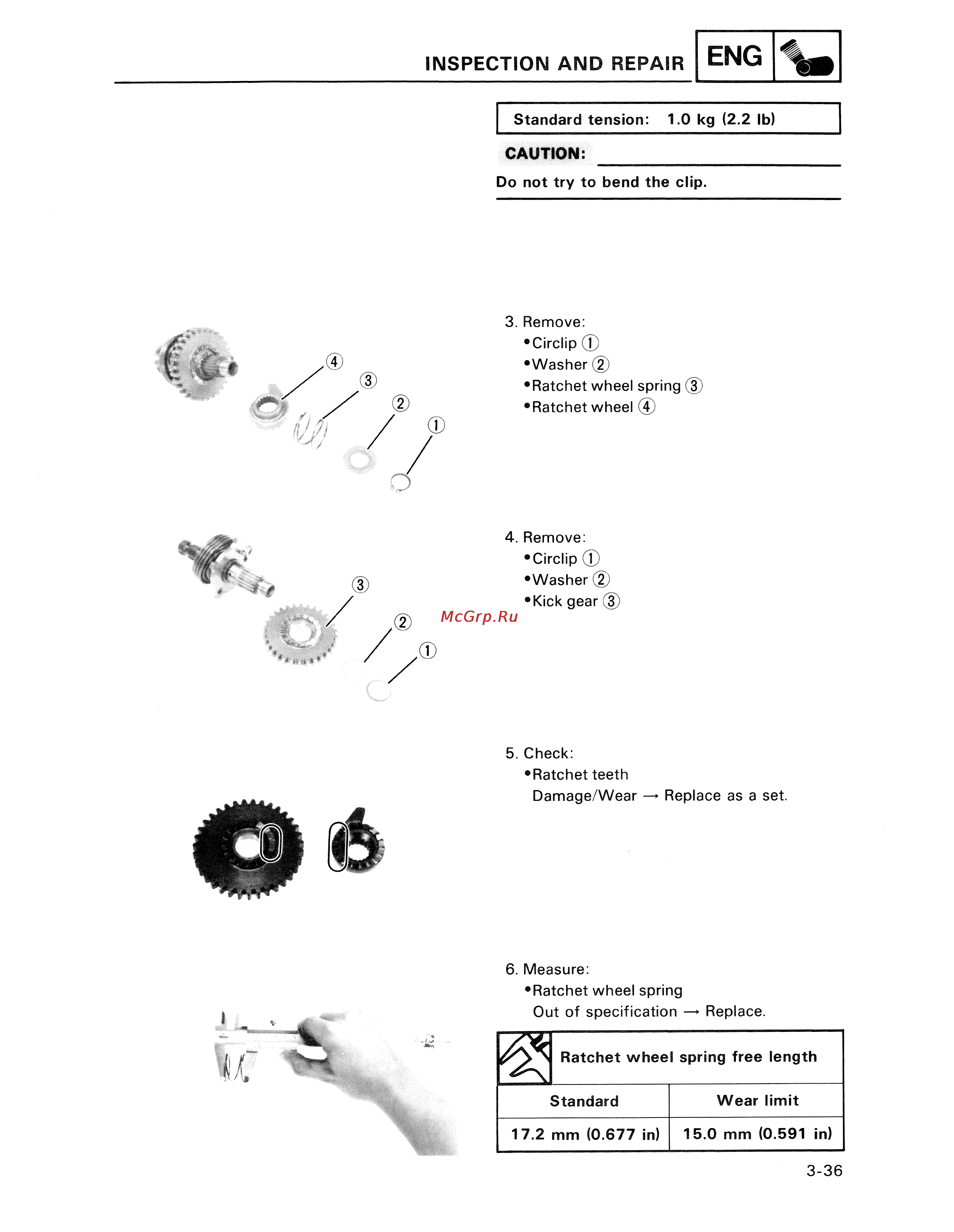

INSPECTION AND REPAIR Standard tension 1 0 kg 2 2 lb CAUTION _____________________________ Do not try to bend the clip 3 Remove Circlip T Washer Ratchet wheel spring 3 Ratchet wheel 4 Remove Circlip Washer 2 Kick gear 3 5 Check Ratchet teeth Damage Wear Replace as a set 6 Measure Ratchet wheel spring Out of specification Replace Ratchet wheel spring free length Standard Wear limit 17 2 mm 0 677 in 15 0 mm 0 591 in 3 36
