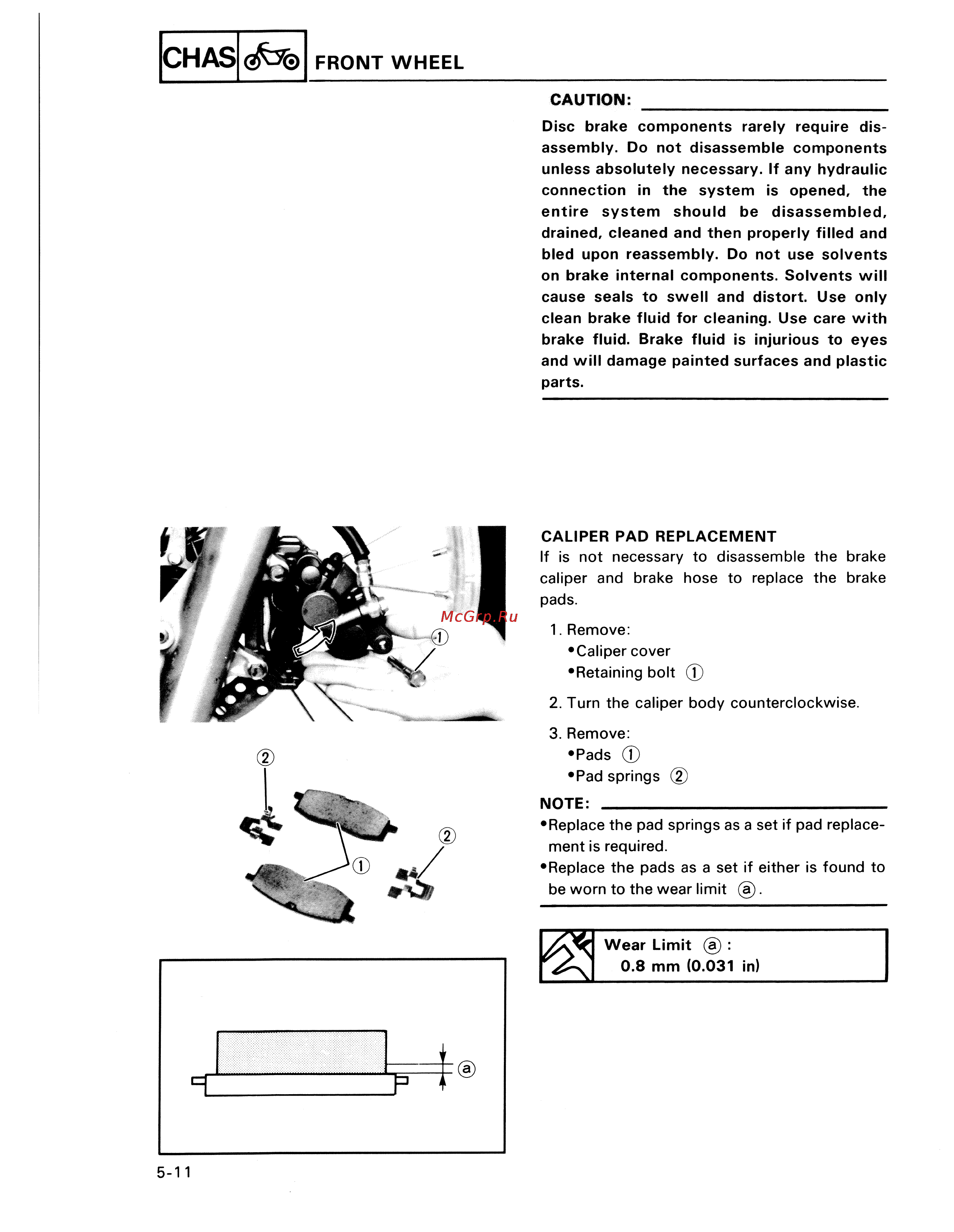

CH AS FRONT WHEEL CAUTION _____________________________ Disc brake assembly components Do not rarely require disassemble dis components unless absolutely necessary If any hydraulic connection entire in the system system should is be opened the disassembled drained cleaned and then properly filled and bled upon reassembly Do not use solvents on brake internal components Solvents will cause seals to swell and distort Use only clean brake fluid for cleaning Use care with brake fluid Brake fluid is injurious to eyes and will damage painted surfaces and plastic parts CALIPER PAD REPLACEMENT If is not necessary to disassemble the brake caliper the brake and brake hose to replace pads 1 Remove Caliper cover Retaining bolt j 2 Turn the caliper body counterclockwise 3 Remove Pads Ï Pad springs 2 NOTE ______________________________________ Replace the pad springs as a set if pad replace ment is required Replace the pads as a set if either is found to be worn to the wear limit a Wear Limit a 0 8 mm 0 031 in 5 11
