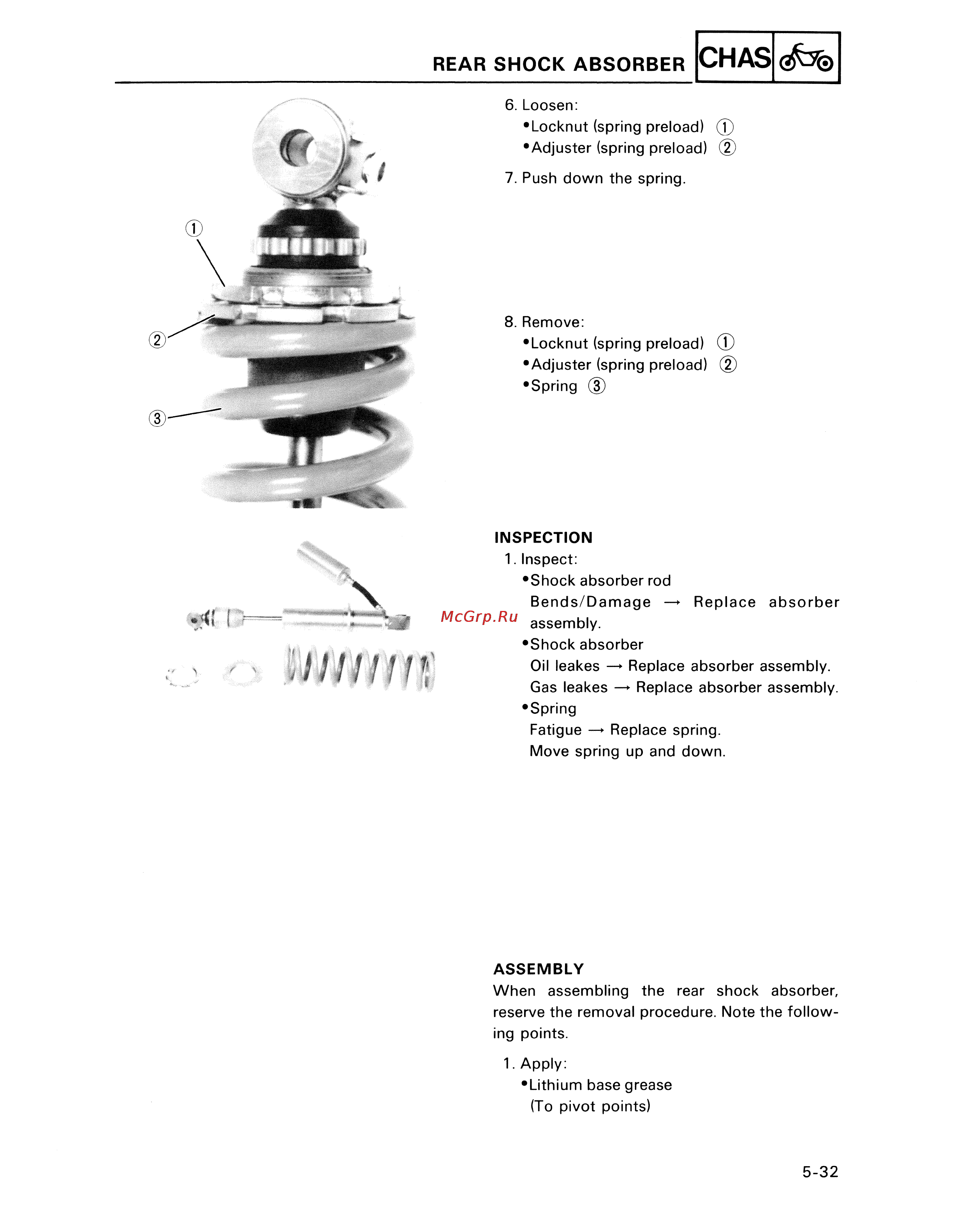

REAR SHOCK ABSORBER CHASG 6 Loosen Locknut spring preload CD Adjuster spring preload 2 7 Push down the spring 8 Remove Locknut spring preload CD Adjuster spring preload 2 Spring 3 INSPECTION 1 Inspect Shock absorber rod Bends Damage Replace absorber assembly Shock absorber Oil leakes Replace absorber assembly Gas leakes Replace absorber assembly Spring Fatigue Replace spring Move spring up and down ASSEMBLY When assembling the rear shock absorber reserve the removal procedure Note the follow ing points 1 Apply Lithium base grease To pivot points 5 32
