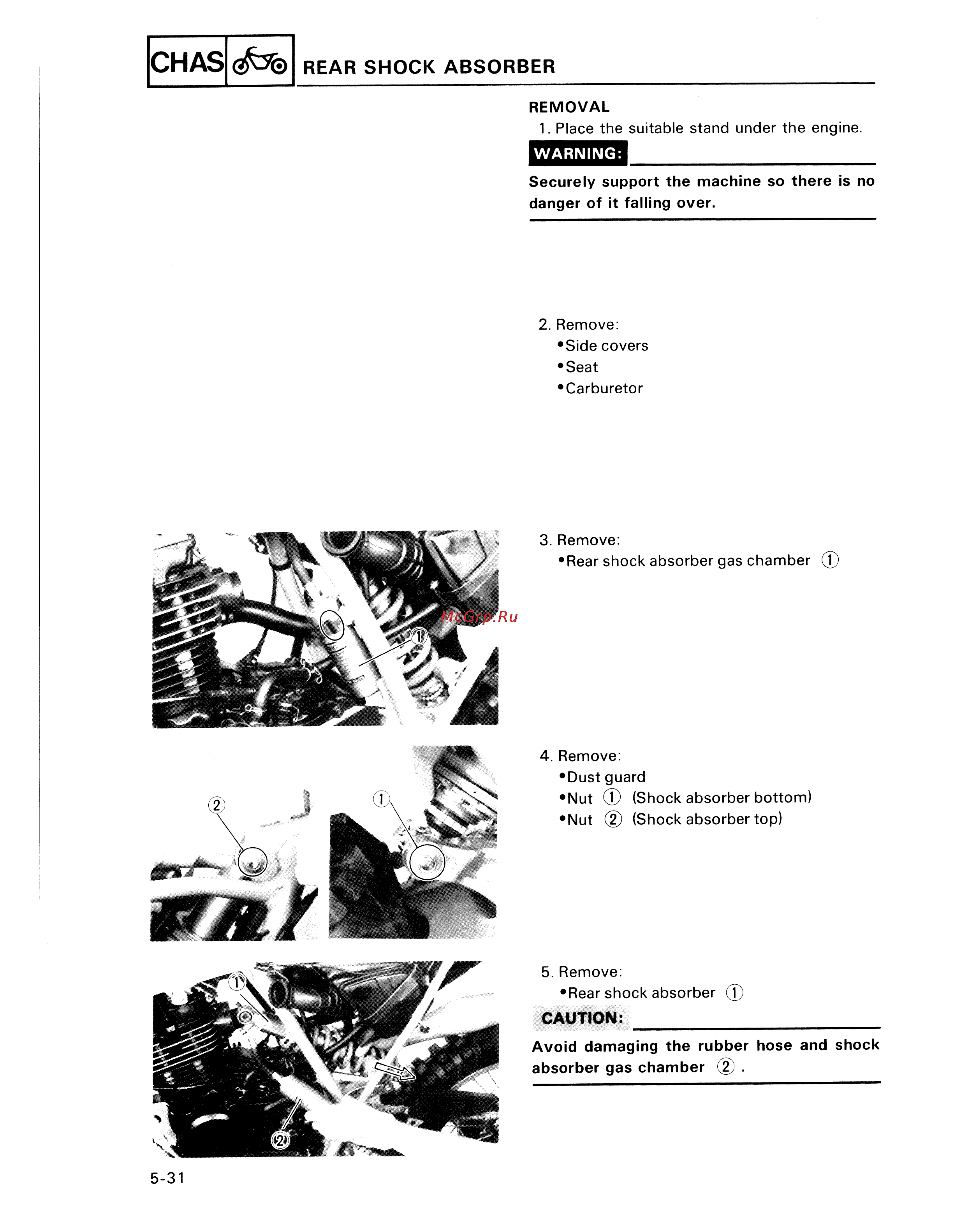

CHAS REAR SHOCK ABSORBER REMOVAL 1 Place the suitable stand under the engine WARNING Securely support the machine so there is no danger of it falling over 2 Remove Side covers Seat Carburetor 3 Remove Rear shock absorber gas chamber Ï 4 Remove Dust guard Nut Shock absorber bottom Nut Shock absorber top 5 Remove Rear shock absorber T CAUTION _____________________________ Avoid damaging the rubber hose and shock absorber gas chamber 2 5 31
