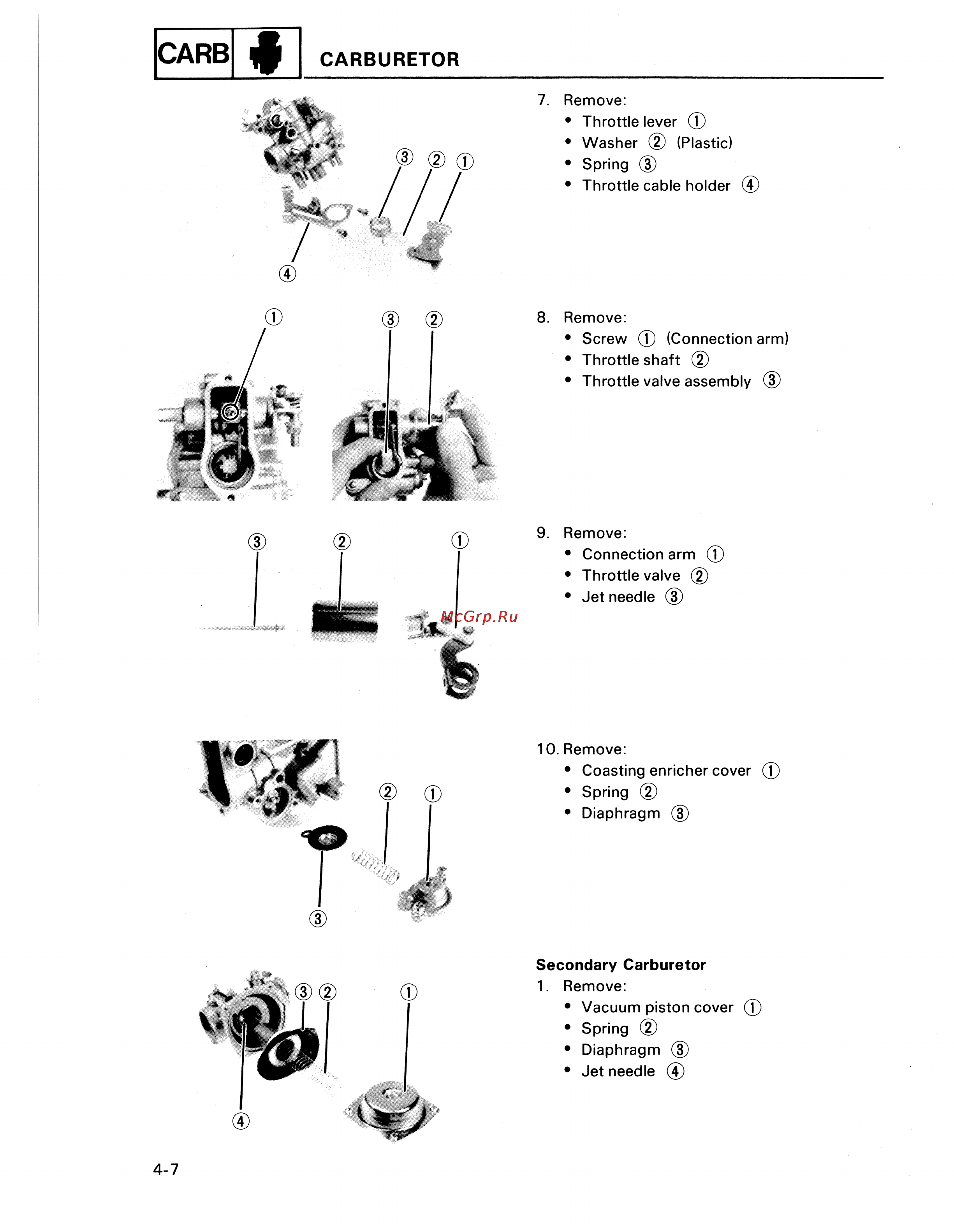

CARB CARBURETOR 7 Remove Throttle lever Washer Plastic Spring 3 Throttle cable holder 4 8 Remove Screw T Connection arm Throttle shaft Throttle valve assembly 3 9 Remove Connection arm T Throttle valve Jet needle 3 10 Remove Coasting enricher cover T Spring 2 Diaphragm 3 Secondary Carburetor 1 Remove Vacuum piston cover T Spring Diaphragm 3 Jet needle 4
