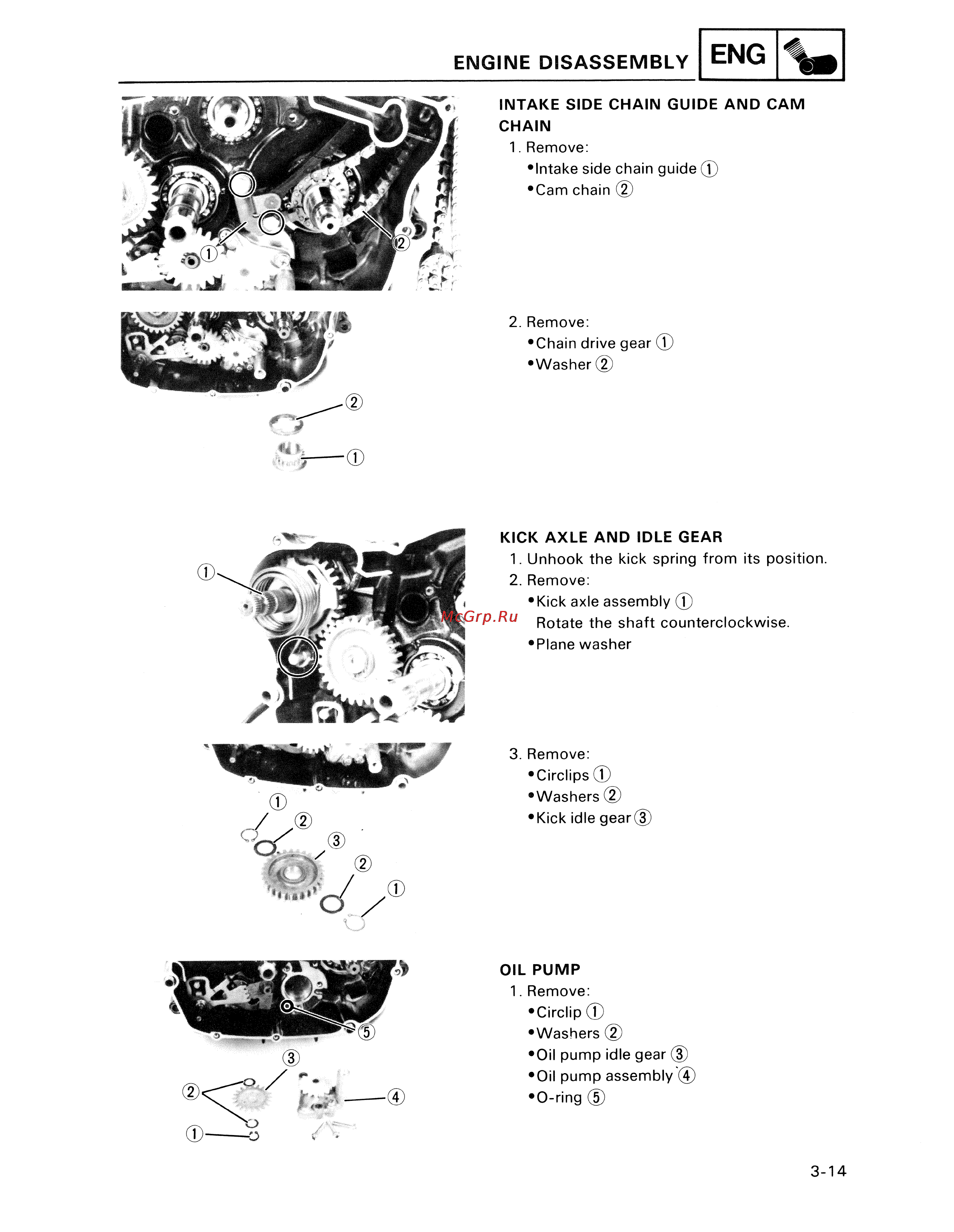

ENGINE DISASSEMBLY ENG INTAKE SIDE CHAIN GUIDE AND CAM CHAIN 1 Remove Intake side chain guide CD Cam chain 2 2 Remove Chain drive gear CD Washer 2 KICK AXLE AND IDLE GEAR 1 Unhook the kick spring from its position 2 Remove Kick axle assembly CD Rotate the shaft counterclockwise Plane washer 3 Remove Circlips CD Washers Kick idle gear 3 OIL PUMP 1 Remove Circlip CD Washers 2 Oil pump idle gear 3 Oil pump assembly 4 O ring 5 3 14
