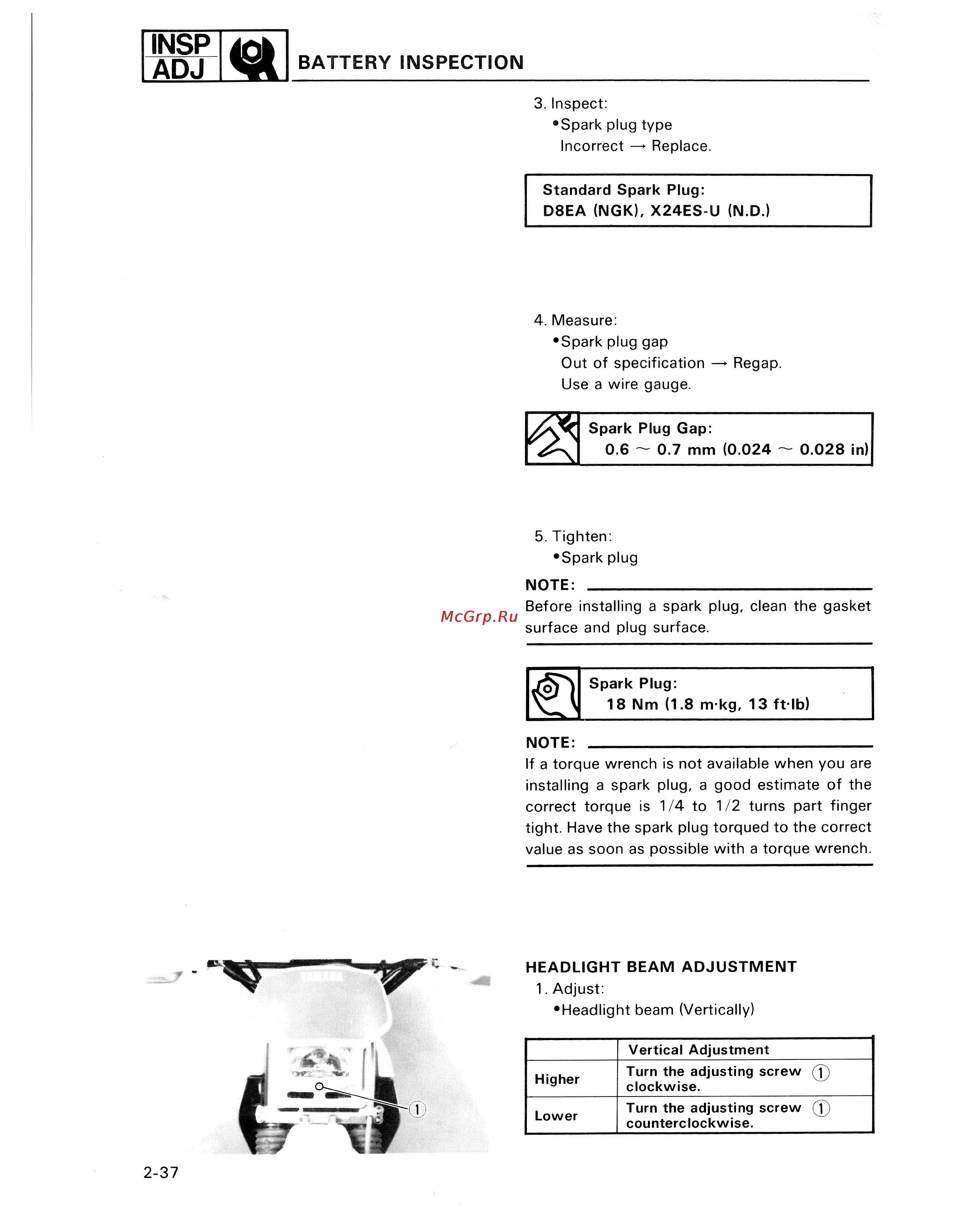

4 INSP Û ADJ Iwl BATTERY INSPECTION 3 Inspect Spark plug type Incorrect Replace Standard Spark Plug D8EA NGK X24ES U N D 4 Measure Spark plug gap Out of specification Regap Use a wire gauge Spark Plug Gap 0 6 0 7 mm 0 024 0 028 in 5 Tighten Spark plug NOTE ______________________________________ Before installing a spark plug clean the gasket surface and plug surface Spark Plug 18 Nm 1 8 mkg 13 ft lb NOTE ______________________________________ If a torque wrench is not available when you are installing a spark plug a good estimate of the correct torque is 1 4 to 1 2 turns part finger tight Have the spark plug torqued to the correct value as soon as possible with a torque wrench HEADLIGHT BEAM ADJUSTMENT 1 Adjust Headlight beam Vertically Vertical Adjustment 2 37 Higher Turn the adjusting screw J clockwise Lower Turn the adjusting screw T counterclockwise
