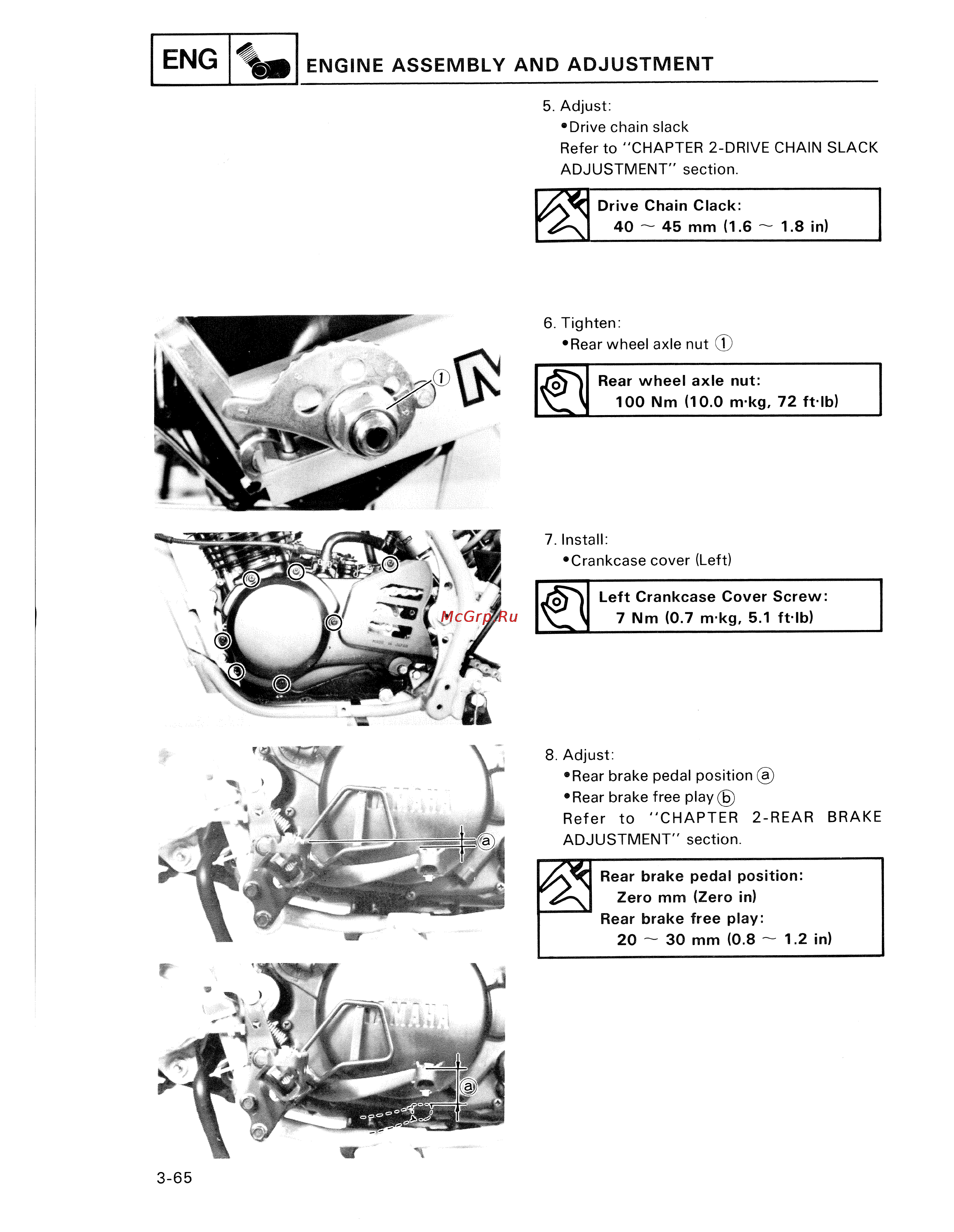

ENG ENGINE ASSEMBLY AND ADJUSTMENT 5 Adjust Drive chain slack Refer to CHAPTER 2 DRIVE CHAIN SLACK ADJUSTMENT section Drive Chain Clack 40 45 mm 1 6 1 8 in 6 Tighten Rear wheel axle nut T Rear wheel axle nut 100 Nm 10 0 mkg 72 ftlb 7 Install Crankcase cover Left Left Crankcase Cover Screw 7 Nm 0 7 m kg 5 1 ft lb 8 Adjust Rear brake pedal position a Rear brake free play Refer to CHAPTER 2 REAR BRAKE ADJUSTMENT section Rear brake pedal position Zero mm Zero in Rear brake free play 20 30 mm 0 8 1 2 in 3 65
