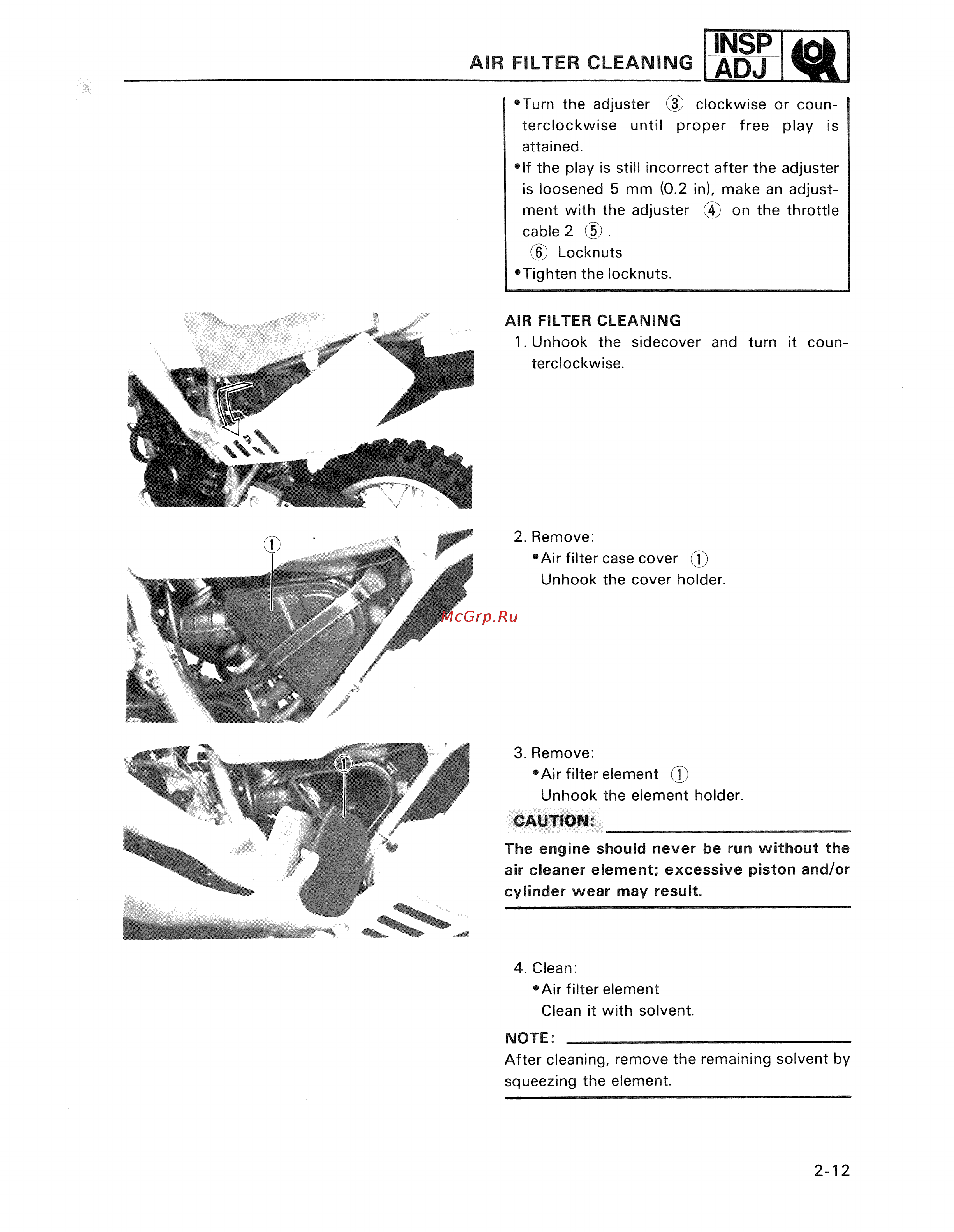

INSP ADJ AIR FILTER CLEANING Turn the adjuster terclockwise 3 until clockwise proper or free coun play is attained If the play is still incorrect after the adjuster is loosened 5 mm 0 2 in make an adjust ment with the adjuster 4 on the throttle cable 2 5 6 Locknuts Tighten the locknuts AIR FILTER CLEANING 1 Unhook the sidecover and turn it coun terclockwise 2 Remove Air filter case cover T Unhook the cover holder 3 Remove Air filter element T Unhook the element holder CAUTION _____________________________ The engine should never be run without the air cleaner element excessive piston and or cylinder wear may result 4 Clean Air filter element Clean it with solvent NOTE ______________________________________ After cleaning remove the remaining solvent by squeezing the element 2 12
