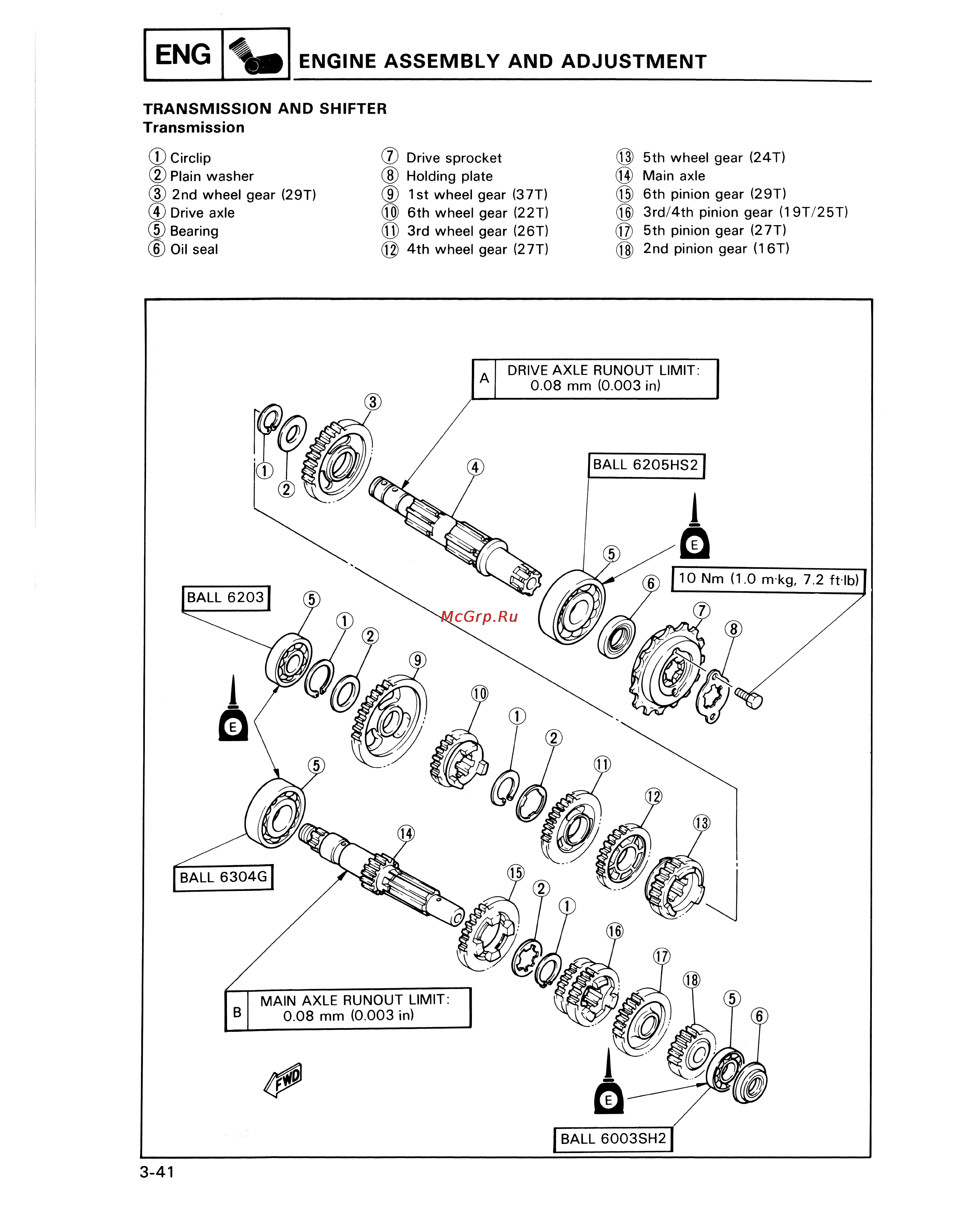

ENG ENGINE ASSEMBLY AND ADJUSTMENT TRANSMISSION AND SHIFTER Transmission Plain washer 3 2nd wheel gear 29T 3 41 Drive sprocket Holding plate 1st wheel gear 37T 6th wheel gear 22T 3rd wheel gear 26T 4th wheel gear 27T 5th wheel gear 24T Main axle 6th pinion gear 29T 3rd 4th pinion gear 19T 25T 5th pinion gear 27T 2nd pinion gear 16T
