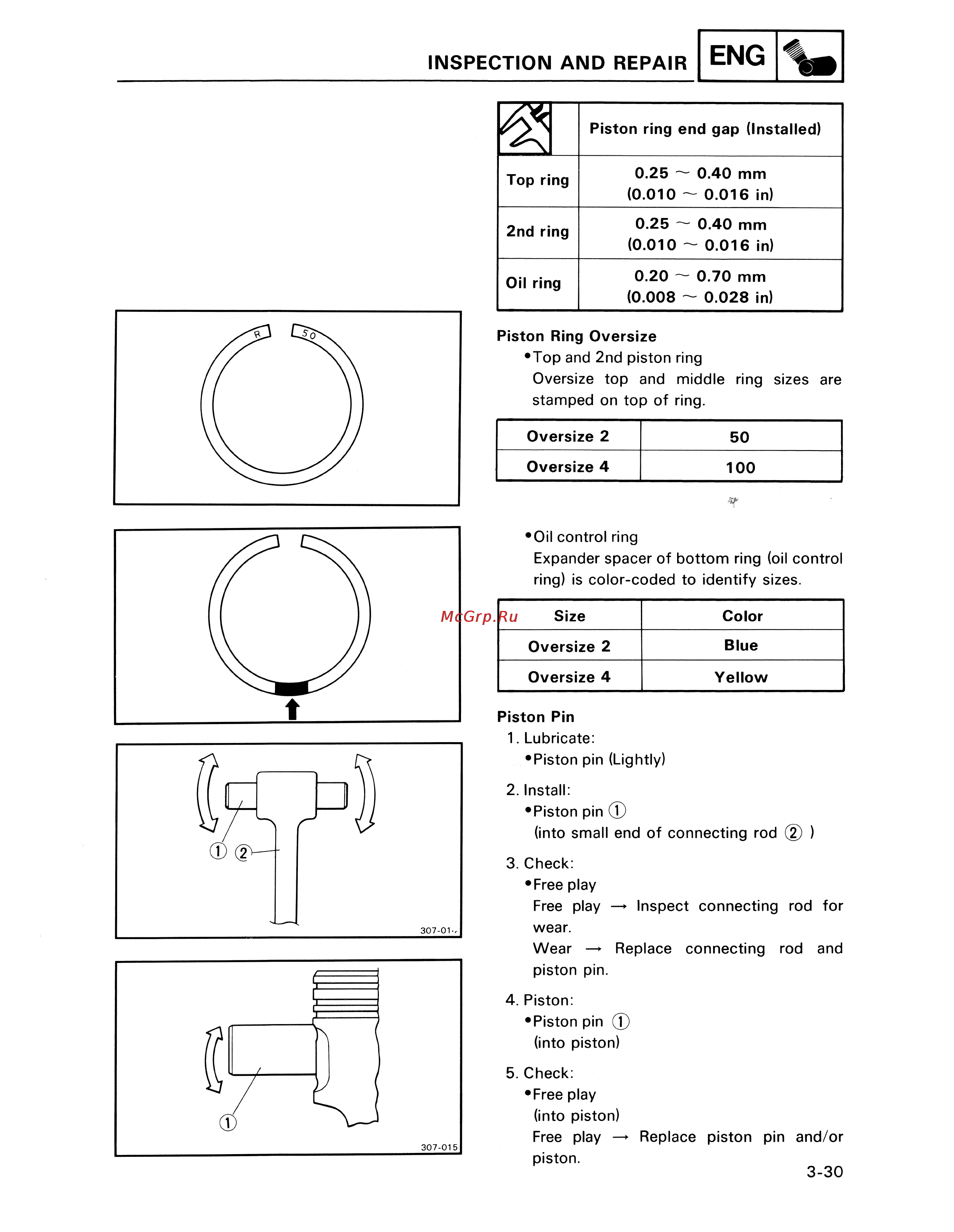

INSPECTION AND REPAIR ENG Piston ring end gap Installed 0 25 0 40 mm Top ring 0 010 0 016 in 0 25 0 40 mm 2nd ring 0 010 0 016 in 0 20 0 70 mm 0 008 0 028 in Oil ring Piston Ring Oversize Top and 2nd piston ring Oversize top and middle ring sizes are stamped on top of ring Oversize 2 50 Oversize 4 100 Oil control ring Expander spacer of bottom ring oil control ring is color coded to identify sizes Size Color Oversize 2 Blue Oversize 4 Yellow Piston Pin 1 Lubricate Piston pin Lightly 2 Install Piston pin CD into small end of connecting rod 2 3 Check Free play Free play Inspect connecting rod for wear Wear Replace connecting rod and piston pin 4 Piston Piston pin CD into piston 5 Check Free play into piston Free play Replace piston pin and or piston 3 30
