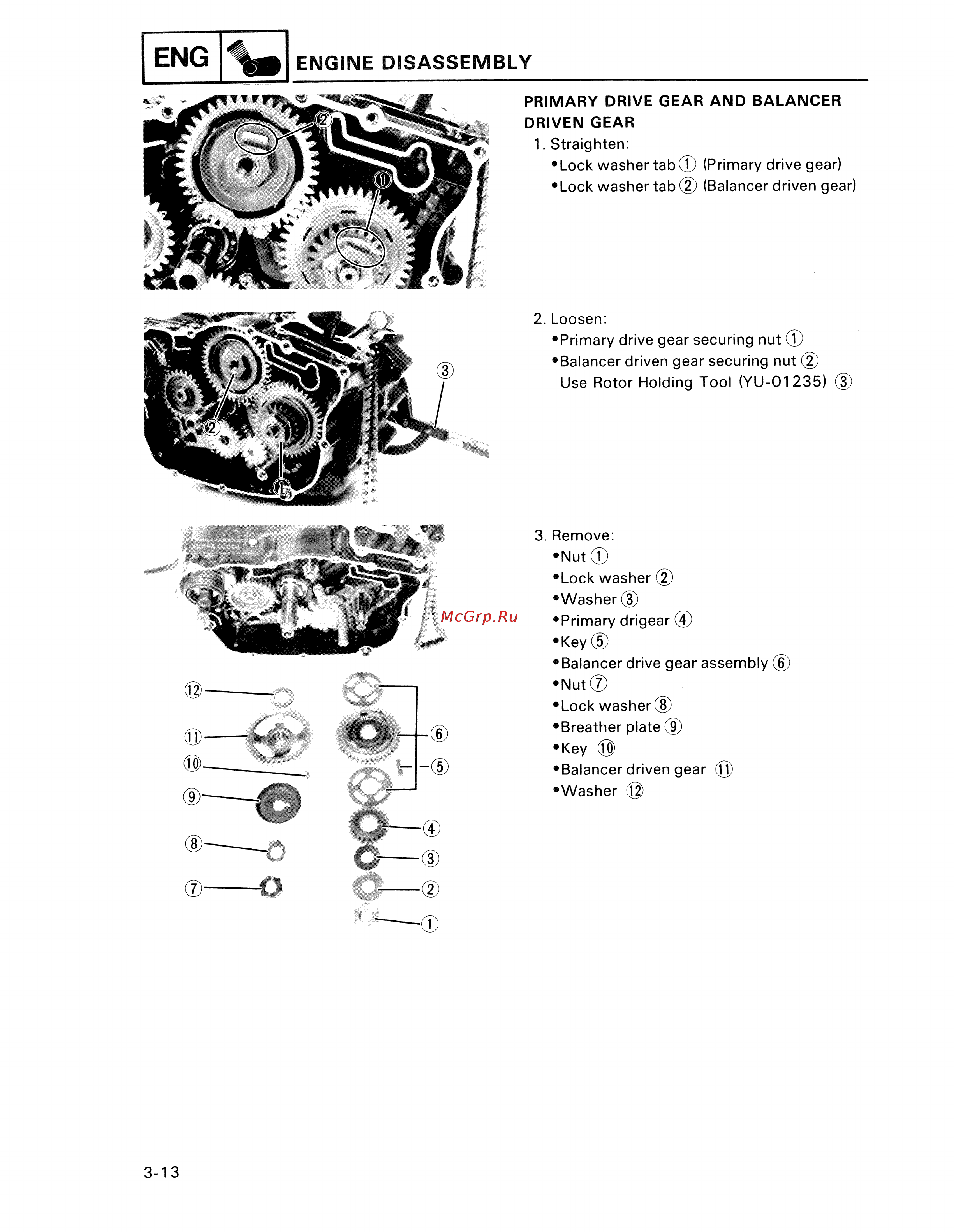

ENG ENGINE DISASSEMBLY PRIMARY DRIVE GEAR AND BALANCER DRIVEN GEAR 1 Straighten Lock washer tab Primary drive gear Lock washer tab Balancer driven gear 2 Loosen Primary drive gear securing nut Balancer driven gear securing nut Use Rotor Holding Tool YU 01235 3 Remove Nut Lock washer Washer Primary drigear Key Balancer drive gear assembly Nut Lock washer Breather plate Key Balancer driven gear fj Washer 3 13
