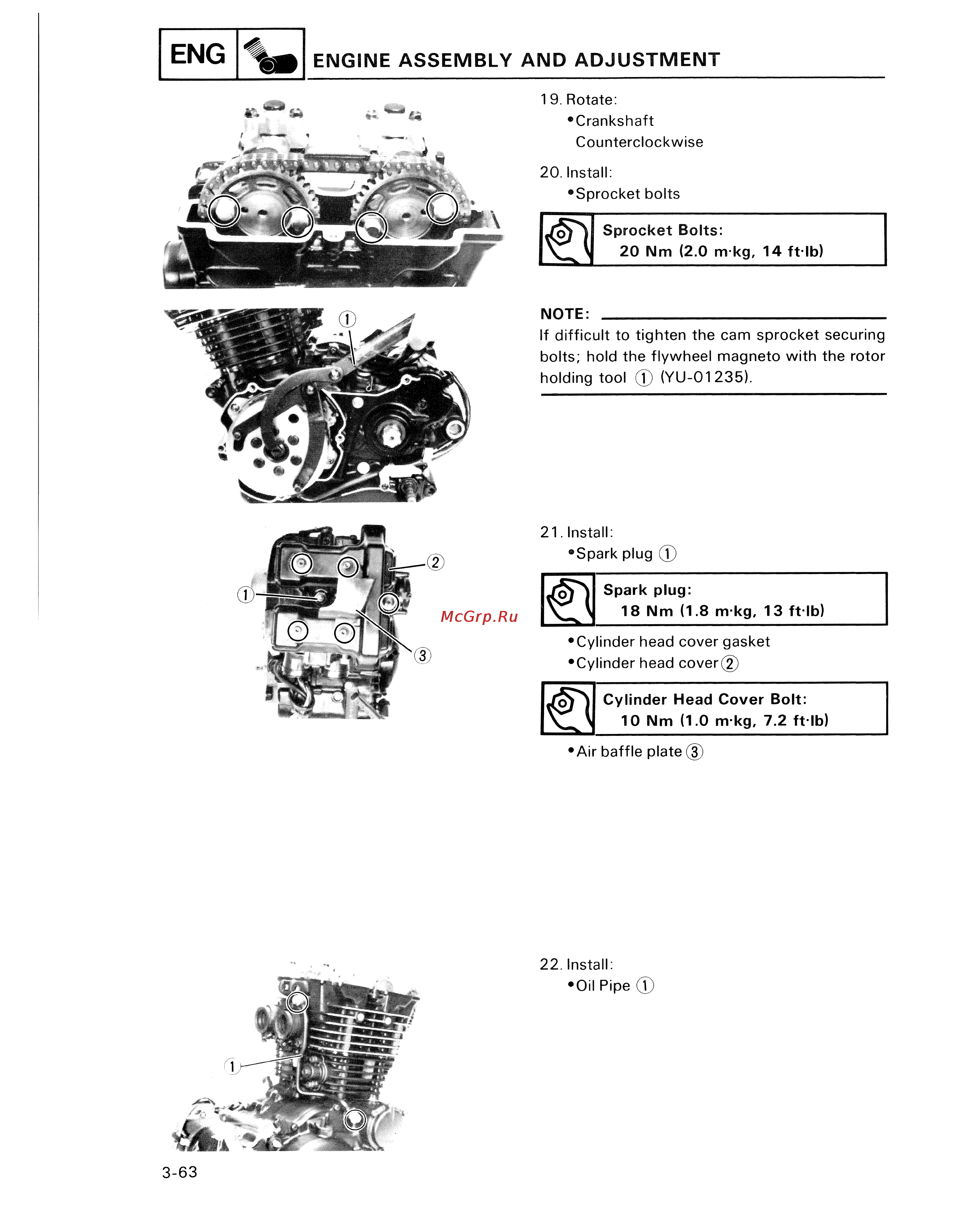

ENG ENGINE ASSEMBLY AND ADJUSTMENT 1 9 Rotate Crankshaft Counterclockwise 20 Install Sprocket bolts Sprocket Bolts 20 Nm 2 0 mkg 14 ftlb NOTE ______________________________________ If difficult to tighten the cam sprocket securing bolts hold the flywheel magneto with the rotor holding tool T YU 01235 21 Install Spark plug T Spark plug 18 Nm 1 8 m kg 13 ft lb Cylinder head cover gasket Cylinder head cover 2 Zo Cylinder Head Cover Bolt 10 Nm 1 0 m kg 7 2 ft lb Air baffle plate 3 22 Install Oil Pipe CD 3 63
