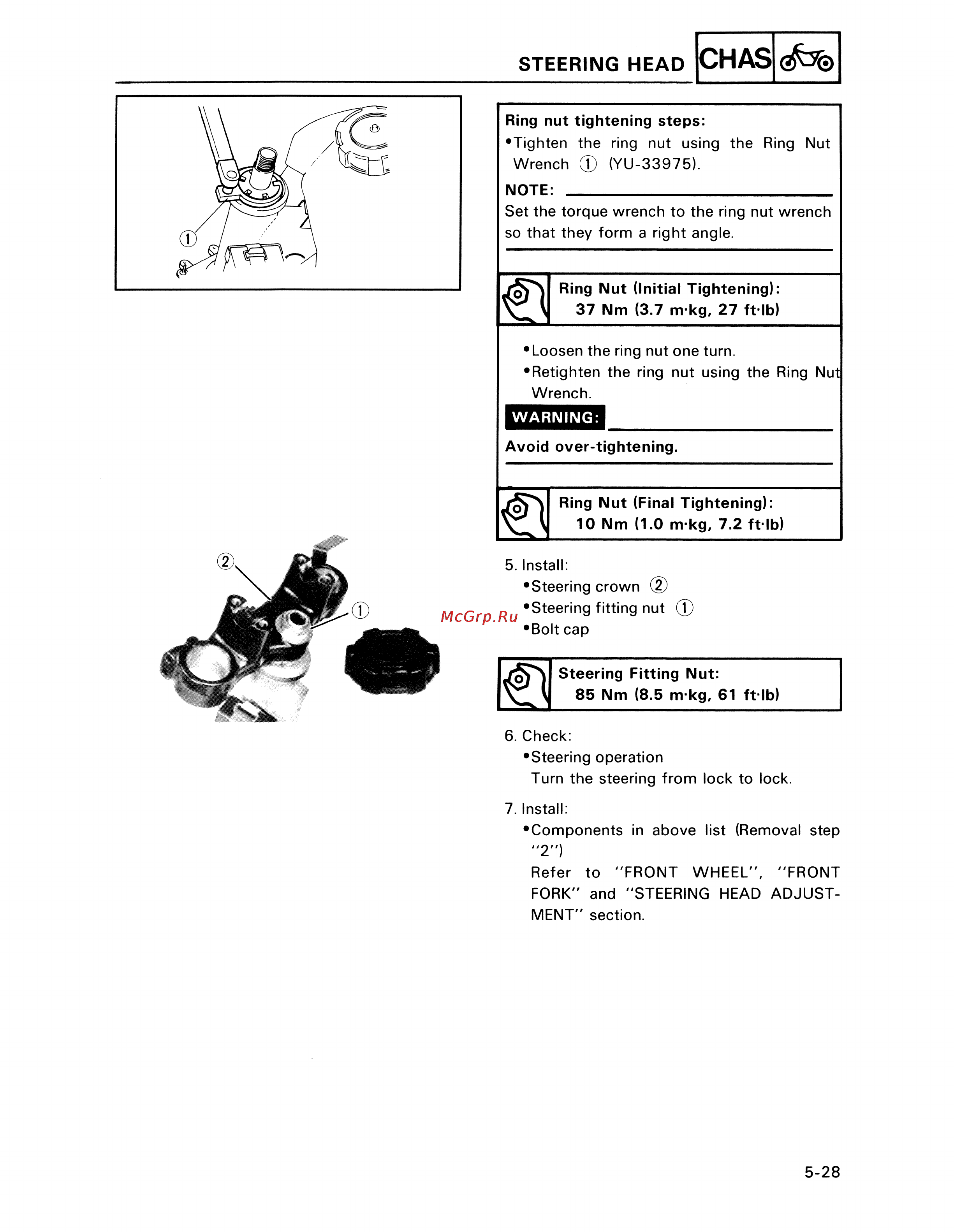

STEERING HEAD CHASg Ring nut tightening steps Tighten the ring nut using the Ring Nut Wrench YU 33975 NOTE ___________________________________ Set the torque wrench to the ring nut wrench so that they form a right angle Ring Nut Initial Tightening 37 Nm 3 7 m kg 27 ftlb Loosen the ring nut one turn Retighten the ring nut using the Ring Nut Wrench WARNING Avoid over tightening Ring Nut Final Tightening a 10 Nm 1 0 m kg 7 2 ft lb 5 Install Steering crown Steering fitting nut T Bolt cap Steering Fitting Nut 85 Nm 8 5 mkg 61 ftlb 6 Check Steering operation Turn the steering from lock to lock 7 Install Components 2 Refer to in above FRONT list Removal WHEEL FORK and STEERING MENT section HEAD step FRONT ADJUST 5 28
