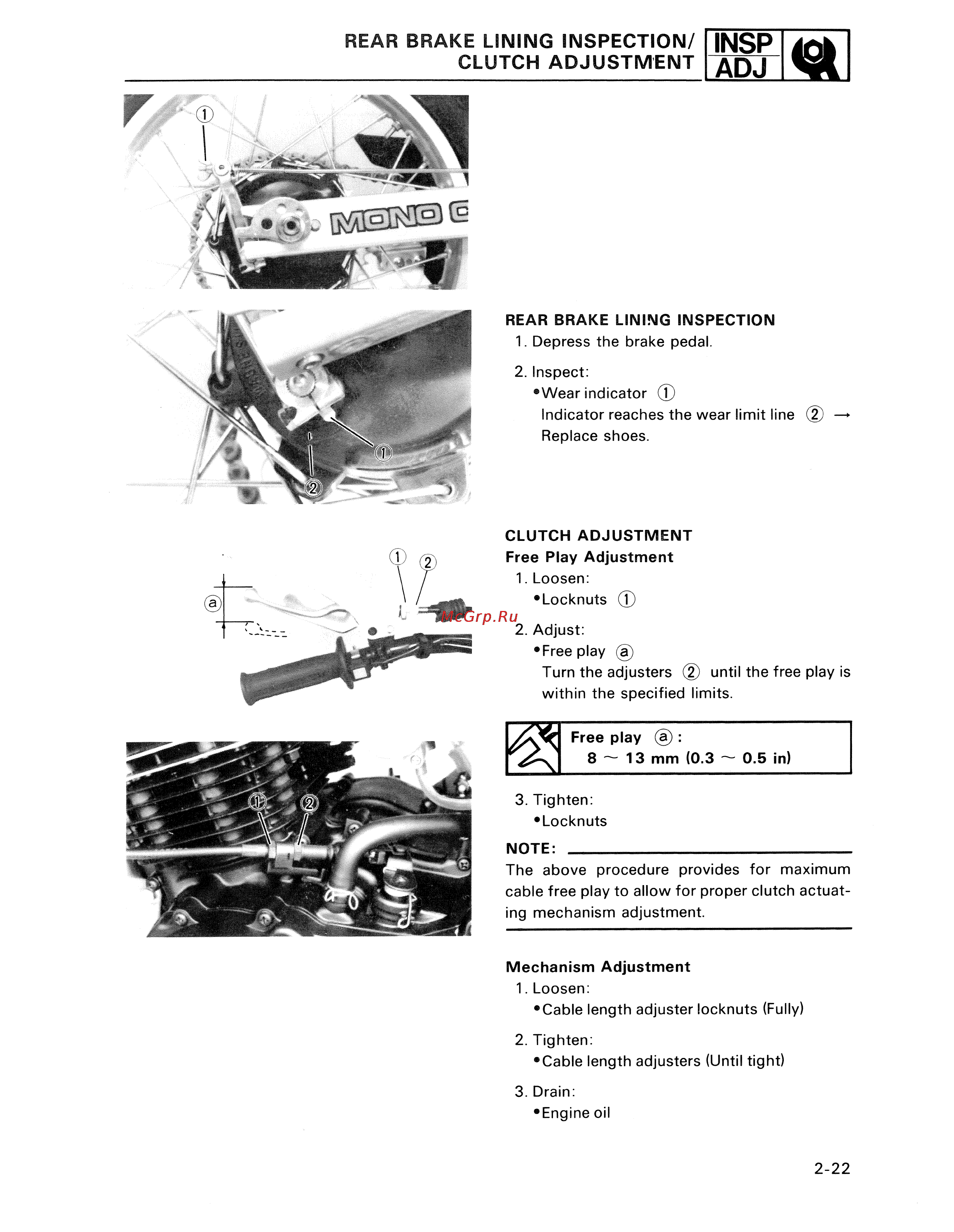

REAR BRAKE LINING INSPECTION IINSP I ioh I CLUTCH ADJUSTMENT pj REAR BRAKE LINING INSPECTION 1 Depress the brake pedal 2 Inspect Wear indicator Indicator reaches the wear limit line 2 Replace shoes CLUTCH ADJUSTMENT Free Play Adjustment 1 Loosen Locknuts T 2 Adjust Free play a Turn the adjusters 2 until the free play is within the specified limits Free play â 8 13 mm 0 3 0 5 in 3 Tighten Locknuts NOTE ______________________________________ The above procedure provides for maximum cable free play to allow for proper clutch actuat ing mechanism adjustment Mechanism Adjustment 1 Loosen Cable length adjuster locknuts Fully 2 Tighten Cable length adjusters Until tight 3 Drain Engine oil 2 22
