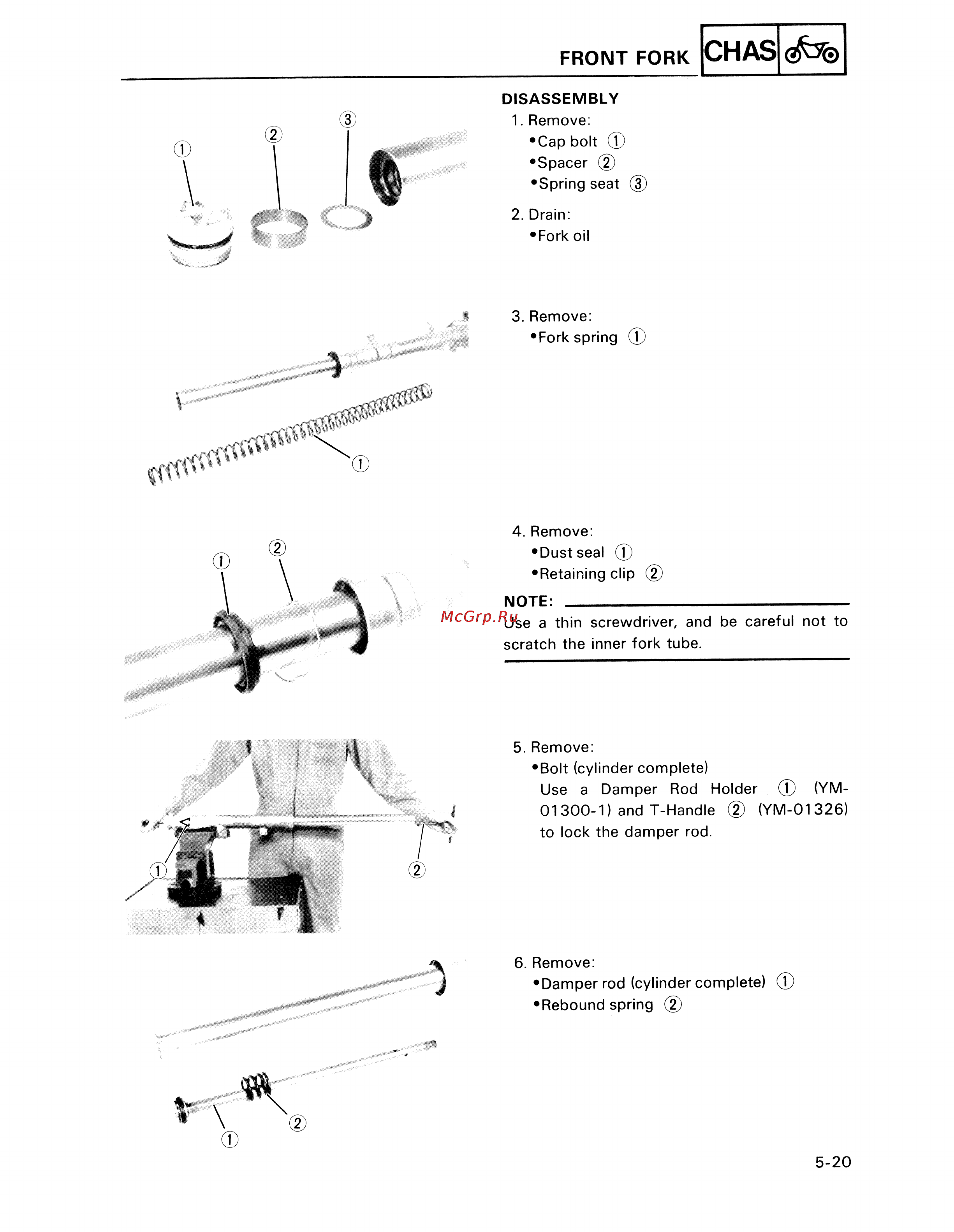

FRONT FORK CHASe fe DISASSEMBLY 1 Remove Cap bolt Spacer Spring seat 2 Drain Fork oil 3 Remove Fork spring T 4 Remove Dust seal T Retaining clip NOTE ______________________________________ Use a thin screwdriver and be careful not to scratch the inner fork tube 5 Remove Bolt cylinder complete Use a 01300 1 Damper and Rod Holder T Handle YM YM 01326 to lock the damper rod 6 Remove Damper rod cylinder complete T Rebound spring 5 20
