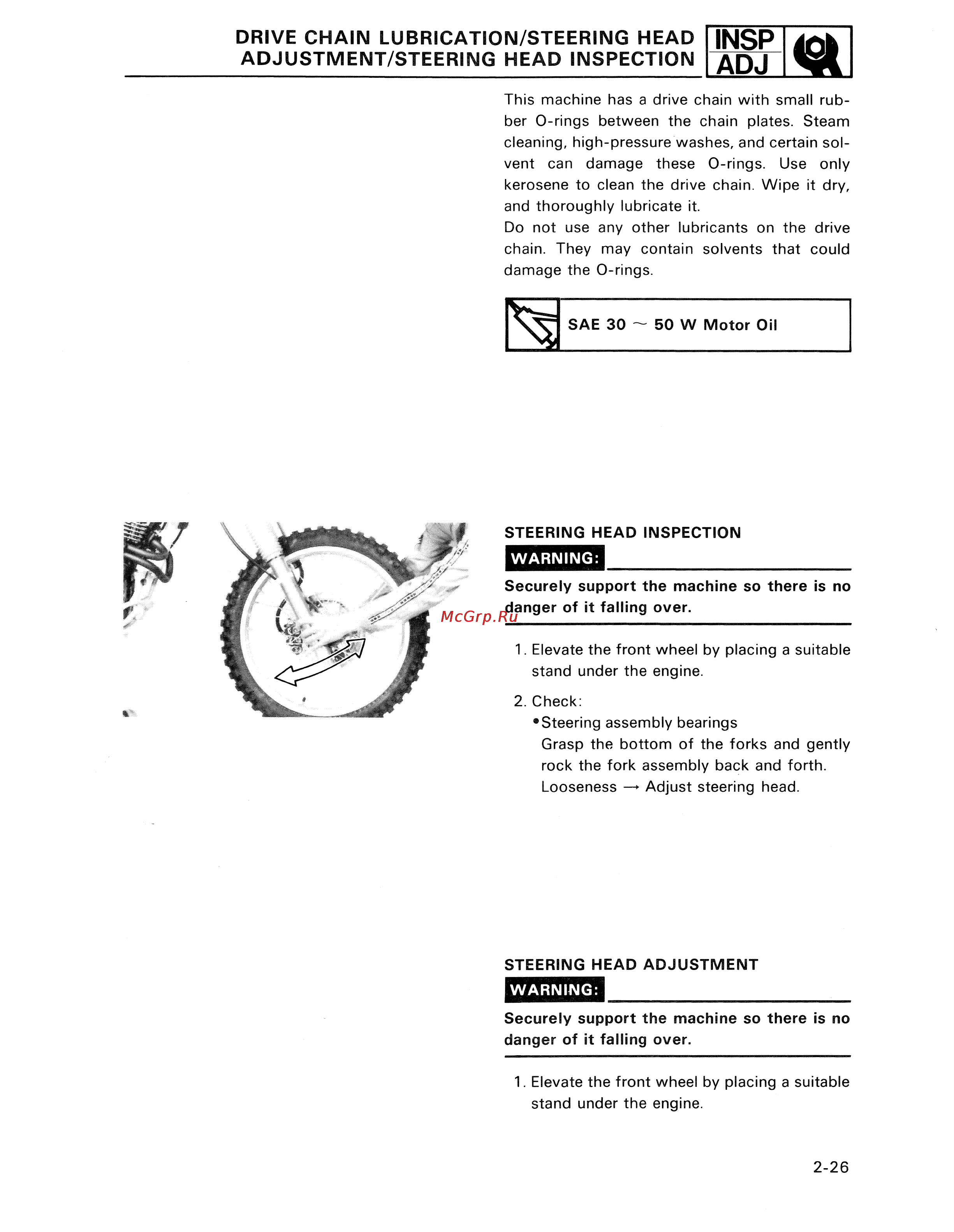

DRIVE CHAIN LUBRICATION STEERING HEAD ADJUSTMENT STEERING HEAD INSPECTION INSP tol ADJ Wl This machine has a drive chain with small rub ber O rings between the chain plates Steam cleaning high pressure washes and certain sol vent can damage these O rings Use only kerosene to clean the drive chain Wipe it dry and thoroughly lubricate it Do not use any other lubricants on the drive chain They may contain solvents that could damage the O rings SAE 30 50 W Motor Oil STEERING HEAD INSPECTION WARNING Securely support the machine so there is no danger of it falling over 1 Elevate the front wheel by placing a suitable stand under the engine 2 Check Steering assembly bearings Grasp the bottom of the forks and gently rock the fork assembly back and forth Looseness Adjust steering head STEERING HEAD ADJUSTMENT WARNING Securely support the machine so there is no danger of it falling over 1 Elevate the front wheel by placing a suitable stand under the engine 2 26
