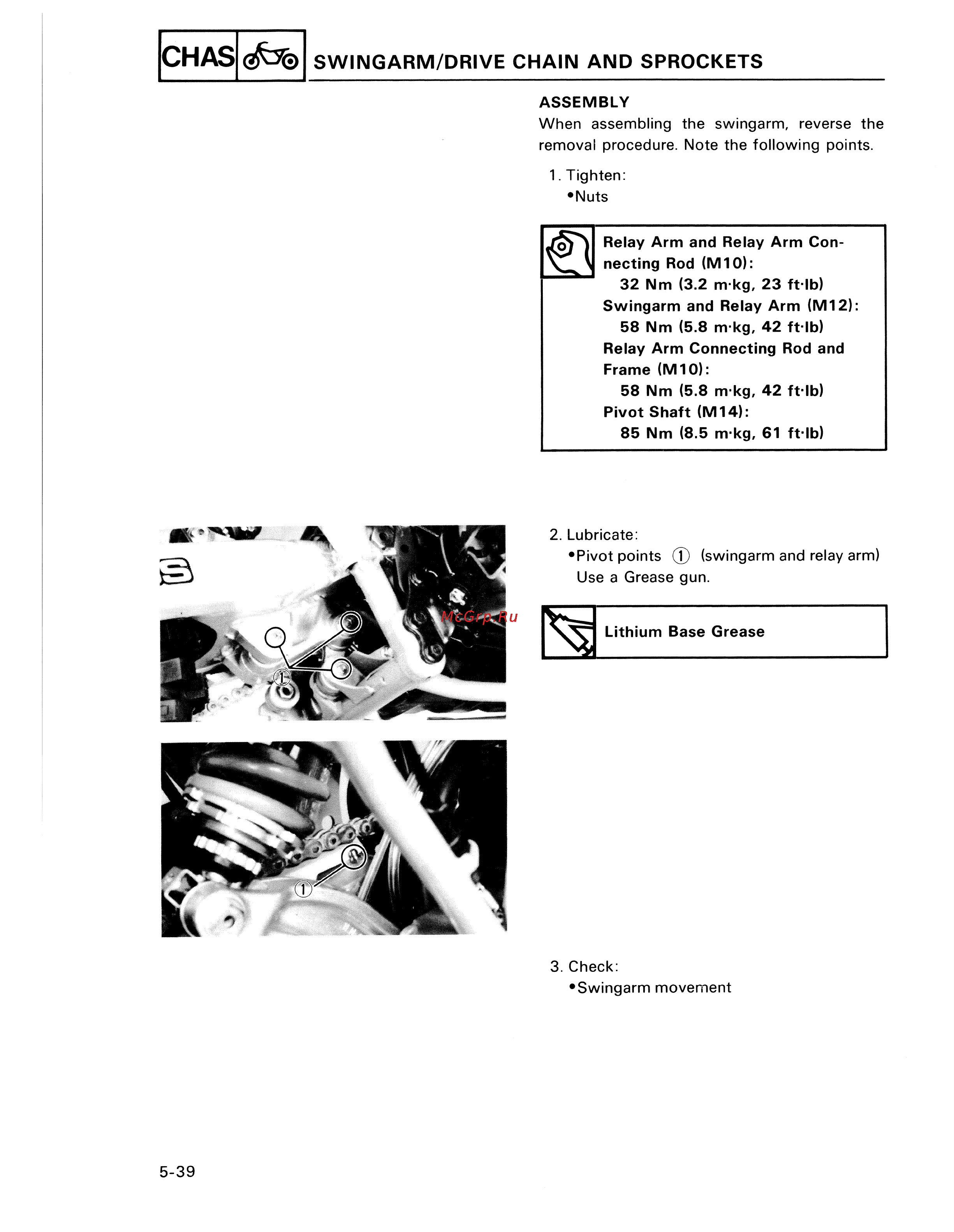

CHAS SWINGARM DRIVE CHAIN AND SPROCKETS ASSEMBLY When assembling the swingarm reverse the removal procedure Note the following points 1 Tighten Nuts Relay Arm and Relay Arm Con necting Rod M10 32 Nm 3 2 mkg 23 ftlb Swingarm and Relay Arm M12 58 Nm 5 8 m kg 42 ft lb Relay Arm Connecting Rod and Frame M10 58 Nm 5 8 m kg 42 ft lb Pivot Shaft M14 85 Nm 8 5 m kg 61 ft lb 2 Lubricate Pivot points swingarm and relay arm Use a Grease gun Lithium Base Grease 3 Check Swingarm movement 5 39
