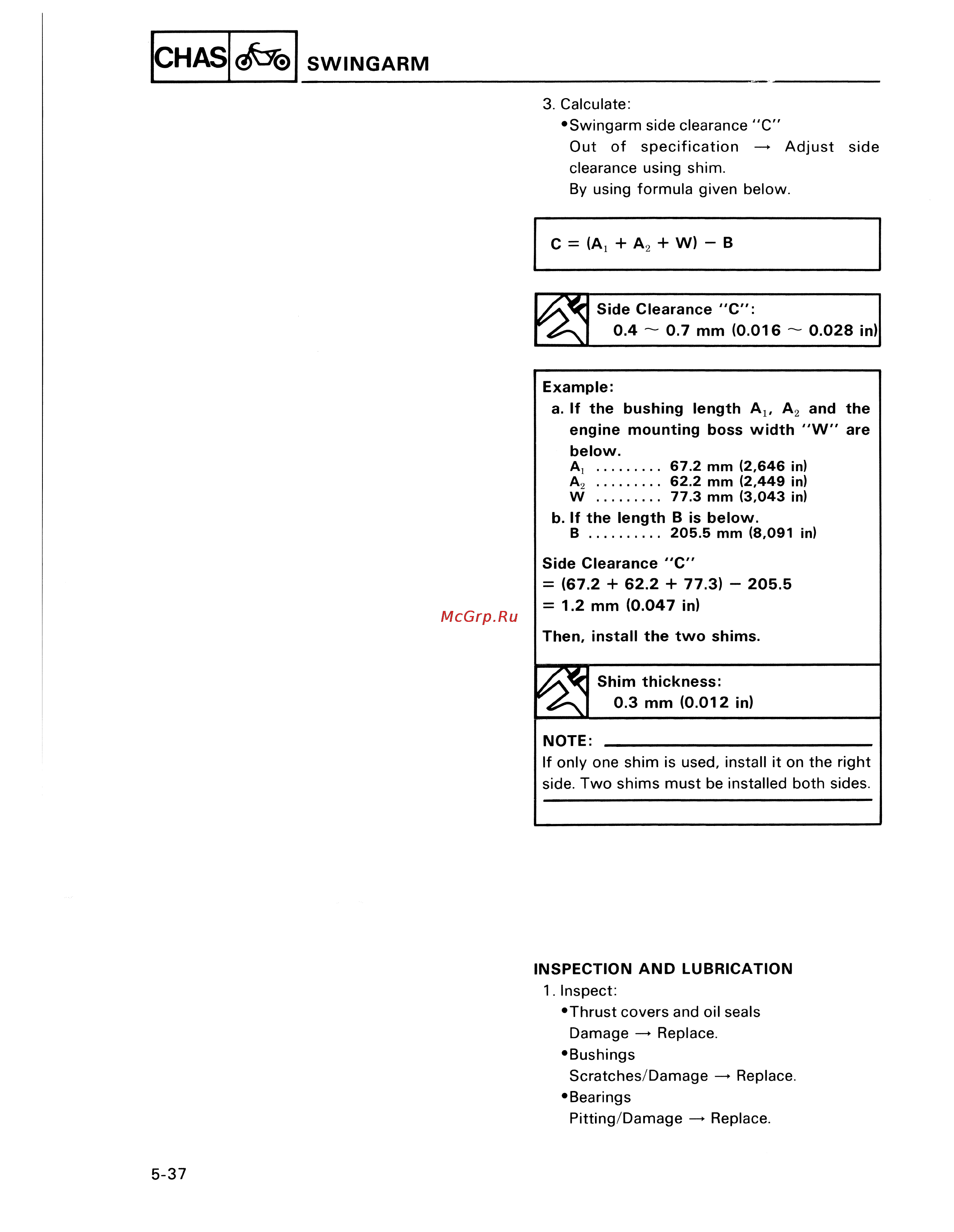

CHASg SWINGARM 3 Calculate Swingarm side clearance C Out of specification Adjust side clearance using shim By using formula given below C Aj A2 W B Side Clearance C 0 4 0 7 mm 0 016 0 028 in Example a If the bushing length At A and the engine mounting boss width W are below Aj 67 2 mm 2 646 in A2 62 2 mm 2 449 in W 77 3 mm 3 043 in b If the length B is below B 205 5 mm 8 091 in Side Clearance C 67 2 62 2 77 3 205 5 1 2 mm 0 047 in Then install the two shims Shim thickness 0 3 mm 0 012 in NOTE _____________________________ If only one shim is used install it on the right side Two shims must be installed both sides INSPECTION AND LUBRICATION 1 Inspect Thrust covers and oil seals Damage Replace Bushings Scratches Damage Replace Bearings Pitting Damage Replace 5 37
