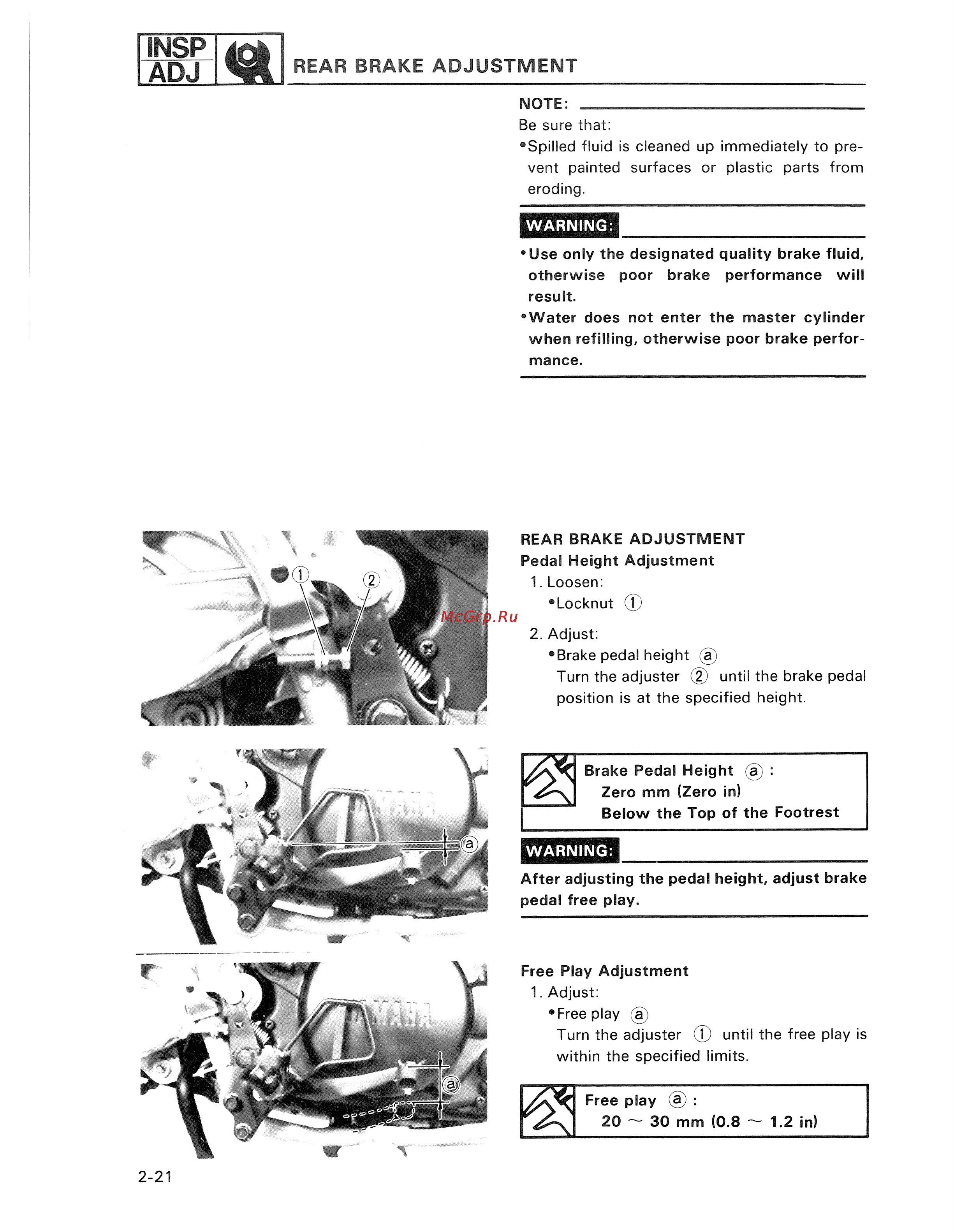

INSP ADJ a REAR BRAKE ADJUSTMENT NOTE ______________________________________ Be sure that Spilled fluid is cleaned up immediately to pre vent painted surfaces or plastic parts from designated quality brake fluid performance will eroding WARNING Use only the otherwise result Water when poor does brake not refilling enter otherwise the master cylinder brake perfor poor mance REAR BRAKE ADJUSTMENT Pedal Height Adjustment 1 Loosen Locknut CD 2 Adjust Brake pedal height a Turn the adjuster until the brake pedal position is at the specified height Brake Pedal Height a Zero mm Zero in Below the Top of the Footrest WARNING After adjusting the pedal height adjust brake pedal free play Free Play Adjustment 1 Adjust Free play a Turn the adjuster T until the free play is within the specified limits Free play a 20 30 mm 0 8 1 2 in 2 21
