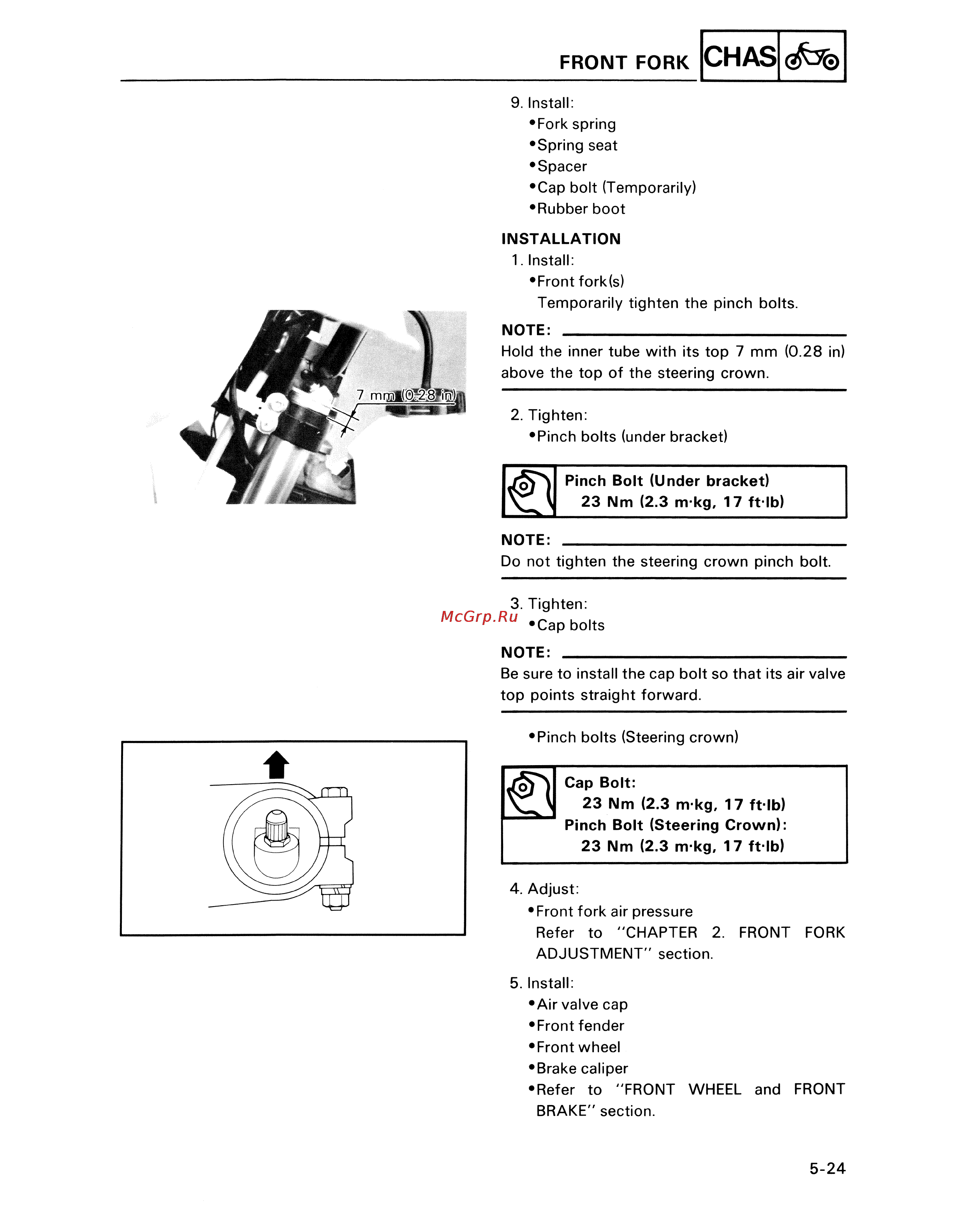

FRONT FORK 9 Install Fork spring Spring seat Spacer Cap bolt Temporarily Rubber boot INSTALLATION 1 Install Front fork s Temporarily tighten the pinch bolts NOTE ______________________________________ Hold the inner tube with its top 7 mm 0 28 in above the top of the steering crown 2 Tighten Pinch bolts under bracket Pinch Bolt Under bracket 23 Nm 2 3 m kg 17 ftlb NOTE ______________________________________ Do not tighten the steering crown pinch bolt 3 Tighten Cap bolts NOTE ______________________________________ Be sure to install the cap bolt so that its air valve top points straight forward Pinch bolts Steering crown Jo I Cap Bolt 23 Nm 2 3 m kg 17 ft lb Pinch Bolt Steering Crown 23 Nm 2 3 m kg 17 ft lb 4 Adjust Front fork air pressure Refer to CHAPTER 2 FRONT FORK ADJUSTMENT section 5 Install Air valve cap Front fender Front wheel Brake caliper Refer to FRONT WHEEL and FRONT BRAKE section 5 24
