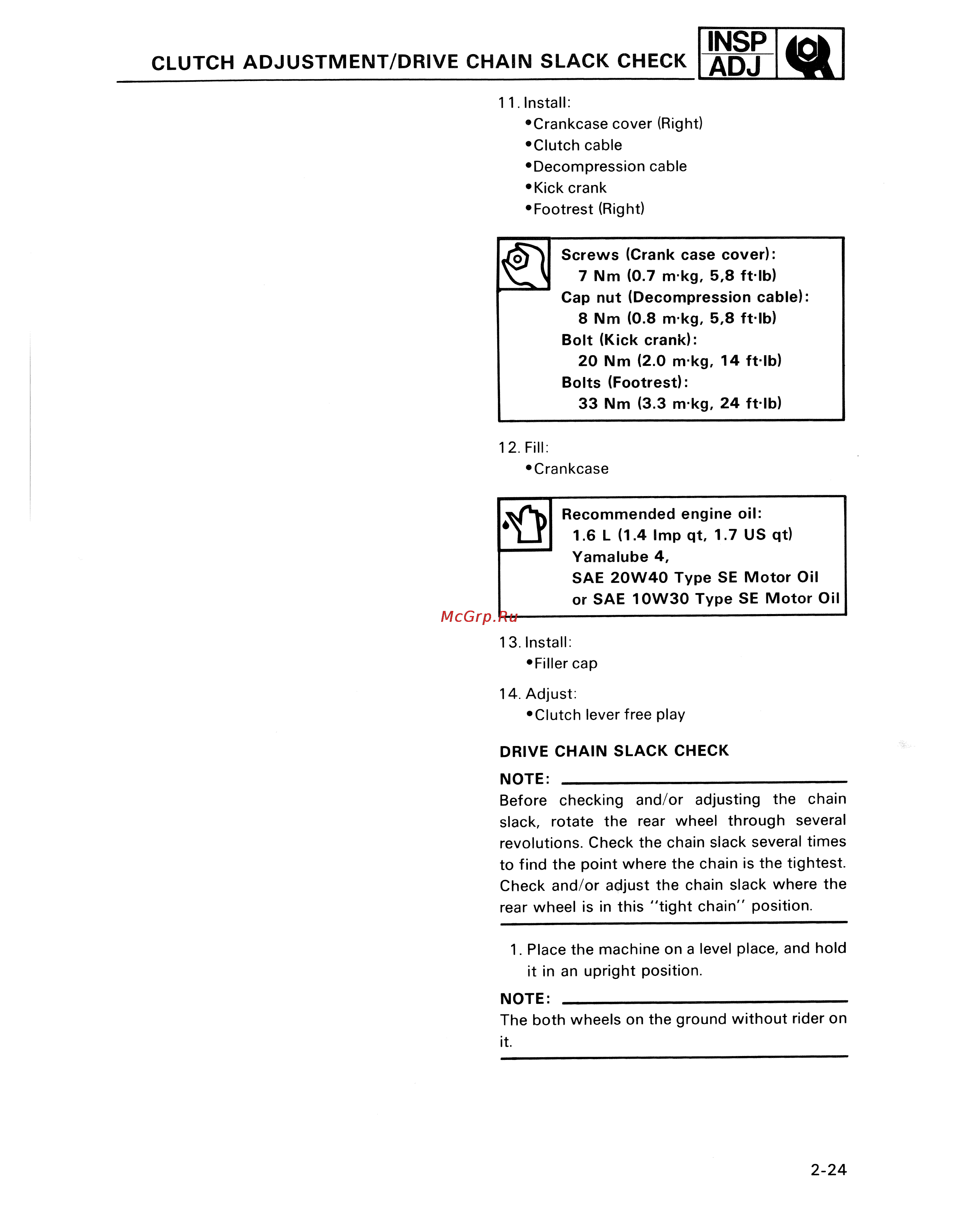

CLUTCH ADJUSTMENT DRIVE CHAIN SLACK CHECK 11 Install Crankcase cover Right Clutch cable Decompression cable Kick crank Footrest Right Screws Crank case cover 7 Nm 0 7 m kg 5 8 ftlb Cap nut Decompression cable 8 Nm 0 8 m kg 5 8 ft lb Bolt Kick crank 20 Nm 2 0 m kg 14 ft lb Bolts Footrest 33 Nm 3 3 m kg 24 ft lb 12 Fill Crankcase Recommended engine oil LJ 1 6 L 1 4 Imp qt 1 7 US qt Yamalube 4 SAE 20W40 Type SE Motor Oil or SAE 10W30 Type SE Motor Oil 13 Install Filler cap 14 Adjust Clutch lever free play DRIVE CHAIN SLACK CHECK NOTE ______________________________________ Before checking and or adjusting the chain slack rotate the rear wheel through several revolutions Check the chain slack several times to find the point where the chain is the tightest Check and or adjust the chain slack where the rear wheel is in this tight chain position 1 Place the machine on a level place and hold it in an upright position NOTE ______________________________________ The both wheels on the ground without rider on it 2 24
