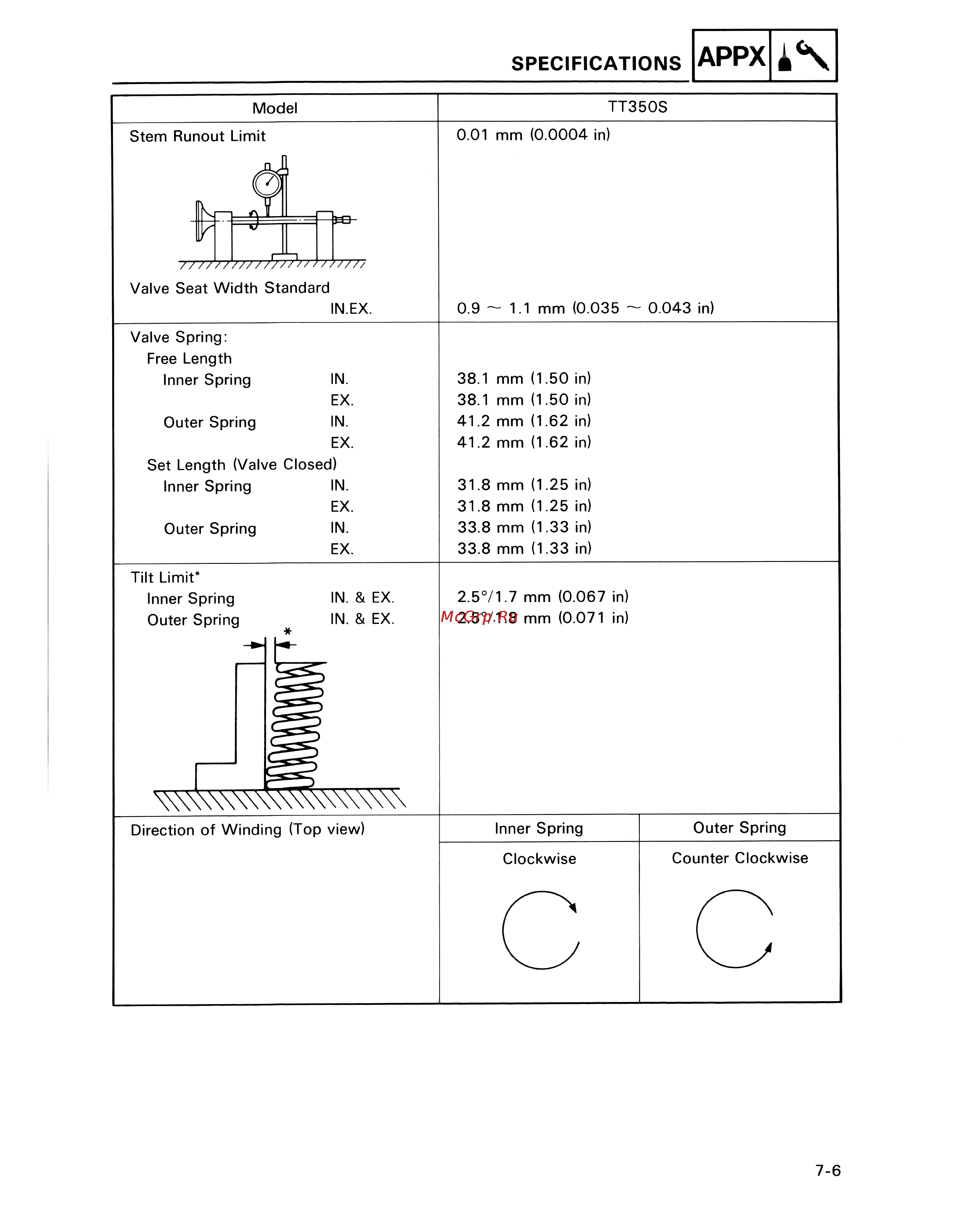

SPECIFICATIONS APPX X S TT350S Model 0 01 mm 0 0004 in Stem Rune Ut I Jmit 1 œt Valve Seat Width Standard IN EX 0 9 1 1 mm 0 035 0 043 in Valve Spring Free Length Inner Spring IN EX Outer Spring IN EX 38 1 mm 1 50 in 38 1 mm 1 50 in 41 2 mm 1 62 in 41 2 mm 1 62 in Set Length Valve Closed Inner Spring IN EX 31 8 mm 1 25 in Outer Spring IN EX 33 8 mm 1 33 in 31 8 mm 1 25 in 33 8 mm 1 33 in Tilt Limit Inner Sp ring Outer S rinc3 Direction of Winding Top view IN EX 2 571 7 mm 0 067 in IN EX 2 571 8 mm 0 071 in Inner Spring Outer Spring Clockwise Counter Clockwise 7 6
