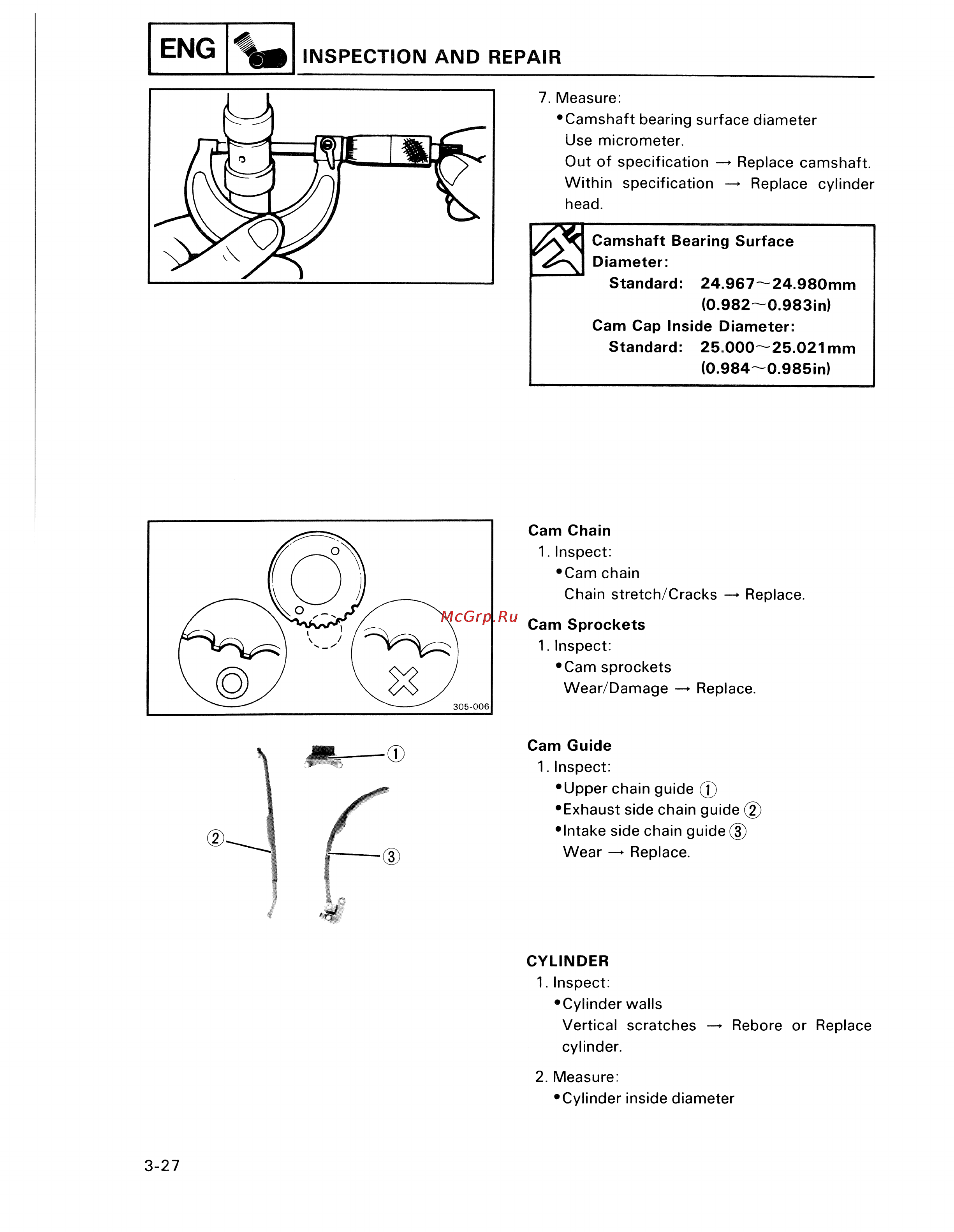

INSPECTION AND REPAIR 7 Measure Camshaft bearing surface diameter Use micrometer Out of specification Replace camshaft Within specification Replace cylinder head Camshaft Bearing Surface Diameter Standard 24 967 24 980mm 0 982 0 983in Cam Cap Inside Diameter Standard 25 000 25 021 mm 0 984 0 985in Cam Chain 1 Inspect Cam chain Chain stretch Cracks Replace Cam Sprockets 1 Inspect Cam sprockets Wear Damage Replace Cam Guide 1 Inspect Upper chain guide T Exhaust side chain guide 2 Intake side chain guide 3 Wear Replace CYLINDER 1 Inspect Cylinder walls Vertical scratches cylinder 2 Measure Cylinder inside diameter 3 27 Rebore or Replace
