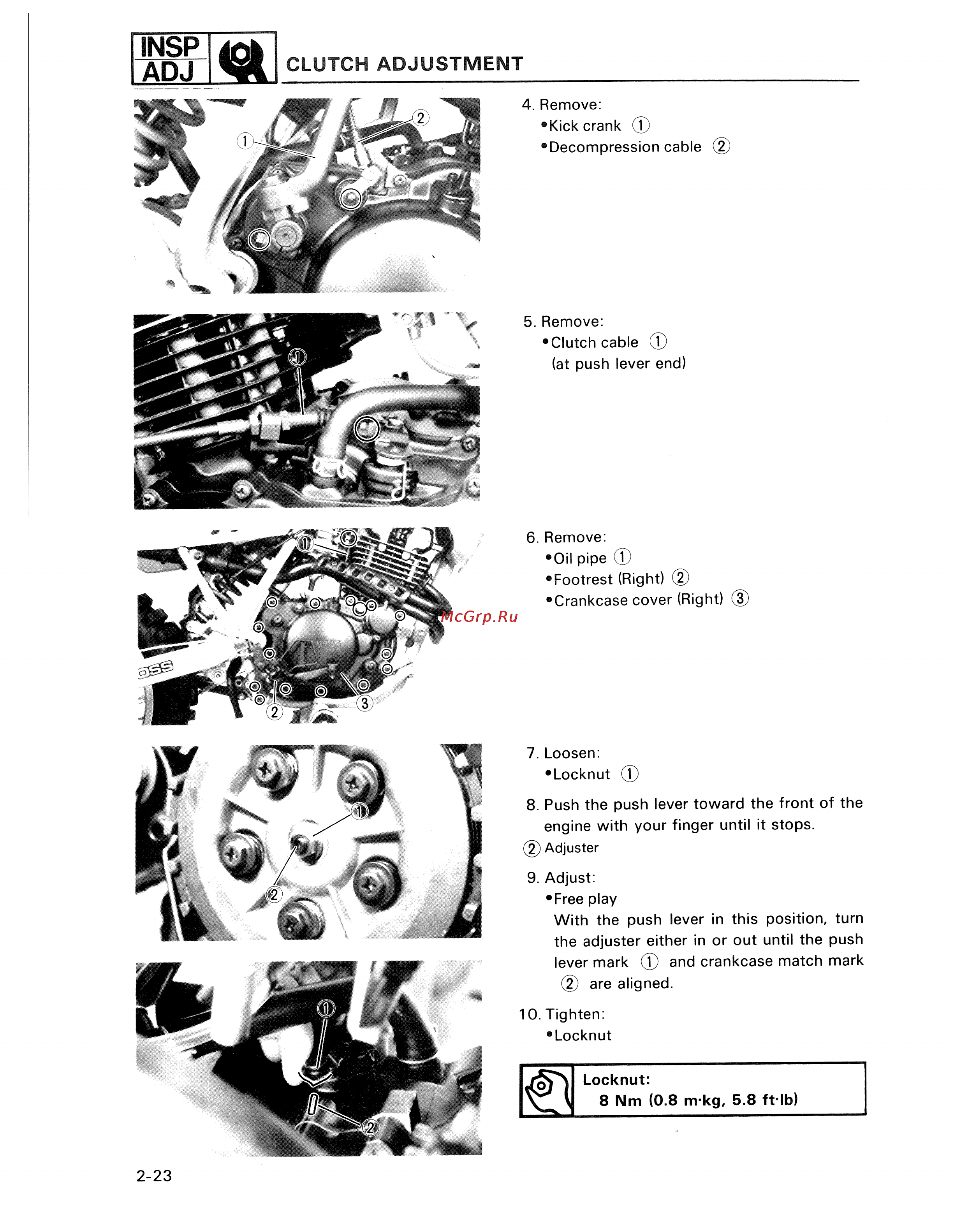

CLUTCH ADJUSTMENT 4 Remove Kick crank T Decompression cable 5 Remove Clutch cable Ï at push lever end 6 Remove Oil pipe Footrest Right Crankcase cover Right 3 7 Loosen Locknut T 8 Push the push lever toward the front of the engine with your finger until it stops 2 Adjuster 9 Adjust Free play With the push lever in this position turn the adjuster either in or out until the push lever mark and crankcase match mark are aligned 10 Tighten Locknut 2 23
