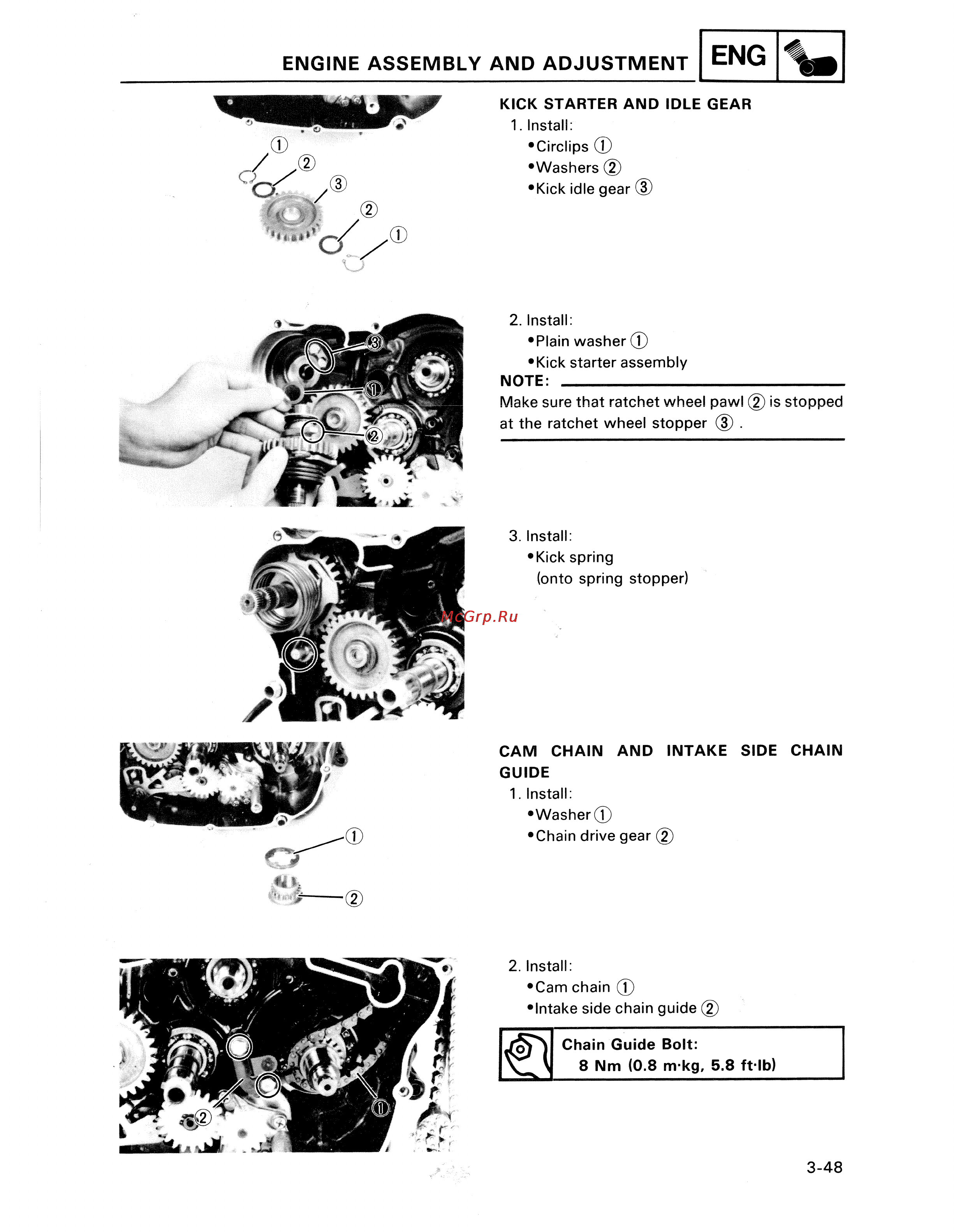

ENG ENGINE ASSEMBLY AND ADJUSTMENT KICK STARTER AND IDLE GEAR 1 Install Circlips Washers Kick idle gear 3 2 Install Plain washer Kick starter assembly NOTE ______________________________________ Make sure that ratchet wheel pawl is stopped at the ratchet wheel stopper 3 Install Kick spring onto spring stopper CAM CHAIN AND INTAKE SIDE CHAIN GUIDE 1 Install Washer Chain drive gear 2 2 Install Cam chain Intake side chain guide Chain Guide Bolt 8 Nm 0 8 rn kg 5 8 ft lb 3 48
