Yamaha TDM850 (1996) [212/229] Specification
![Yamaha TDM850 (1996) [212/229] Specification](/views2/1121413/page212/bgd4.png)
Содержание
- Service manual 2
- Tt350s 2
- Caution 4
- How to use this manual 4
- Notice 4
- Particularly important information 4
- Exploded diagram 5
- Manual format 5
- Symbol marks refer to the illustration 6
- Adj 1 real 2 authentic not artificial 3 yamaha 7
- Genuine 7
- Chapter 1 10
- General information 10
- General information 11
- Machine identification 11
- Important information 12
- Special tools 13
- Special tools 14
- For chassis service 18
- For electrical components 18
- Special tools 18
- Chapter 2 20
- Insp toi adj wil 20
- Periodic inspections and adjustements 20
- Insp tol i adj wil 22
- Periodic maintenance lubrication 22
- Engine 23
- Valve clearance adjustment 23
- Valve clearance adjustment 24
- Adjustment 25
- Caution ___________________________ 25
- Insp lol i adj wl 26
- Valve clearance adjustment 26
- Exhaust 27
- Installed pad number 27
- Intake 27
- Valve clearance adjustment 27
- Valve clearance adjustment 28
- Decompression cable adjustment 29
- Insp adj 30
- Idle speed adjustment throttle cable adjustment 31
- Insp adj 31
- Air filter cleaning 32
- Caution _____________________________ 32
- Insp adj 32
- Air filter cleaning engine oil level inspection 33
- Engine oil level inspection 34
- Engine oil replacement 34
- Insp adj 34
- Caution _____________________________ 35
- Engine oil replacement 35
- Caution ____ _________________________ 36
- Engine oil replacement oil strainer cleaning 36
- Insp i adj iwll 36
- Insp adj m 37
- Oil strainer cleaning compression pressure measurement 37
- Compression pressure measurement 38
- Adj wl 39
- Chassis 39
- Fuel cock cleaning 39
- Caution _____________________________ 40
- Front brake pad inspection brake fluid level 40
- Insp qi adj 40
- Inspection front brake adjustment 40
- Insp ad 41
- Rear brake adjustment 41
- Clutch adjustment 42
- Rear brake lining inspection 42
- Clutch adjustment 43
- Clutch adjustment drive chain slack check 44
- Drive chain slack check drive chain slack adjustment drive chain lubrication 45
- Insp toi adj iwl 45
- Adj wl 46
- Drive chain lubrication steering head adjustment steering head inspection 46
- Insp tol 46
- Insp adj 1 47
- Steering head adjustment front fork oil change 47
- Front fork oil change 48
- Insp joi adj 48
- Front fork oil change front fork adjustment 49
- Front fork adjustment 50
- Insp adj iwll 50
- Adj iwl 51
- Caution ___________________________ 51
- Rear shock absorber adjustment 51
- Caution ___________________________ 52
- I adj wil 52
- Rear shock absorber adjustment 52
- Wheel bearings check cable inspection and lubrication swingarm and relay arm lubrication 53
- Adj wc 54
- Insp toi 54
- Tires check 54
- Electrical 55
- Wheels check ignition timing check 55
- Ignition timing check battery inspection 56
- Insp adj wil 56
- Adj iwl 57
- Battery inspection 57
- Brake light switch adjustment 58
- Insp toi adj 58
- Spark plug inspection 58
- Chapter 3 60
- Engine overhaul 60
- Engine overhaul 63
- Engine removal 63
- Engine removal 64
- Engine removal 65
- Engine removal 66
- Engine removal 68
- Engine disassembly 69
- Caution _____________________________ 70
- Engine disassembly 70
- Engine disassembly 71
- Caution _____________________________ 72
- Engine disassembly 72
- Engine disassembly 73
- Engine disassembly 74
- Engine disassembly 75
- Engine disassembly 76
- Engine disassembly 77
- Engine disassembly 78
- Caution _____________________________ 79
- Engine disassembly 79
- Inspection and repair 80
- Inspection and repair 81
- Engine disassembly 82
- Engine disassembly 83
- Caution _____________________________ 84
- Inspection and repair 84
- Inspection and repair 85
- Inspection and repair 86
- Inspection and repair 87
- Inspection and repair 88
- Inspection and repair 89
- Inspection and repair 90
- Inspection and repair 91
- Inspection and repair 92
- Inspection and repair 93
- Inspection and repair 94
- Inspection and repair 95
- Inspection and repair 96
- Inspection and repair 97
- Caution _____________________________ 98
- Inspection and repair 98
- Inspection and repair 99
- Inspection and repair 100
- Engine assembly and adjustment 101
- Caution _____________________________ 102
- Engine assembly and adjustment 102
- Engine assembly and adjustment 103
- Engine assembly and adjustment 104
- Engine assembly and adjustment 105
- Caution _____________________________ 106
- Engine assembly and adjustment 106
- Engine assembly and adjustment 107
- Engine assembly and adjustment 108
- Engine assembly and adjustment 109
- Engine assembly and adjustment 110
- Engine assembly and adjustment 111
- Engine assembly and adjustment 112
- Engine assembly and adjustment 113
- Engine assembly and adjustment 114
- Engine assembly and adjustment 115
- Engine assembly and adjustment 116
- Engine assembly and adjustment 117
- Engine assembly and adjustment 118
- Engine assembly and adjustment 119
- Engine assembly and adjustment 120
- Engine assembly and adjustment 121
- Caution _____________________________ 122
- Caution ______________________________ 122
- Engine assembly and adjustment 122
- Caution _____________________________ 123
- Engine assembly and adjustment 123
- Eng 10 124
- Engine assembly and adjustment 124
- Engine assembly and adjustment 125
- Engine assembly and adjustment 126
- Engine assembly and adjustment 127
- Engine assembly and adjustment 128
- Engine assembly and adjustment 129
- Carburetion 130
- Chapter 4 130
- Carburetion 131
- Coasting enricher 131
- Carb if 132
- Coasting enriche 132
- Carburetor 133
- Carbureto 134
- Carburetor 135
- Carbureto 136
- Carburetor 137
- Carbureto 138
- Carburetor 139
- Caution _____________________________ 139
- Carbureto 140
- Carburetor 141
- Carbureto 142
- Chapter 5 145
- Chassis 145
- Chassis 147
- Front wheel 147
- Chasg t 148
- Front whee 148
- Caution ___________________________ 149
- Caution _____________________________ 149
- Front wheel 149
- Chasg r 150
- Front whee 150
- Chas s 151
- Rear wheel 151
- Rear whee 152
- Chasgfcfe 153
- Rear wheel 153
- Rear wheel 154
- Chasefafe 155
- Front brake 155
- Front brak 156
- Caution _____________________________ 157
- Front wheel 157
- Front brake 158
- Chas 3 159
- Front brake 159
- Front brak 160
- Chasc y 161
- Front brake 161
- Front brake 162
- Chasg fe 163
- Front brake 163
- Chas 7 164
- Front fork 164
- Chas 7 165
- Front fork 165
- Chase fe 166
- Front for 166
- Chasc y 167
- Front fork 167
- Front for 168
- Front fork 169
- Снабс у 169
- Front fork 170
- Steering head 171
- Chasg t 172
- Steering hea 172
- Steering head 173
- Steering hea 174
- Chase fe 175
- Rear shock absorber 175
- Rear shock absorber monocross suspension de carbn system 175
- Caution ___________________________ 176
- Chas fe 176
- Rear shock absorbe 176
- Caution _____________________________ 177
- Rear shock absorber 177
- Rear shock absorbe 178
- Caution _____________________________ 179
- Rear shock absorber 179
- Swingarm 180
- Chasg j 182
- Swingarm 182
- Swingarm 183
- Swingarm 184
- Swingarm drive chain and sprockets 185
- Chas 3fe 186
- Drive chain and sprocket 186
- Drive chain and sprockets 186
- Drive chain and sprockets 187
- Chapter 6 electrical 188
- Elec h 188
- Elec s 189
- Electrical 189
- Circuit diagram 190
- Electrical components 191
- Elec s 193
- Ignition system 194
- Ignition system 195
- Caution _____________________________ 196
- Ignition system 196
- Ignition system 197
- Elec s 198
- Ignition system 198
- Elec 9 199
- Lighting system 200
- Lighting system 201
- Caution _____________________________ 202
- Elec s 202
- Lighting system 202
- Appx s 204
- Chapter 7 appendices 204
- Appendices 205
- Appx a 205
- General specifications 205
- Specifications 205
- Specification 206
- Specifications 207
- Appx as 208
- Maintenance specifications engine 208
- Specification 208
- Specifications 209
- Appx x s 210
- Specification 210
- Appx s 211
- Specifications 211
- Specification 212
- Specifications 213
- Specification 214
- Specifications 215
- Chassis 216
- Specification 216
- Specifications 217
- Specification 218
- Electrical 219
- Specifications 219
- Specification 220
- Appx 1 221
- Definition of units 221
- General torque specification definition of units 221
- General torque specifications 221
- Cable routing 224
- Appx x s 225
- Cable routing 225
- Cable routin 226
- Appx s 227
- Cable routing 227
- Tt350s wiring diagram 228
Похожие устройства
- Tesy GCV9S (L) 10044 20 B11 TSR Инструкция по эксплуатации
- Yamaha TDM850 (1999) Инструкция по эксплуатации
- Tesy GCV9S (L) 12044 20 B11 TSRP Инструкция по эксплуатации
- Yamaha SZR660 (1995) Инструкция по эксплуатации
- Tesy GCV9S (L) 15044 20 B11 TSRP Инструкция по эксплуатации
- Yamaha SUPER TENERE XTZ750 Инструкция по эксплуатации
- Tesy GCA 1020 SRC Инструкция по эксплуатации
- Yamaha RD500LC (1985) Инструкция по эксплуатации
- Tesy GCA 1520 SRC Инструкция по эксплуатации
- Yamaha RD350LC (1986) Инструкция по эксплуатации
- Tesy GCA 1015 K51 SRCM Инструкция по эксплуатации
- Yamaha RD350LC (1982) Инструкция по эксплуатации
- Tesy GCU 1020 SRC Инструкция по эксплуатации
- Yamaha NEOS 50 YN50 (2002) Инструкция по эксплуатации
- Tesy GCU 1520 SRC Инструкция по эксплуатации
- Yamaha JOG CS50 (Z) (2002) Инструкция по эксплуатации
- Tesy CB 1507 E01 R Инструкция по эксплуатации
- Yamaha FZR1000 (1993) Инструкция по эксплуатации
- Tesy CB 2009 E01 R Инструкция по эксплуатации
- Yamaha FJR1300(N) (2001) Инструкция по эксплуатации

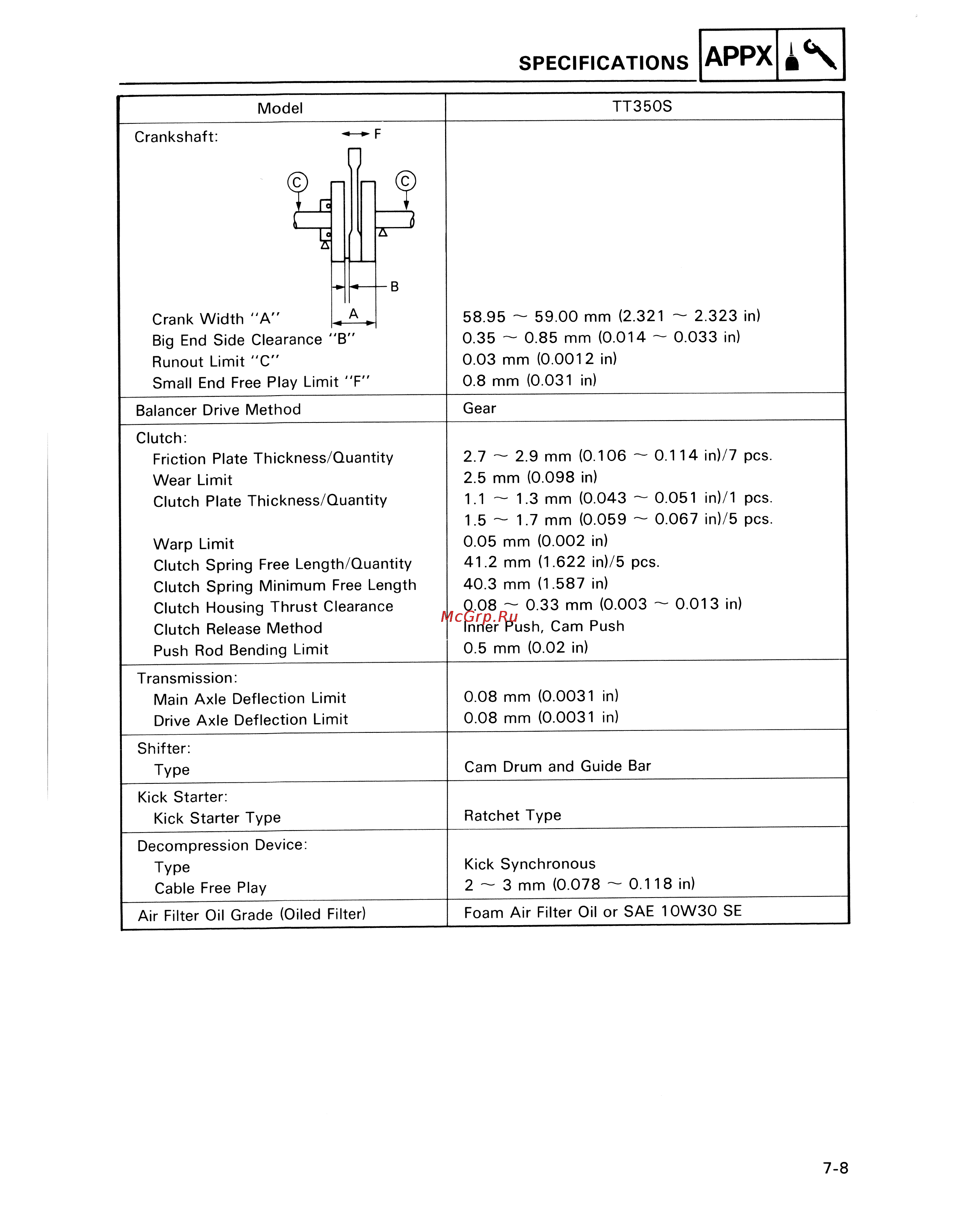

SPECIFICATIONS APPX S TT350S Model Crankshaft 91 J B 58 95 59 00 mm 2 321 2 323 in Crank Width A r Big End Side Clearance Runout Limit C Small End Free Play Lim B 0 35 0 85 mm 0 014 0 033 in 0 03 mm 0 0012 in t F 0 8 mm 0 031 in Balancer Drive Method Gear Clutch Friction Plate Thickness Quantity 2 7 2 9 mm 0 106 0 114 in 7 pcs Wear Limit Clutch Plate Thickness Quantity 2 5 mm 0 098 in 1 1 1 3 mm 0 043 0 051 in 1 pcs Warp Limit Clutch Spring Free Length Quantity 0 05 mm 0 002 in 41 2 mm 1 622 in 5 pcs Clutch Spring Minimum Free Length 40 3 mm 1 587 in 0 08 0 33 mm 0 003 0 013 in 1 5 1 7 mm 0 059 0 067 in 5 pcs Clutch Housing Thrust Clearance Clutch Release Method Inner Push Cam Push Push Rod Bending Limit 0 5 mm 0 02 in Transmission Main Axle Deflection Limit 0 08 mm 0 0031 in Drive Axle Deflection Limit 0 08 mm 0 0031 in Shifter Type _________________________________ Cam Drum and Guide Bar Kick Starter Kick Starter Type Ratchet Type Decompression Device Type Cable Free Play Air Filter Oil Grade Oiled Filter Kick Synchronous 2 3 mm 0 078 0 1 18 in Foam Air Filter Oil or SAE 10W30 SE 7 8
