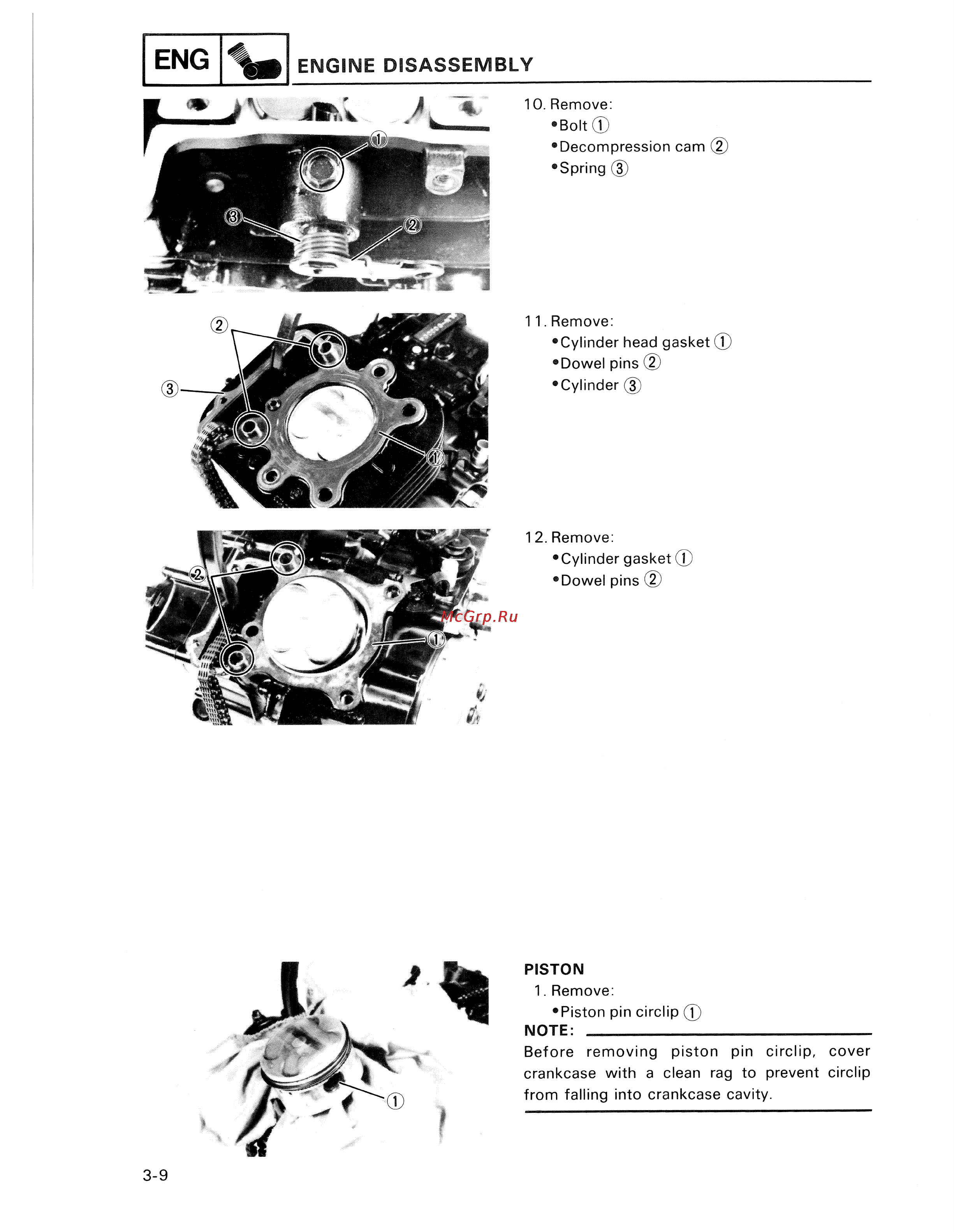

ENG ENGINE DISASSEMBLY 10 Remove Bolt Decompression cam 2 Spring 3 11 Remove Cylinder head gasket CD Dowel pins Cylinder 1 2 Remove Cylinder gasket D Dowel pins PISTON 1 Remove Piston pin circlip T NOTE ______________________________________ Before removing piston pin circlip cover crankcase with a clean rag from falling into crankcase cavity 3 9 to prevent circlip
