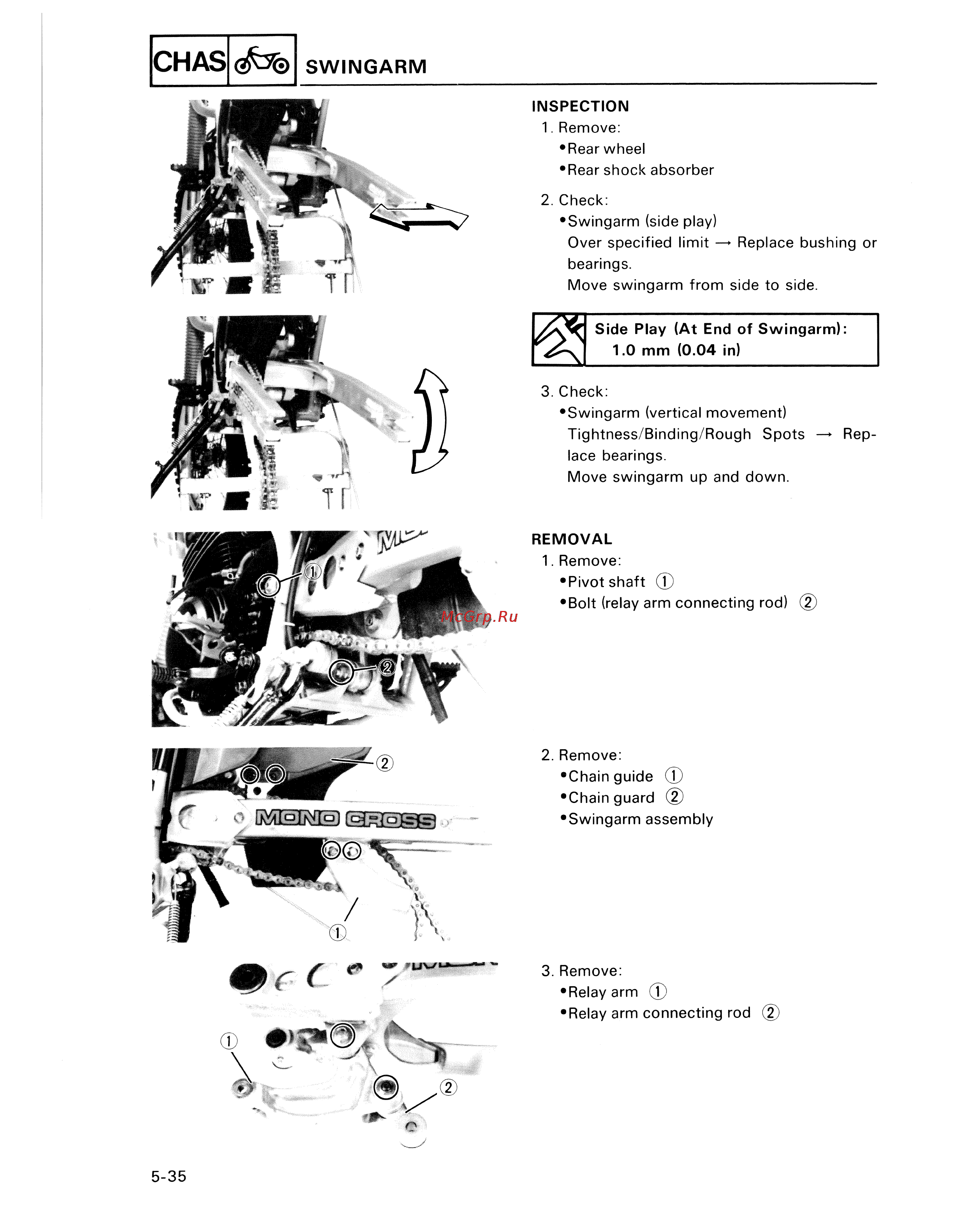

INSPECTION 1 Remove Rear wheel Rear shock absorber 2 Check Swingarm side play Over specified limit Replace bushing or bearings Move swingarm from side to side Side Play At End of Swingarm 1 0 mm 0 04 in 3 Check Swingarm vertical movement Tightness Binding Rough Spots lace bearings Move swingarm up and down REMOVAL 1 Remove Pivot shaft CD Bolt relay arm connecting rod 2 2 Remove Chain guide D Chain guard 2 Swingarm assembly 3 Remove Relay arm Î Relay arm connecting rod 2 5 35 Rep
