On this page, a list of MAC notification messages will be displayed.

VLAN

802.1Q VLAN

This window is used to display and configure the VLAN settings on this Switch.

To view the following window, click L2 Features > VLAN > 802.1Q VLAN, as shown below:

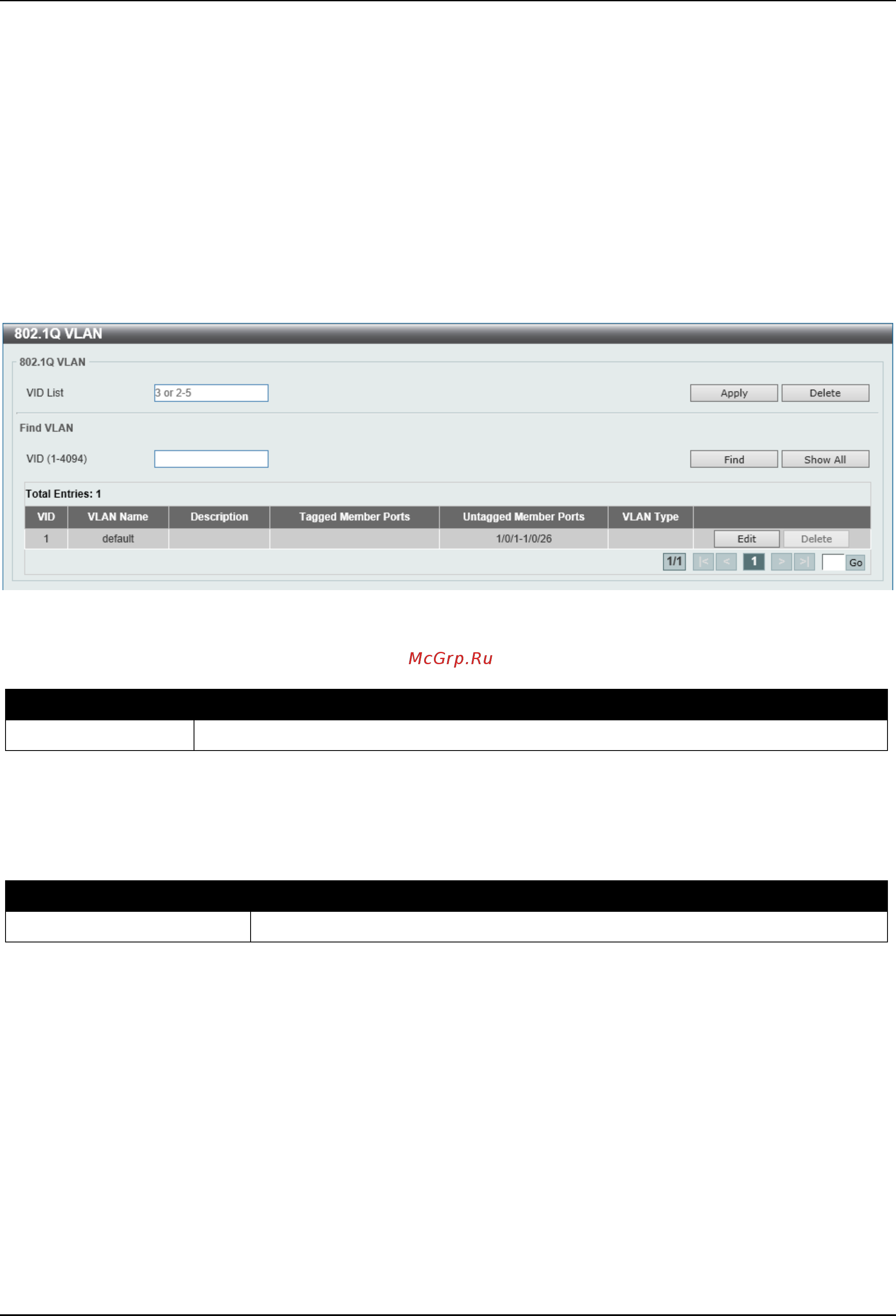

Figure 5-9 802.1Q VLAN Window

The fields that can be configured in 802.1Q VLAN are described below:

Parameter Description

VID List

Enter the VLAN ID list that will be created here.

Click the Apply button to create a new 802.1Q VLAN.

Click the Delete button to remove the 802.1Q VLAN specified.

The fields that can be configured in Find VLAN are described below:

Parameter Description

VID

Enter the VLAN ID that will be displayed here.

Click the Find button to locate a specific entry based on the information entered.

Click the Show All button to locate all the entries.

Click the Edit button to re-configure the specific entry.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

802.1v Protocol VLAN

Protocol VLAN Profile

This window is used to display and configure 802.1v protocol VLAN profiles. The 802.1v Protocol VLAN group settings

support multiple VLANs for each protocol and allow the user to configure untagged ports of different protocols on the
