DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
254
VRF
VRF Settings
This window is used to display and configure the Virtual Routing and Forwarding (VRF) settings.
To view the following window, click L3 Features > VRF > VRF Settings, as shown below:

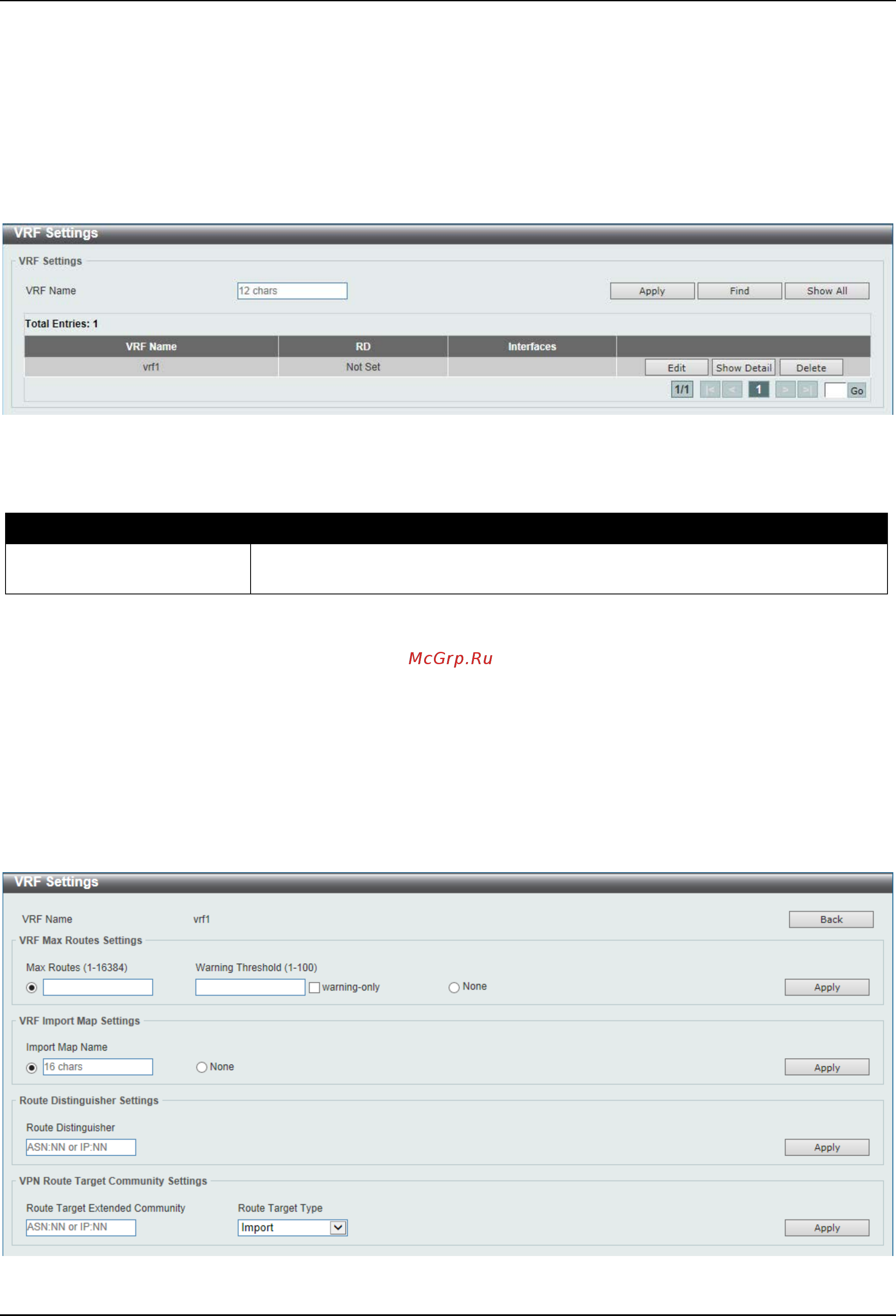

Figure 6-34 VRF Settings Window
The fields that can be configured are described below:
Parameter Description
VRF Name
Enter the name of the VRF instance here. This name can be up to 12 characters
long.
Click the Apply button to accept the changes made.
Click the Find button to locate a specific entry based on the information entered.
Click the Show All button to display all the available entries.
Click the Edit button to re-configure the specific entry.
Click the Show Detail button to view more detailed information about the specific entry.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Edit button, the following page will appear.
Figure 6-35 VRF Settings (Edit) Window
