Parameter Description

○ Exact Match - Select this option to specify that an exact match is

required. All of the communities and only those communities specified

must be present.

○ L2VPN Prefix - Enter the Layer 2 VPN prefix here.

• Community List - Specifies to display BGP routing information related to the

specified BGP community list.

○ Community List - Enter the name of the BGP community list here.

This name can be up to 16 characters long.

○ Exact Match - Select this option to display only routes that are an

exact match.

○ L2VPN Prefix - Enter the Layer 2 VPN prefix here.

• Filter List - Specifies to display BGP routing information related to the

specified filter list.

○ Filter List Name - Enter the name of the filter list here. This name can

be up to 16 characters long.

○ L2VPN Prefix - Enter the Layer 2 VPN prefix here.

• Inconsistent AS - select this option to display the BGP routes that have the

same prefix and different AS path origins.

○ L2VPN Prefix - Enter the Layer 2 VPN prefix here.

• Quote Regexp - Select this option to display BGP routes that matches the

regular expression.

○ Regexp - Enter the regular expression here. This can be up to 80

characters long.

○ L2VPN Prefix - Enter the Layer 2 VPN prefix here.

Click the Find button to locate a specific entry based on the information selected/entered.

After clicking the Please Select button, the following page will appear.

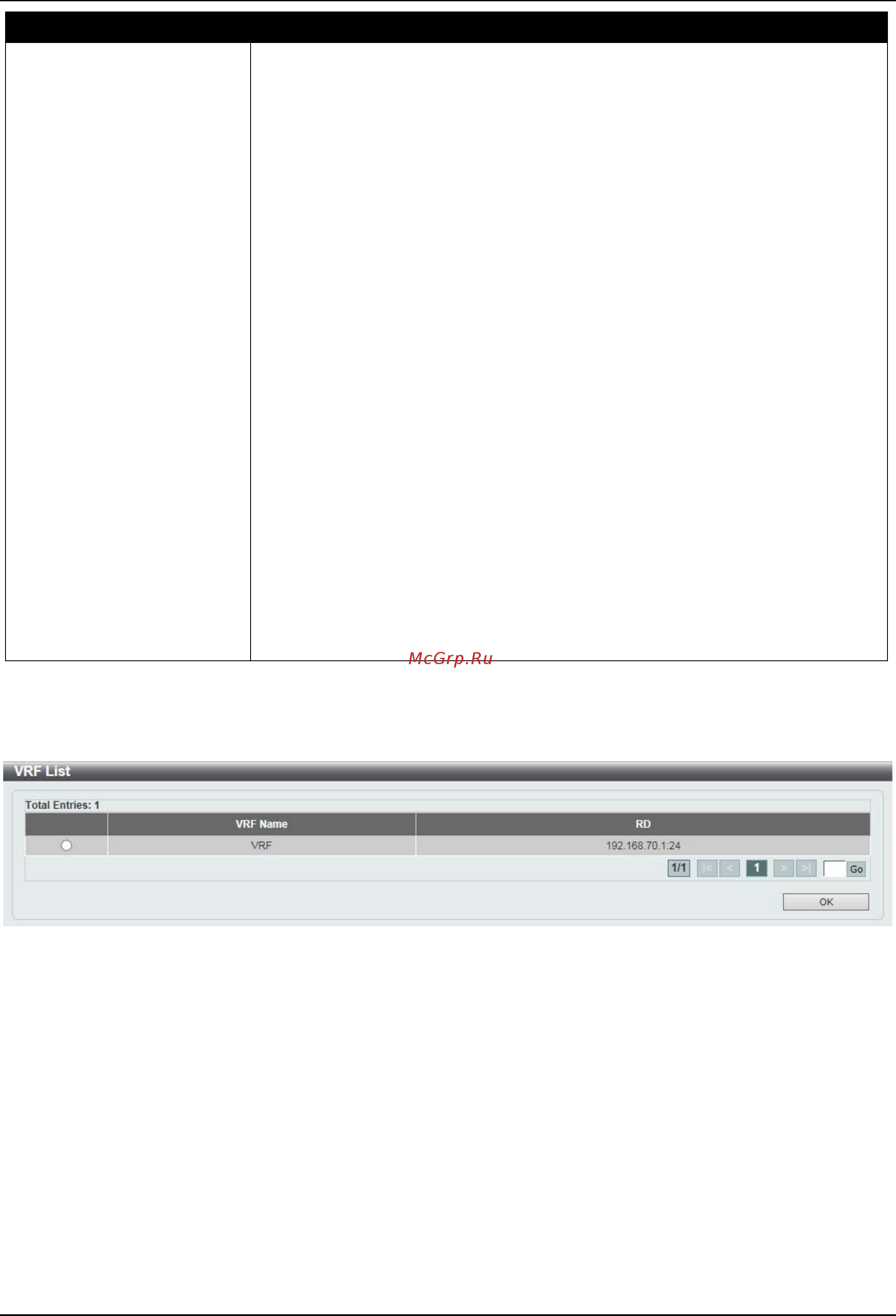

Figure 6-184 BGP Routing Table (Please Select) Window

Select the VRF entry and click the OK button to use the selected VRF entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

BGP Labels Table

This window is used to view the BGP labels table.
