The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit that will be used for this configuration here.

From Port - To Port

Select the appropriate port range used for the configuration here.

Port VLAN

Select this option to enable or disable sending the port VLAN ID TLV. The Port

VLAN ID TLV is an optional fixed length TLV that allows a VLAN bridge port to

advertise the port VLAN ID (PVID) that will be associated with untagged or priority

tagged frames.

Protocol VLAN

Select this option to enable or disable sending the Port and Protocol VLAN ID

(PPVID) TLV. Enter the VLAN ID in PPVID TLV.

VLAN Name

Select this option to enable or disable sending the VLAN name TLV. Enter the ID

of the VLAN in the VLAN name TLV.

Protocol Identity

Select this option to enable or disable sending the Protocol Identity TLV and the

protocol name. Options for protocol name to choose from are None, EAPOL,

LACP, GVRP, STP, and All.

Click the Apply button to accept the changes made.

LLDP Dot3 TLVs Settings

The LLDP Dot3 TLVs Settings page is used to enable or disable outbound LLDP advertisements for IEEE 802.3

organizationally unique TLVs.

To view the following window, click L2 Features > LLDP > LLDP Dot3 TLVs Settings, as shown below:

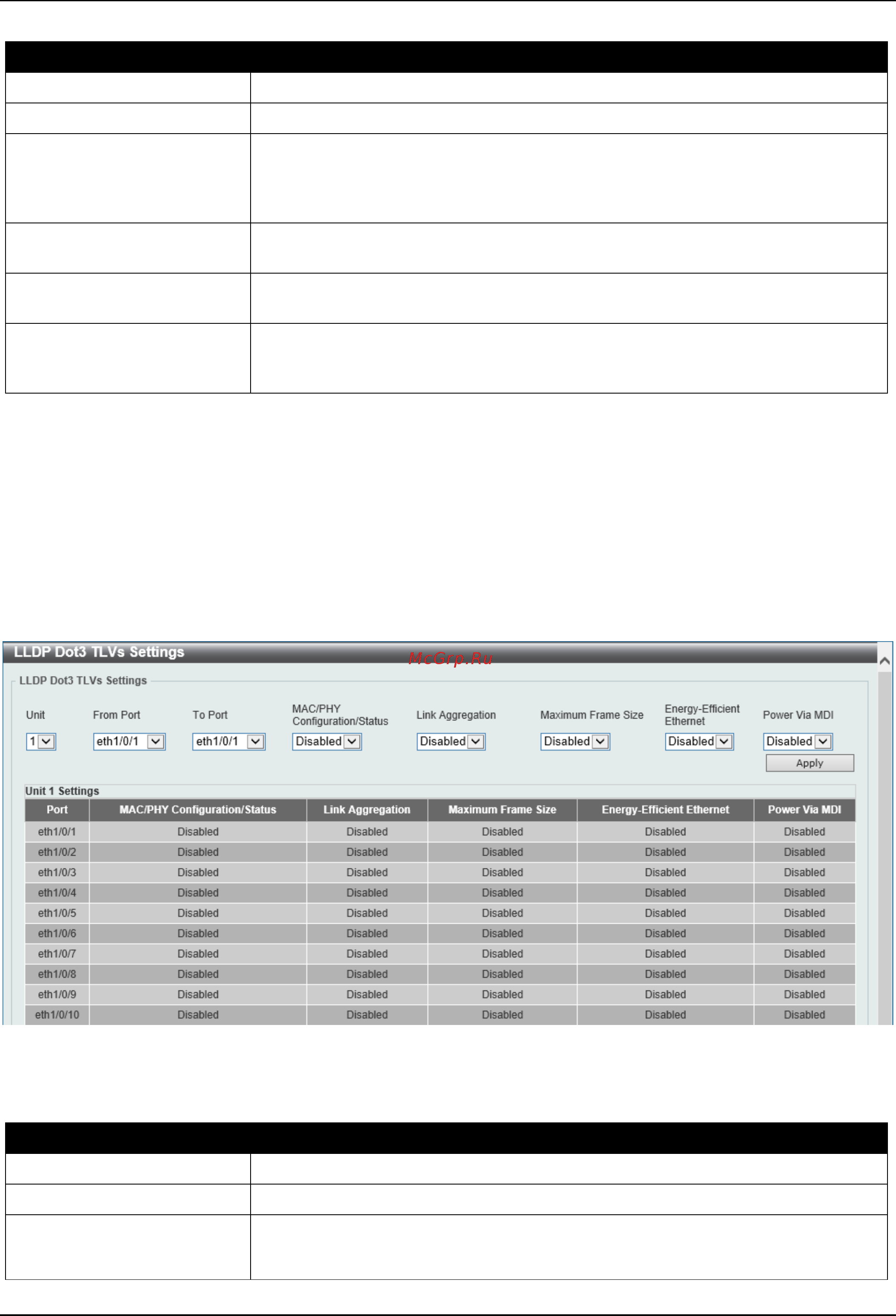

Figure 5-100 LLDP Dot3 TLVs Settings Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit that will be used for this configuration here.

From Port - To Port

Select the appropriate port range used for the configuration here.

MAC/PHY

Configuration/Status

Select this option to enable or disable the MAC/PHY Configuration/Status TLV to

send. The MAC/PHY Configuration/Status TLV is an optional TLV that identifies

(1) the duplex and bit-rate capability of the sending IEEE 802.3 LAN node, and (2)
