DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

144

To view the following window, click L2 Features > VLAN > Asymmetric VLAN, as shown below:

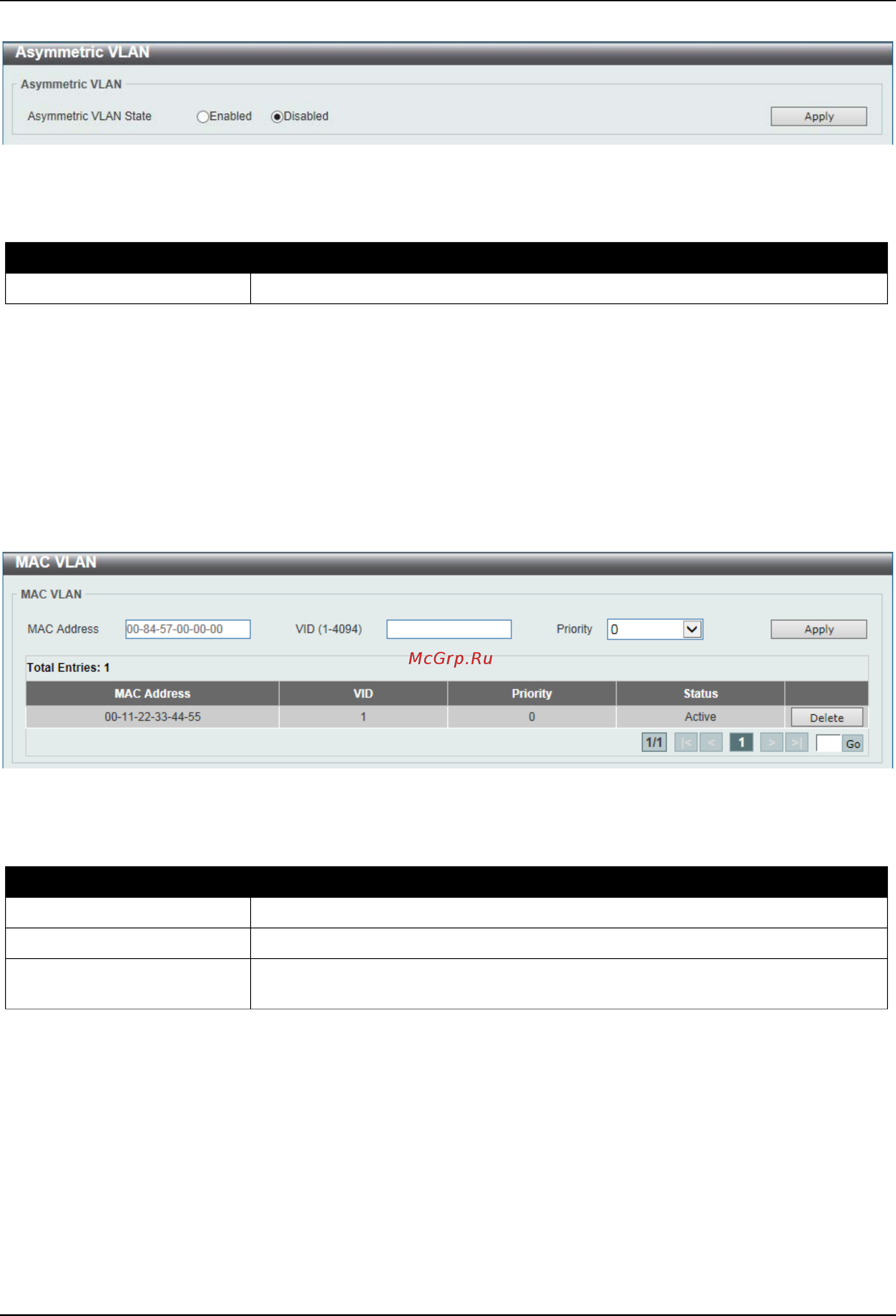

Figure 5-17 Asymmetric VLAN Window

The fields that can be configured are described below:

Parameter Description

Asymmetric VLAN State

Select to enable or disable the asymmetric VLAN feature here.

Click the Apply button to accept the changes made.

MAC VLAN

This window is used to display and configure the MAC-based VLAN information. When a static MAC-based VLAN

entry is configured, the VLAN operating on the port will be changed.

To view the following window, click L2 Features > VLAN > MAC VLAN, as shown below:

Figure 5-18 MAC VLAN Window

The fields that can be configured are described below:

Parameter Description

MAC Address

Enter the unicast MAC address.

VID

Enter the VLAN ID that will be used.

Priority

Select the priority that is assigned to untagged packets. This value is between 0

and 7.

Click the Apply button to accept the changes made.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

VLAN Interface

This window is used to display and configure the VLAN interface settings.
