Parameter Description

Select the Default option specify all the interfaces as passive interfaces.

Click the Apply button to accept the changes made.

Click the Delete button to delete the specified entry.

Click the Find button to locate a specific entry based on the information entered.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

OSPFv3 Area Settings

This window is used to display and configure the OSPFv3 area settings.

To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 Area Settings, as shown below:

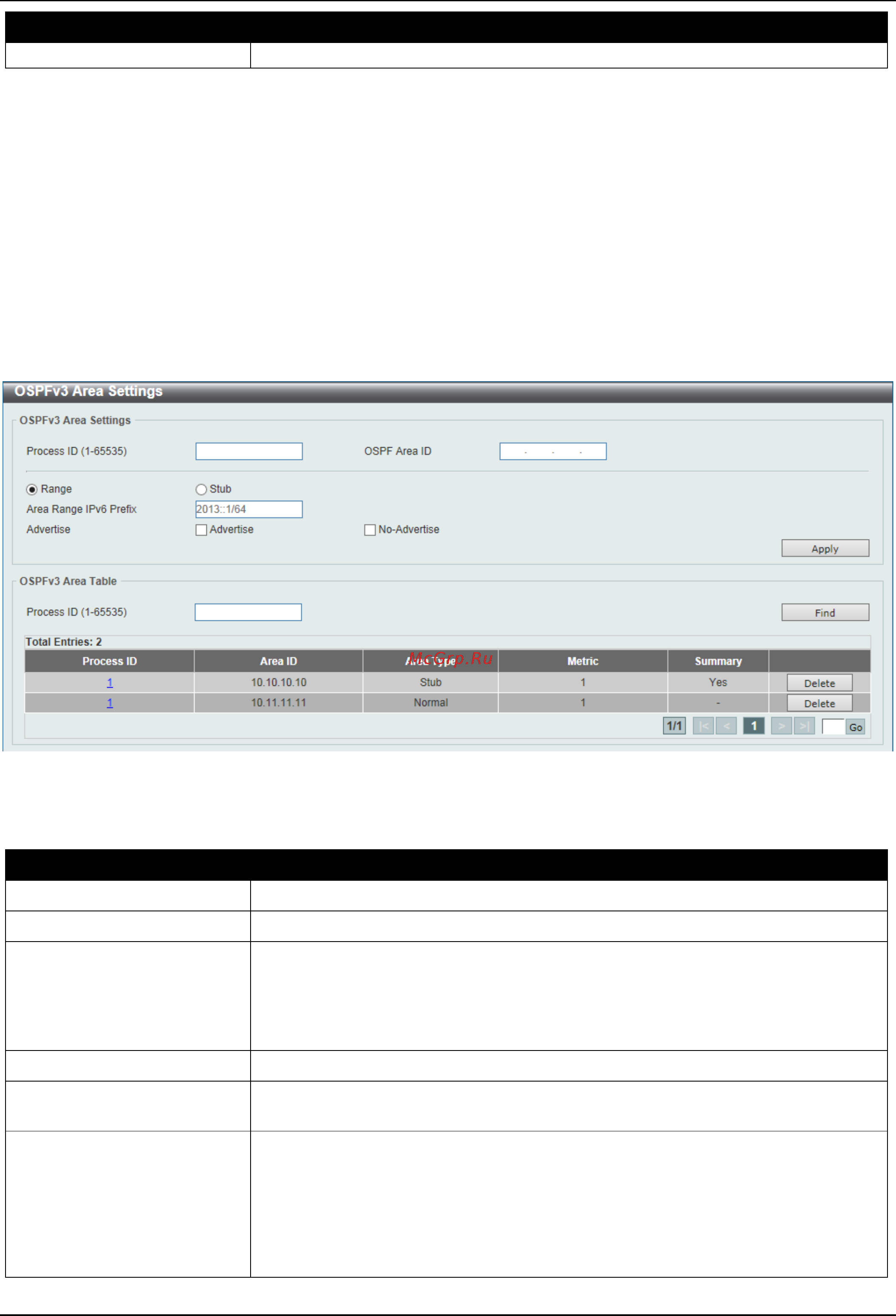

Figure 6-72 OSPFv3 Area Settings Window

The fields that can be configured in OSPFv3 Area Settings are described below:

Parameter Description

Process ID

Enter the process ID of the OSPF area used here. The range is from 1 to 65535.

OSPF Area ID

Enter the OSPF area ID used here. It can be specified as an IPv4 address.

Range

Select this option to consolidate and summarize routes at an area boundary. This

feature is used only with ABRs. It is used to consolidate or summarize routes for

an area. The result is that a single summary route is advertised to other areas by

the ABR. Routing information is condensed at area boundaries. External to the

area, a single route is advertised for each address range.

Stub

Select this option to define an area as a Stub area.

Area Range IPv6 Prefix

After selecting the Range option, enter the OSPF area range IPv6 prefix and

prefix length here.

Advertise

After selecting the Range option, select the advertise option here. Options to

choose from are Advertise and No-Advertise.

• Advertise - Specifies to advertise and generate an inter-area prefix LSA for

the specified address range.

• No-Advertise - Specifies to set the status to Do-Not-Advertise for the

specified address range. The inter-area prefix LSA is suppressed, and the
