After clicking the Show Detail link for Peers Via Pseudowires, for example, the following page will appear.

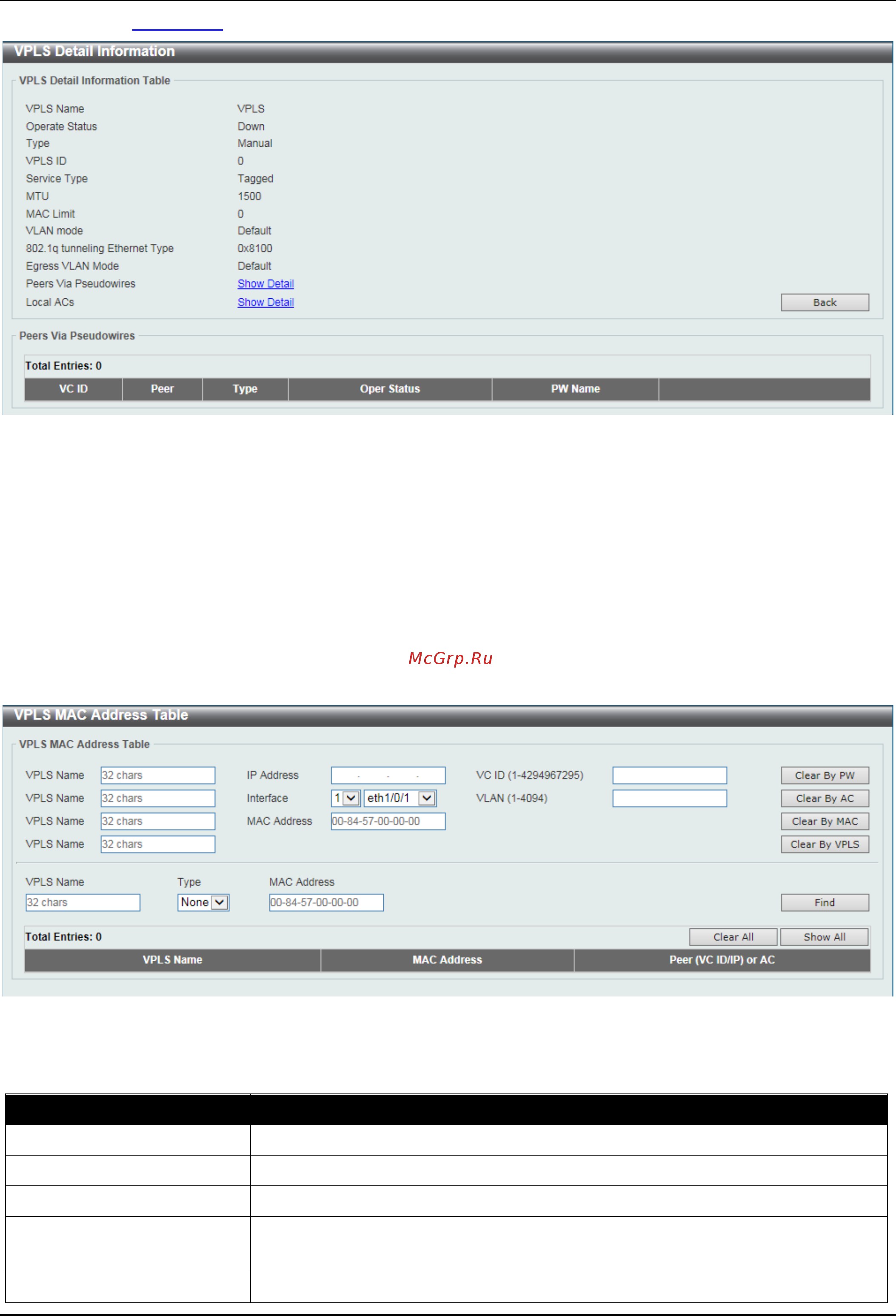

Figure 12-8 VPLS Settings (Show Detail, Show Detail) Window

Click the Back button to return to the previous window.

VPLS MAC Address Table

This window is used to clear and display VPLS MAC address information.

To view the following window, click MPLS L2VPN > VPLS MAC Address Table, as shown below:

Figure 12-9 VPLS MAC Address Table Window

The fields that can be configured are described below:

Parameter Description

VPLS Name

Enter the VPLS instance name here. This name can be up to 32 characters long.

IP Address

Enter the LSR ID that is used to identify the PE to which the peer belongs to here.

VC ID

Enter the PW VC ID here. The range is from 1 to 4294967295.

Interface

Select the Switch unit ID that will be used here.

Select the port that will be used here.

VLAN

Enter the service VLAN ID here. The range is from 1 to 4094.
