DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
474
Parameter Description
Action
Select the action that will be taken here. Options to choose from are Add and
Delete.
Type
Select the ACL type here. Options to choose from are IP ACL, IPv6 ACL, MAC
ACL, and Expert ACL.
ACL Name
Enter the ACL name here. This name can be up to 32 characters long. Click the
Please Select button to select an existing ACL from the list.
Click the Apply button to accept the changes made.
After clicking the Please Select button, the following window will appear:

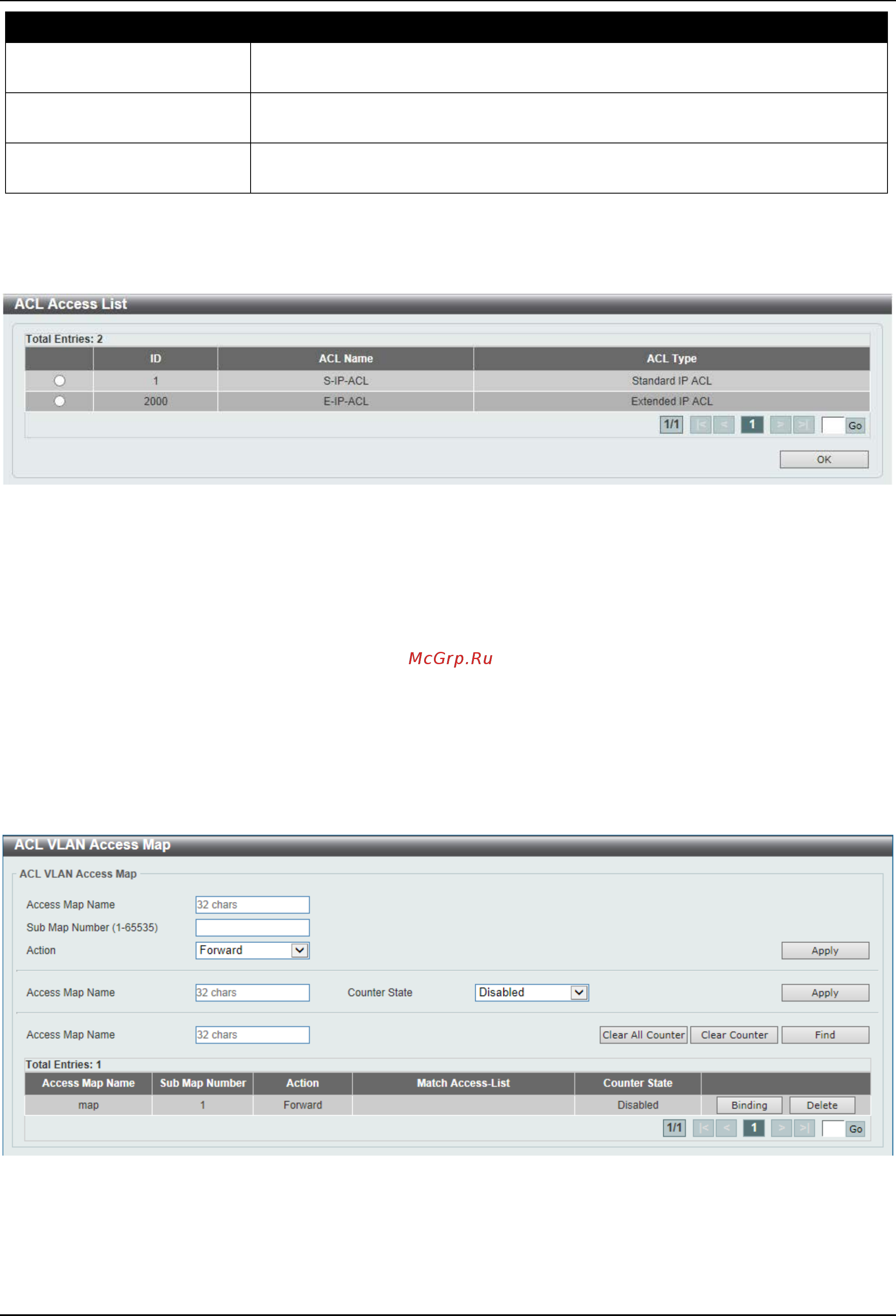

Figure 8-18 ACL Interface Access Group (Please Select) Window
Select the radio button next to the entry to use that ACL in the configuration.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the OK button to accept the selection made.
ACL VLAN Access Map
This window is used to display and configure the ACL VLAN access map settings.
To view the following window, click ACL > ACL VLAN Access Map, as shown below:
Figure 8-19 ACL VLAN Access Map Window
