To view the following window, click QoS > Advanced Settings > Policy Binding, as shown below:

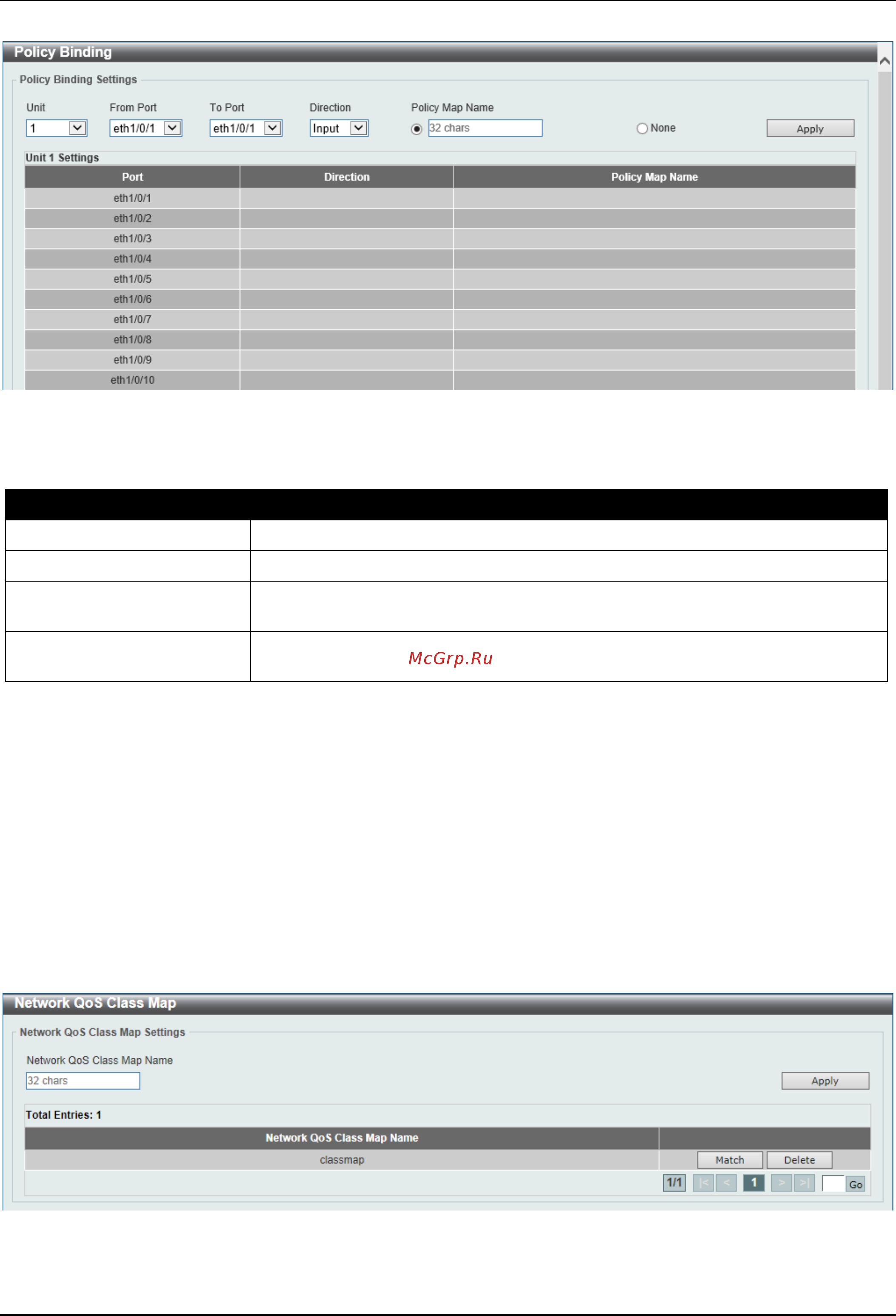

Figure 7-20 Policy Binding Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the Switch unit that will be used for this configuration here.

From Port - To Port

Select the range of ports that will be used for this configuration here.

Direction

Select the direction option here. Options to choose from are Input and Output.

Input specified ingress traffic and output specifies egress traffic.

Policy Map Name

Enter the policy map name here. This name can be up to 32 characters long.

Select the None option to not tie a policy map to this entry.

Click the Apply button to accept the changes made.

QoS PFC

Network QoS Class Map

This window is used to display and configure the network Quality of Service (QoS) Priority-based Flow Control (PFC)

class map settings.

To view the following window, click QoS > QoS PFC > Network QoS Class Map, as shown below:

Figure 7-21 Network QoS Class Map Window
