DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
382
After clicking the Please Select button, the following page will appear.

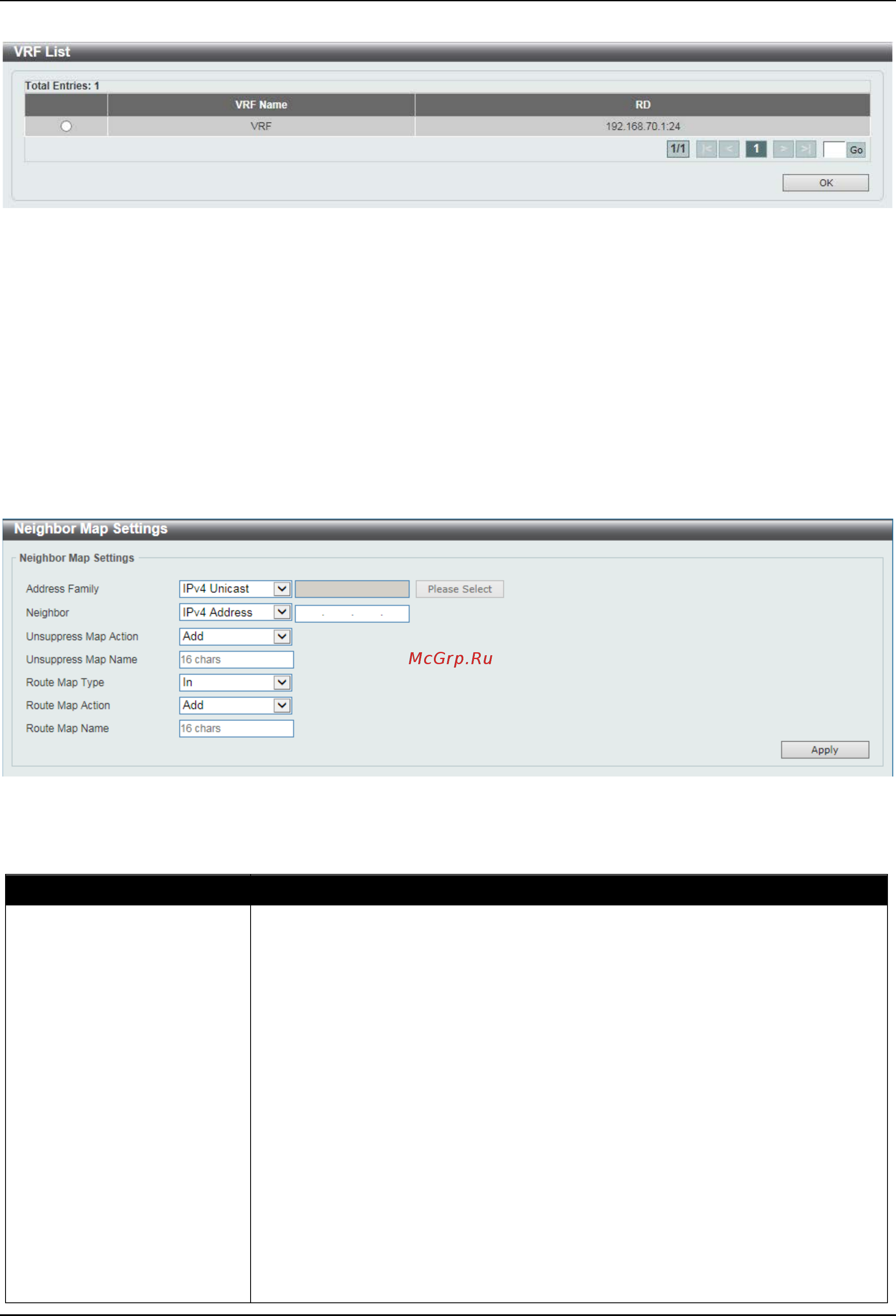

Figure 6-195 Neighbor Shutdown (Please Select) Window
Select the VRF entry and click the OK button to use the selected VRF entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Neighbor Map Settings
This window is used to display and configure the BGP neighbor map settings.
To view the following window, click L3 Features > BGP > BGP Neighbor > Neighbor Map Settings, as shown below:
Figure 6-196 Neighbor Map Settings Window
The fields that can be configured are described below:
Parameter Description
Address Family
Select the address family that will be used here. Options to choose from are:
• IPv4 Unicast - Specifies to configure the BGP neighbor map settings related
to the IPv4 unicast address family.
• IPv4 VRF - Specifies to configure the BGP neighbor map settings related to
the VRF instance in the IPv4 address family. Enter the name of the VRF
instance here. This name can be up to 12 characters long. Alternatively, click
the Please Select button to select a pre-configured VRF instance that will be
used here.
• IPv4 Multicast - Specifies to configure the BGP neighbor map settings
related to the IPv4 multicast address family.
• L2VPN VPLS - Specifies to configure the BGP neighbor map settings related
to the Layer 2 VPN VPLS address family.
• VPNv4 - Specifies to configure the BGP neighbor map settings related to the
VPNv4 address family.
• IPv6 Unicast - Specifies to configure the BGP neighbor map settings related
to the IPv6 unicast address family.
