DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

600

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

MPLS QoS Settings

This window is used to display and configure the MPLS QoS settings.

To view the following window, click MPLS > MPLS QoS Settings, as shown below:

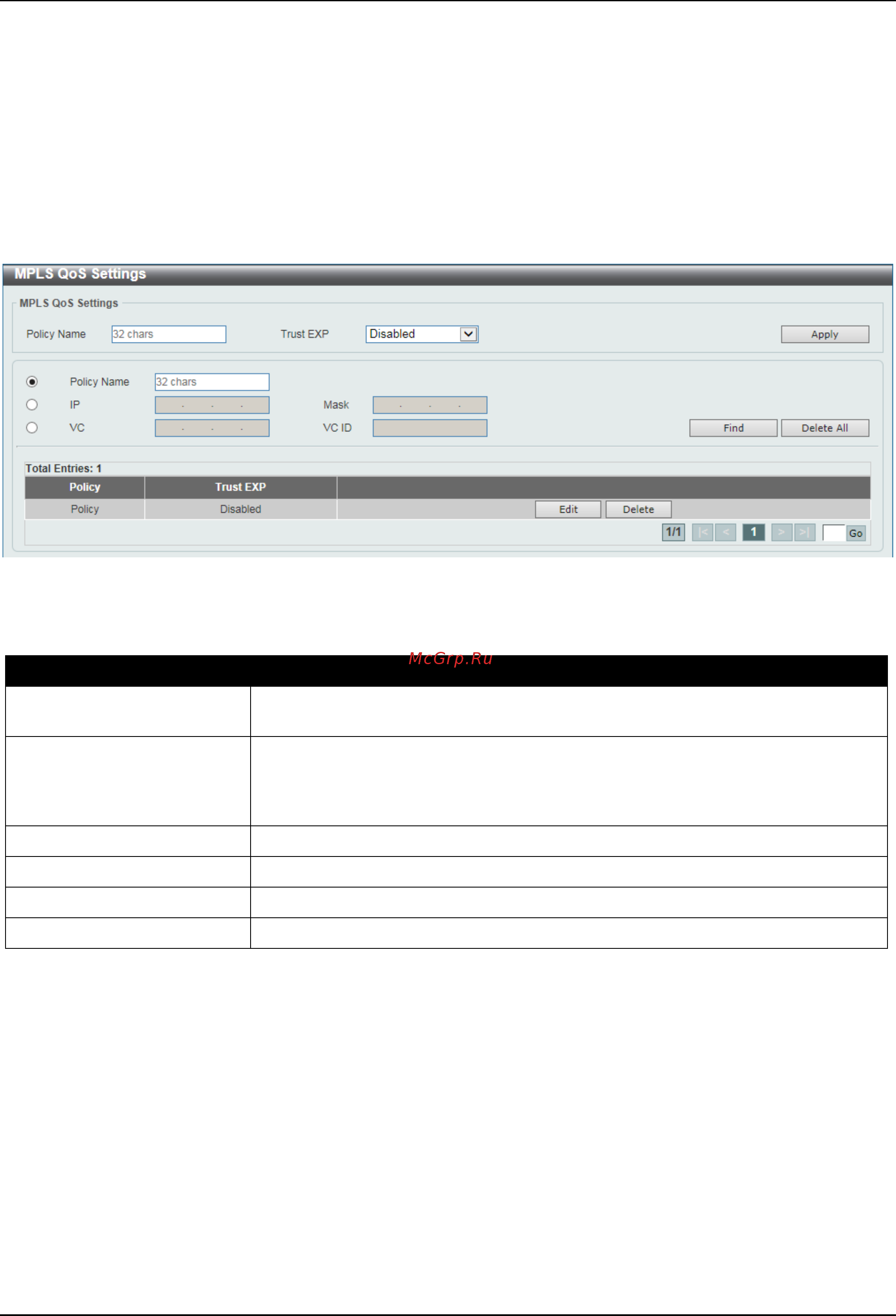

Figure 11-17 MPLS QoS Settings Window

The fields that can be configured are described below:

Parameter Description

Policy Name

Enter the MPLS QoS policy name here. This name can be up to 32 characters

long. The MPLS QoS policy can be applied to MPLS FECs.

Trust EXP

Select to enable or disable the trust EXP feature here. If the EXP is trusted, the

matched packets are scheduled according to the EXP to the priority mapping of

the MPLS QoS policy. Otherwise, the packets are scheduled according to the

802.1p priority.

Select and enter the FEC IP address here associated with the QoS policy.

Mask

Select and enter the FEC subnet mask here associated with the QoS policy.

Select and enter the FEC VC address here associated with the QoS policy.

VC ID

Select and enter the FEC VC ID here associated with the QoS policy.

Click the Apply button to accept the changes made.

Click the Find button to locate a specific entry based on the information entered.

Click the Delete All button to delete all the entries associated with the information selected/entered.

Click the Edit button to configure more detailed settings related to the specific entry.

Click the Delete button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
